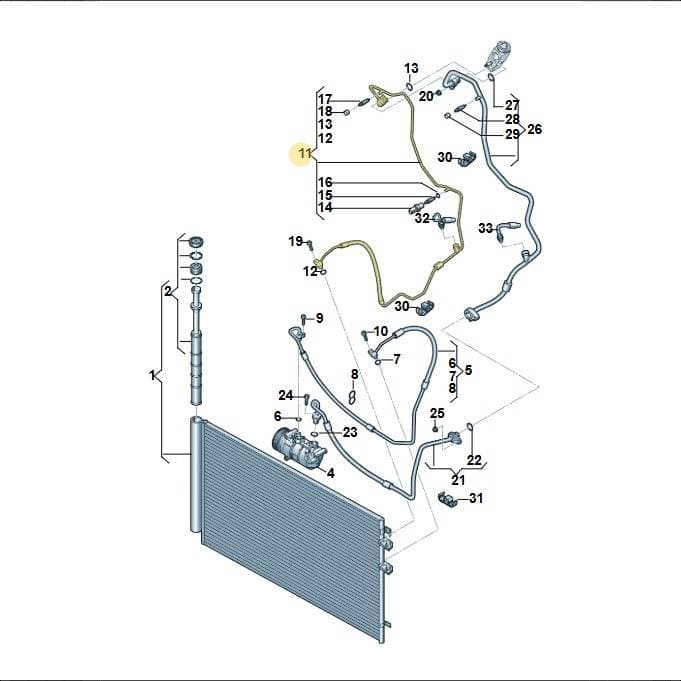

Number 11 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 7C0820741M. This line transports refrigerant within the vehicle's air conditioning system. It is located as part 11 in the air conditioning assembly diagram. The line has a length of 0.91 meters and weighs 0.282 kg. Genuine OEM refrigerant lines ensure precise fitment and material integrity to prevent leaks and maintain optimal system performance.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 91 × 60 × 19 cm
- Shipping weight
- 0.28 kg
Parts diagram & fitment
2 vehiclesRefrigerant Line — locate 7C0820741M Volkswagen Refrigerant Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(28)
- 1Capacitor 2N0820411
- 1Capacitor 2N0820411A
- 2Insert 2N0298403
- 5Line 7C0816721F
- 5Line 7C0816721G
- 6Seal Ring 4E0260749A
- 7Seal Ring 3D0260749C
- 8Ring N10843601
- 9Screw N10414402
- 10Bolt N10347103
- 11Line 7C0820741F
- 11Line 7C0820741K
- 11Line 7C0820741P
- 12Seal Ring 4D0260749B
- 14Sender 4H0959126B
- 15Valve 8A0820855AA
- 16Seal Ring 7H0820896
- 17Valve 8E0820855
- 18Part 3C0820581
- 20Collar Nut N01508210
- 21Line 7C0816744B
- 22Seal Ring 4E0260749B
- 23Seal Ring 8E0260749C
- 26Line 7C0820743D
- 26Line 7C0820743F
- 29Part 3C0820231
- 30Clip 7E0820774A
- 31Bracket 8E0260759AD
Diagrams & fitment data powered by oemdiagrams.com
7C0820741M Volkswagen Refrigerant Line | Genuine OEM is fitted on: MAN TGE 55 2016-2021; MAN TGE 35 2016-2021.
