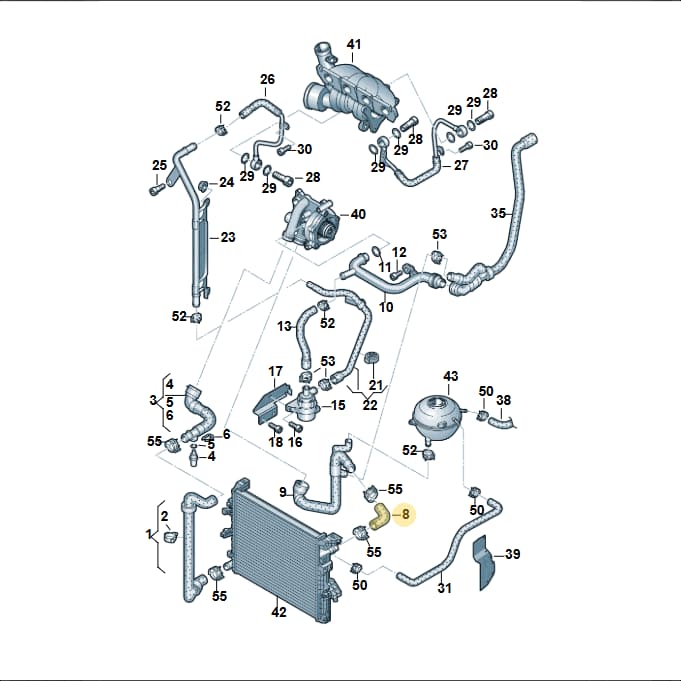

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Coolant Hose, part number 7E0121101D. This hose transports engine coolant between components within the engine cooling system, often connecting to the radiator. Weighing approximately 0.08 kg, it is designed for specific routing. Using genuine OEM coolant hoses ensures correct routing geometry, resistance to heat and pressure, and prevents leaks in the cooling system.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 40093100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 15.5 × 65.5 × 4 cm
- Shipping weight
- 0.08 kg
Parts diagram & fitment
6 vehiclesCoolant Hose — locate 7E0121101D Volkswagen Coolant Hose | Radiator Connection in the official exploded view and explore the surrounding assembly.
Parts in this assembly(34)
- 1Hose 7E0122051F
- 2Clip 2D0121129A
- 3Hose 7E0122051G
- 4Sender 05C919501
- 5Seal Ring N90316801
- 6Spring 032121142
- 9Hose 7E0122101
- 10Water Pipe 06H121065D
- 11Seal Ring WHT006407
- 12Bolt N10405604
- 13Hose 06H121057AB
- 15Pump 1K0965561B
- 16Screw N91096901
- 17Bracket 06H121079G
- 18Screw N90638102
- 21Ring N10767501
- 22Hose 06H121057AL
- 22Hose 06H121057BC
- 23Water Pipe 06J121075L
- 23Water Pipe 06J121075N
- 24Collar Nut N01508210
- 25Bolt N10524202
- 26Water Pipe 06J121492N
- 27Water Pipe 06J121497L
- 27Water Pipe 06J121497T
- 28Screw 06A145541J
- 29Seal Ring N0138149
- 30Screw N10619201
- 31Hose 7E0121447
- 39At Heat Reflective Mat Heat Reflective Mat Heat 7E0121653
- 50Clamp N90686701
- 52Clamp N90686902
- 53Clamp N90687001
- 55Clamp N90687201
Diagrams & fitment data powered by oemdiagrams.com
7E0121101D Volkswagen Coolant Hose | Radiator Connection is fitted on: transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
