7E0820721B Refrigerant Hose
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

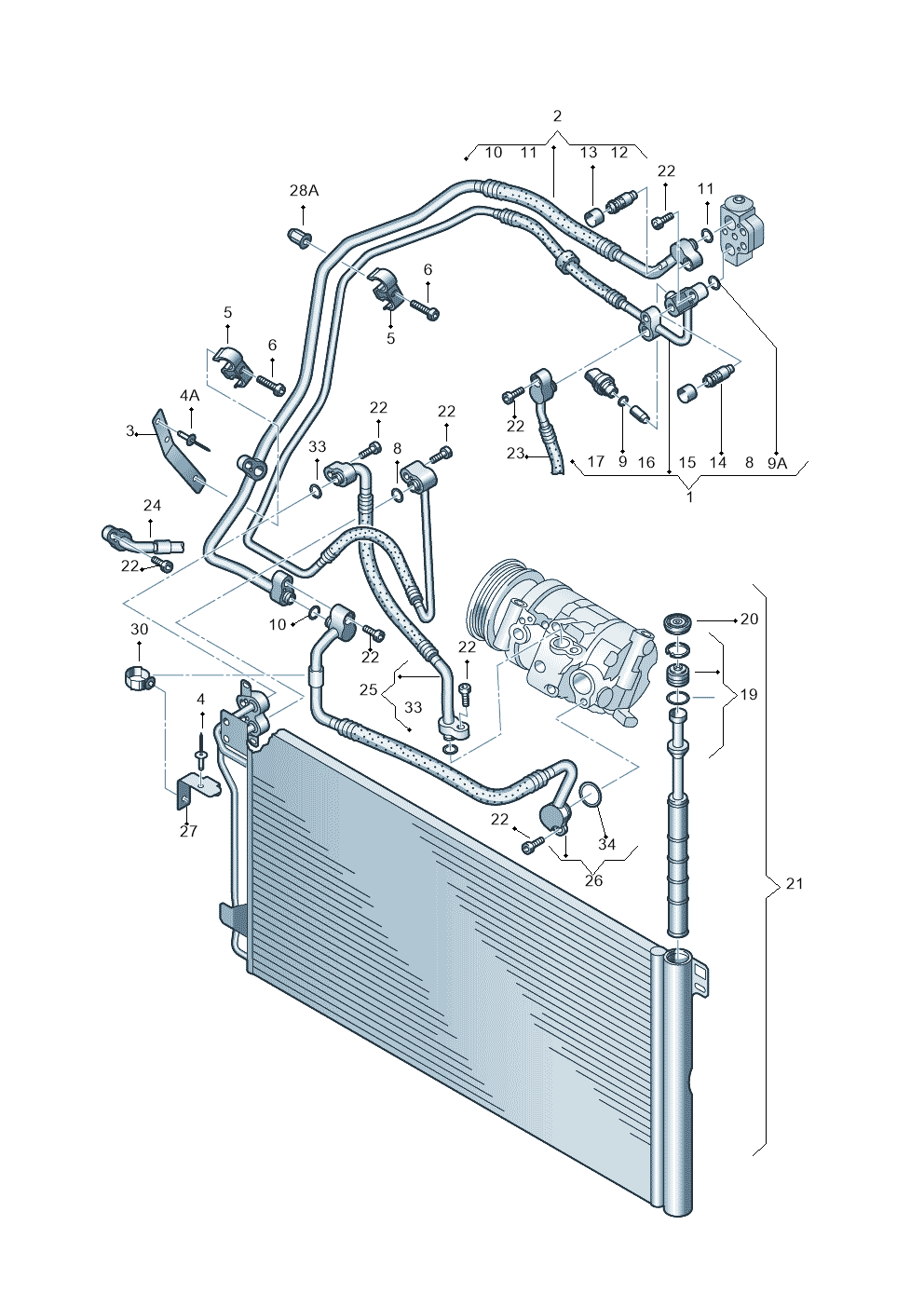

5 vehiclesRefrigerant Hose — locate Refrigerant Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Pipe 7E1820741C
- 1Pipe 7E1820741F
- 1Pipe 7E1820741B
- 2Hose 7E1820743C
- 2Hose 7H1820743AA
- 2Hose 7H1820743AB
- 2Hose 7H1820743T
- 3Bracket 7H0820791B
- 4Screw N01396921
- 4APop Rivet N90437401
- 5Clip 7E0820775
- 6Bolt N10704501
- 7Part N90252104
- 8Seal Ring 3D0260749C
- 9Seal Ring 8E0260749
- 10Seal Ring 4E0260749B
- 11Seal Ring 7H0820898
- 12Valve 8E0820855
- 13Part 3C0820231
- 15Part 3C0820581
- 16Part 7D0820855
- 17Sensor 1K0959126D
- 19Insert 4H0298403
- 20Part 7L0820231A
- 21Condenser 7E0820411B
- 22Screw N10414402
- 26Pipe 7E0820744C
- 27Bracket 7H0820770C
- 28Part 811807577C
- 29Screw N10657201
- 30Clamp N0206474
- 33Seal Ring 4E0260749A
- 34Seal Ring 8E0260749C
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. |
|---|---|---|
| transp. caravelle | 2011-2015 | 25 |
| transp. dropside | 2011-2015 | 25 |
| transp. caravelle | 2009-2011 | 25 |
| transp. dropside | 2009-2011 | 25 |
| California Camper | 2009-2011 | 25 |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Hose is fitted on: transp. caravelle 2011-2015; transp. dropside 2011-2015; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011.
