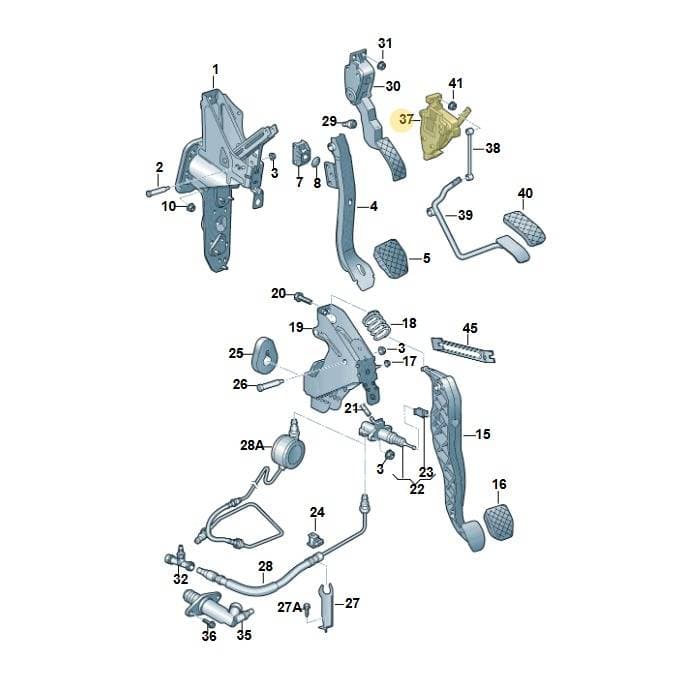

Number 37 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Protection Sleeve, part number 7H2721503D. This sleeve is designed to insulate and protect components from excessive heat generated by nearby parts. It is located in the pedal assembly, identified as part 37 in the diagram. Genuine OEM parts ensure proper thermal management and component longevity.
Technical details
- Category
- Engine
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 14.3 × 9.6 × 11.1 cm
- Shipping weight
- 0.38 kg
Parts diagram & fitment
13 vehiclesAccelerator Pedal With Electronic Module — locate 7H2721503D Volkswagen Heat Protection Sleeve | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 7H2721503E — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(48)
- 1BracketRight7H2721115
- 1BracketLeft7H1721115
- 2Bolt 7H0721108
- 3Collar Nut N02300313
- 4PedalLeft7H1723143
- 4PedalRight7H2721143
- 4PedalRight7H2723143
- 4PedalLeft7H1721143
- 5Ap Cap For Foot Brake Pedal Cap For Foot Brake 4D1721173
- 5Ap Cap For Foot Brake Pedal Cap For Foot Brake 4D1723173
- 5Ap Cap For Foot Brake Pedal Cap For Foot Brake 8D1723173B
- 5Ap Cap For Foot Brake Pedal Cap For Foot Brake 8D1721173B
- 7Support 1J0721169A
- 8Bearing 1H0721179
- 15Foot PedalRight7H2721315
- 15Foot PedalLeft7H1721315A
- 16Part 8E0721173
- 17Ut Hexagon Nut Self-locking Hexagon Nut N01118312
- 18Spring 7H0721403
- 19Bracket 7H1721373
- 20Bolt N0195024
- 21Hose 857721453
- 22Master Cylinder 7H0721401B
- 23Support 7M0721357
- 24Clip 1K0721491A
- 25Seal 7H0721410
- 26Bolt 7H0721108A
- 27Bracket 7H0721491A
- 27ABolt N90440706
- 28PipeRight7H2721462C
- 28PipeRight7H2721478D
- 28PipeLeft7H1721462E
- 29Buffer 7H1721527
- 30Accel Ped 7H1721503E
- 30Accel Ped 7H1723503
- 30Accel Ped 7H1723503A
- 30Accel Ped 7H1721503D
- 32Breather 7M3721468C
- 35Slavecylin 7H0721261C
- 36Bolt N10240001
- 37Accel Ped 7H2721503E
- 37Accel Ped 7H2723503A
- 37Accel Ped 7H2723503D
- 38Coupl Rod 7H2721077A
- 39Acc Pedal 7H2723507A
- 39Acc Pedal 7H2721507A
- 40Ap Cap For Accelerator Pedal Cap For 7H2721647A
- 45Bracket 7H0721287
Diagrams & fitment data powered by oemdiagrams.com
7H2721503D Volkswagen Heat Protection Sleeve | Genuine OEM is fitted on: TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009.
