7H2820743D Refrigerant Hose
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

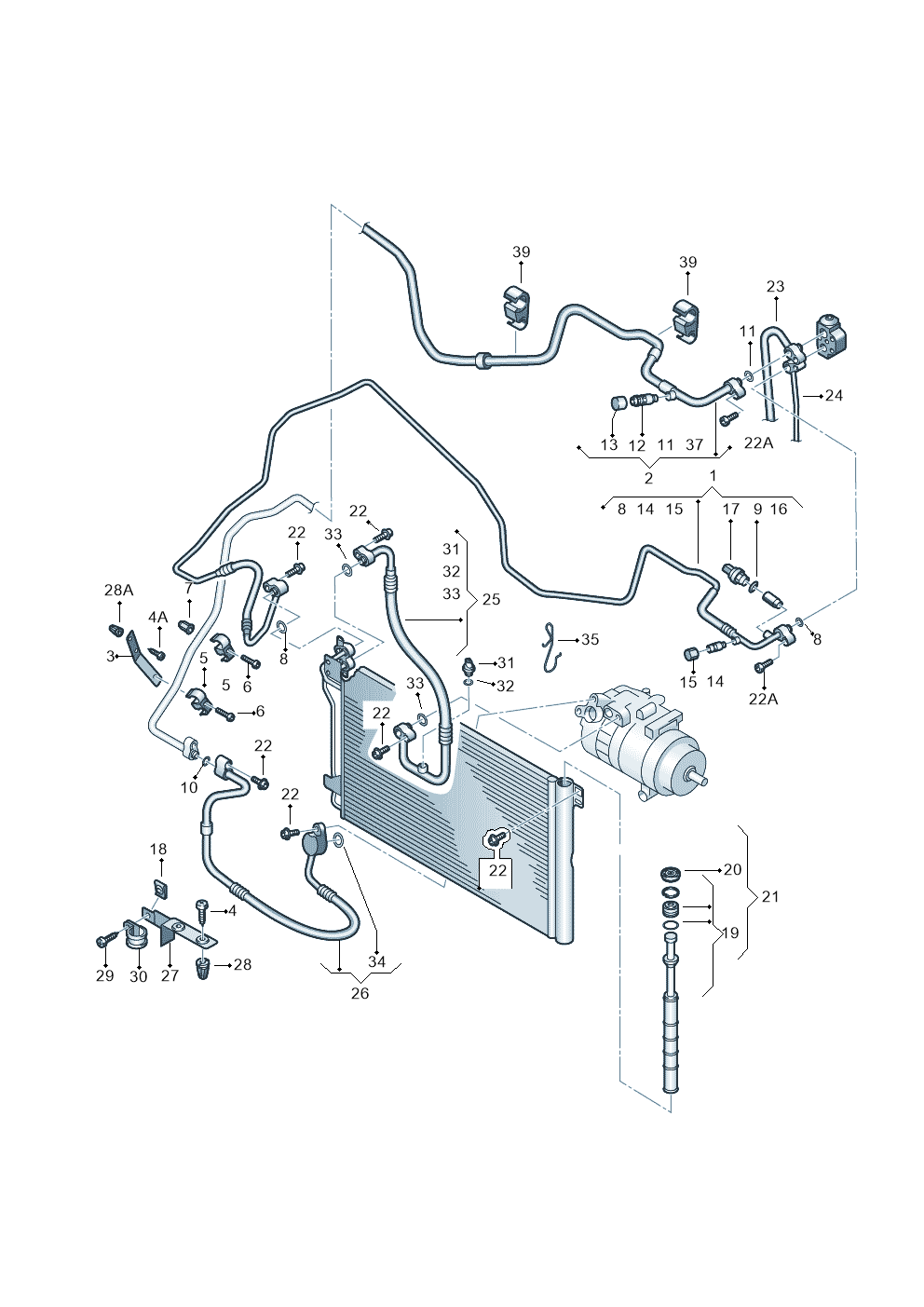

6 vehiclesRefrigerant Hose — locate Refrigerant Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Pipe 7H2820741H
- 2Part 7H2820743G
- 3Bracket 7H0820791B
- 4APop Rivet N90437401
- 5Clip 7H0820775A
- 6Screw N10431001
- 7Part N90252104
- 8Seal Ring 3D0260749C
- 9Seal Ring 8E0260749
- 10Seal Ring 4E0260749B
- 11Seal Ring 7H0820898
- 12Valve 8E0820855
- 13Part 3C0820231
- 15Part 3C0820581
- 16Part 7D0820855
- 17Sensor 1K0959126A
- 19Drier 7L0898191A
- 20Part 7L0820231A
- 21Condenser 7H0820411E
- 22Screw N10414402
- 22AScrew N90310002
- 25Hose 7H0820721R
- 25Part 7H0820721AE
- 26Pipe 7H0820744AD
- 26Pipe 7H0820744P
- 27Bracket 7H0820770B
- 28Part 811807577C
- 29Screw N0139771
- 30Clamp N0206474
- 31Temperature Sensor 7L6907543A
- 32Seal Ring 7H0820896
- 33Seal Ring 4E0260749A
- 34Seal Ring 8E0260749C
- 35Bracket 7H0422925G
- 36Bolt N10009104
- 37Seal Ring 7H0820749
- 39Bracket 8E0260759AD
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. |
|---|---|---|
| TRANSPORTER GESCHL. 08 | 2007- | 2 |
| CAMPMOBIL-T5 08 | 2007- | 2 |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 2 |
| CAMPMOBIL (T5) 07 | 2006-2007 | 2 |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 2 |
| CAMPMOBILE(T5) | 2004-2006 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Hose is fitted on: TRANSPORTER GESCHL. 08 2007-; CAMPMOBIL-T5 08 2007-; TRANSPORTER/4MOTION 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER/4MOTION 06 2005-2006; CAMPMOBILE(T5) 2004-2006.
