7L0820017M Refrigerant Pipe
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

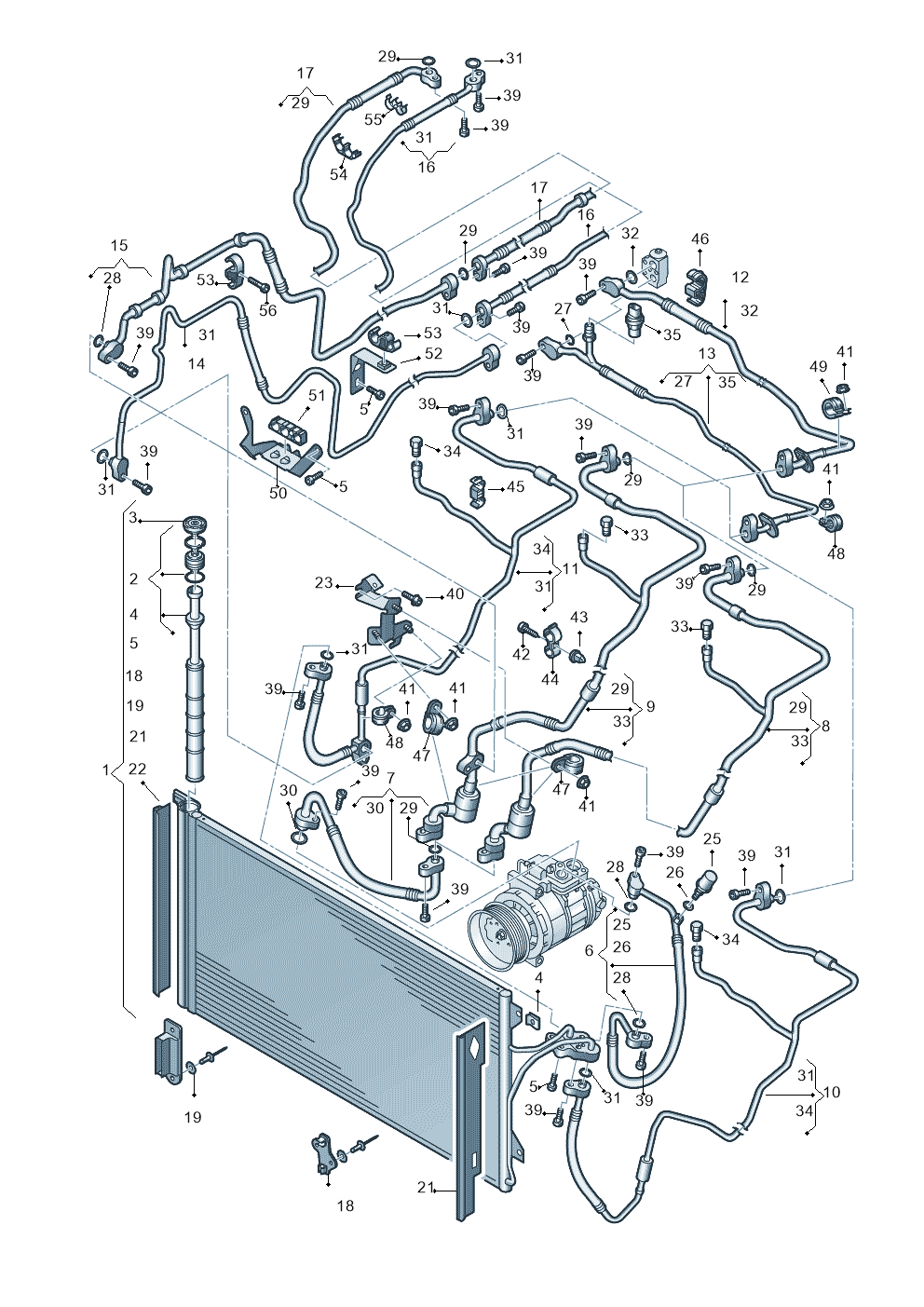

3 vehiclesRefrigerant Pipe — locate Refrigerant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Condenser 7L0820411G
- 2Drier 7L0898191A
- 3Part 7L0820231A
- 4Ret Washer N90254701
- 5Bolt N10451402
- 6Part 7L6820721AH
- 6Part 7L6820721AC
- 7Pipe 7L6820744AS
- 9Line 7L0820017N
- 10Hose 7L6820750P
- 11Hose 7L6820750AJ
- 12Line 7L0820743L
- 12Line 7L0820743K
- 13Line 7L0820741L
- 13Line 7L0820741K
- 14Line 7L6820722E
- 15Line 7L0820729F
- 16Line 7L0820725D
- 17Line 7L0820727C
- 18BracketLeft7L0498849
- 19BracketRight7L0498871
- 21Seal 7L0820132
- 22Seal 7L0820131
- 23Bracket 7L0820891
- 25Temperature Sensor 7L6907543A
- 26Seal Ring 7H0820896
- 27Seal Ring 8E0260749
- 28Seal Ring 4E0260749A
- 29Seal Ring 4E0260749B
- 30Seal Ring 8E0260749C
- 31Seal Ring 3D0260749C
- 32Seal Ring 7H0820898
- 33Valve 357820795H
- 34Valve 357820795J
- 35Sensor 1K0959126B
- 39Screw N10414402
- 40Screw N10551401
- 41Collar Nut N90175203
- 42Screw N0439391
- 43Part 811807577C
- 44Clip 1J0820774A
- 45Clip 7L0820245
- 46Bracket 8E0260759AD
- 47Clamp N0206474
- 48Clamp N0206208
- 49Clamp N0206406
- 50Bracket 7L0819605A
- 51Bracket 7L0820757
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Touareg 08> | 2007- | 8 | 1 | D0 | |
| Touareg | 2005-2006 | 8 | 1 | AYH | |
| Touareg | 2003-2005 | 8 | 1 | AYH |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Pipe is fitted on: Touareg 08> 2007-; Touareg 2005-2006; Touareg 2003-2005.
