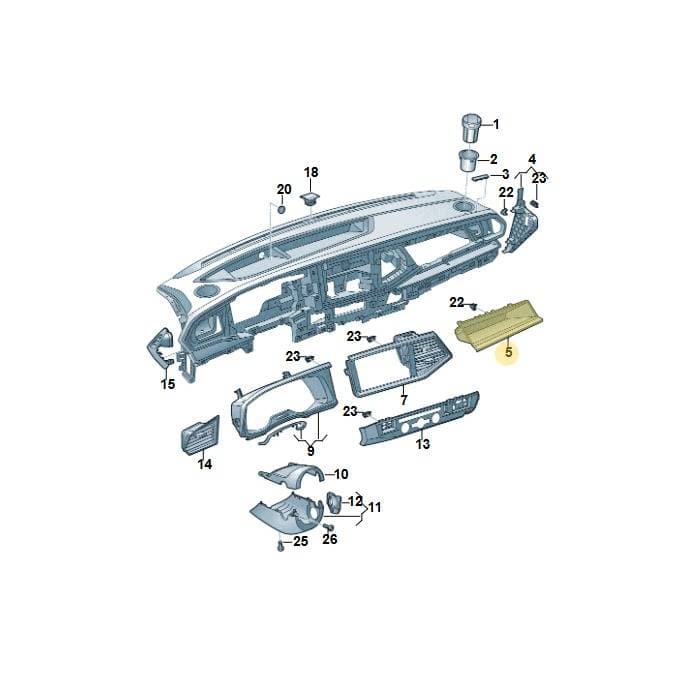

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Glove Box Assembly, part number 7L285709482V. This part functions as the storage compartment typically found below the dashboard. It is finished in Titan Black.
Technical details
- Category
- Mirrors & Glass
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44 × 20 × 16.5 cm
- Shipping weight
- 0.78 kg
Parts diagram & fitment
3 vehiclesTitan Black — locate 7L285709482V Volkswagen Glove Box | Titan Black 82V in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1SupportRight7L2857114
- 1Ashtray 7E0857951A
- 1SupportLeft7L1857114
- 2RetainerLeft7L1858613
- 2RetainerRight7L2858613
- 2RetainerRight7L2858614
- 2Cover 7LA858249A
- 2Cover 7E0858249E
- 2RetainerLeft7L1858614
- 3Trim 7LA857289
- 4Trim 7LA857720
- 4CoverLeft7LA858217
- 4Trim 7E0857720A
- 4CoverRight7LA858218
- 5Dash PanelRight7L2857094
- 5Dash PanelLeft7L1857094
- 7TrimLeft7L1857038
- 7TrimLeft7L1857038A
- 7TrimLeft7L1857038B
- 7TrimLeft7L1857038G
- 7TrimLeft7L1857038H
- 7TrimLeft7L1857038K
- 7TrimRight7L2857038
- 7TrimRight7L2857038A
- 7TrimRight7L2857038B
- 7TrimRight7L2857038F
- 7TrimRight7L2857038G
- 7TrimRight7L2857038H
- 8Part N90218403
- 9PanelRight7L2857053
- 9Panel 7LF857053
- 9Panel 7LF857054
- 9Panel 7LH857053
- 9Panel 7LH857054
- 9PanelLeft7L1857053
- 9Bolt N90993603
- 10Trim 7LA858560
- 11Trim 7LA858559
- 11Part N90698801
- 12Bolt N90698606
- 13TrimLeft7L1857200A
- 13TrimRight7L2857200A
- 13TrimRight7L2857212A
- 13Trim 7LF857212
- 13Trim 7LF857212A
- 13Trim 7LH857212
- 13Clip 3C8867190
- 13TrimLeft7L1857212A
Diagrams & fitment data powered by oemdiagrams.com
7L285709482V Volkswagen Glove Box | Titan Black 82V is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024.
