7P1820741BA Refrigerant Line
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

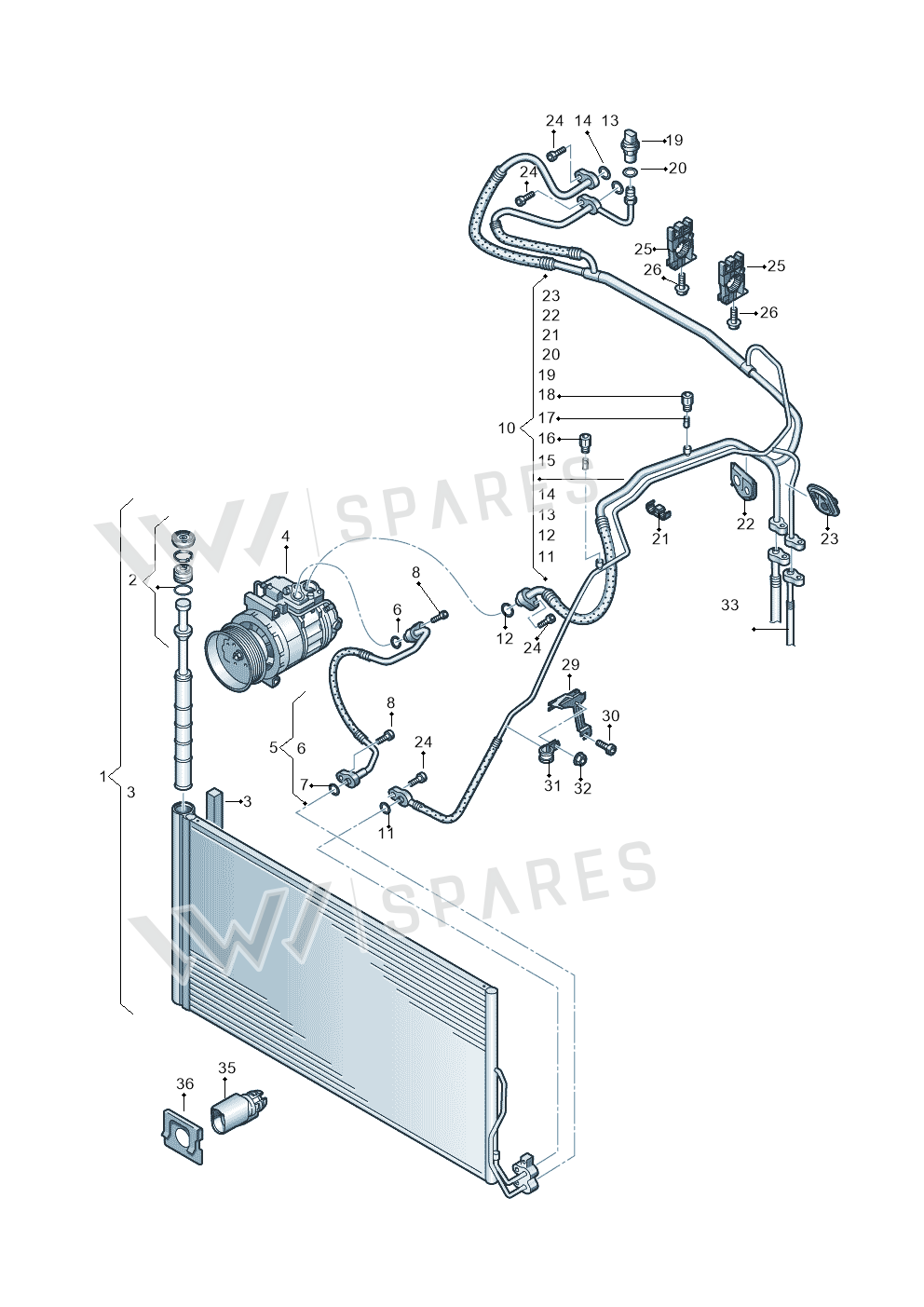

2 vehiclesRefrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Condenser 7P0820411A
- 2Drier 7P0898191
- 3Seal 7P0820877
- 5Line 7P0820721G
- 6Seal Ring 4E0260749A
- 8Screw N10414402
- 10Line 7P1820741CA
- 10Line 7P1820741BT
- 11Seal Ring 3D0260749C
- 12Seal Ring 8E0260749C
- 14Seal Ring 4E0260749B
- 15Valve 8E0820855
- 16Part 3C0820581
- 18Part 3C0820231
- 19Pressure 4H0959126A
- 21Bracket 8E0260759AD
- 22Grommet 7P0820667
- 23Grommet 7P0820668
- 26Bolt N91123501
- 29Bracket 7P0820893A
- 30Bolt N91096701
- 31Clamp N0206015
- 32Collar Nut N01508210
- 35Sensor 8Z0820535
- 36Bracket 6Q0971845C
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| touareg | 2012-2014 | 10 | 1 | 9AH | |
| touareg | 2010-2012 | 3 | 1 | PR:9AH | L0L |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Line is fitted on: touareg 2012-2014; touareg 2010-2012.
