8D1820103D Evaporator
- 8D1820103CNot stocked
Nov 1997 - 8D1820103DThis pageNot stocked
Nov 2008 - 8D1820103GDiscontinued
Feb 2022
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

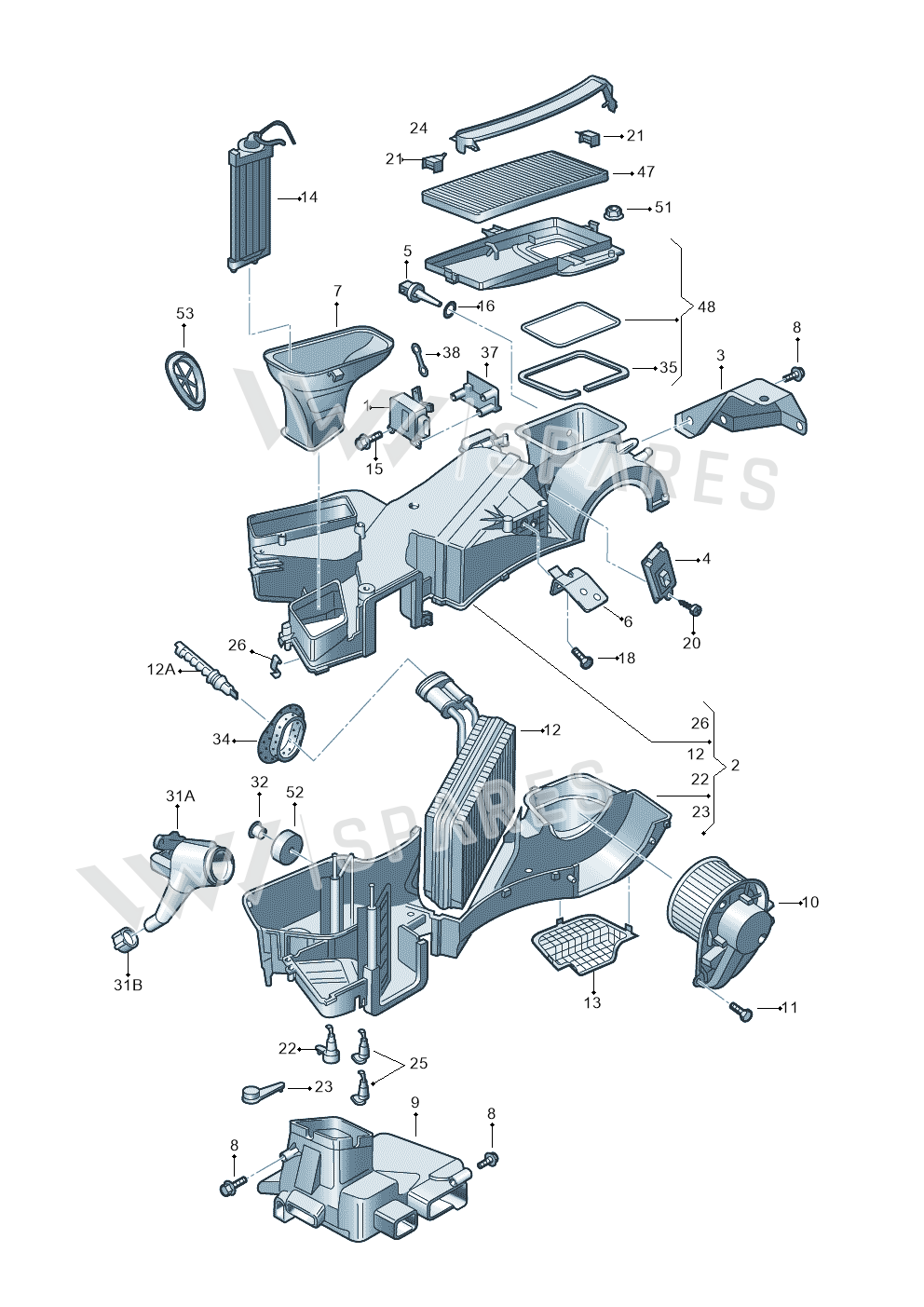

12 vehiclesEvaporator — locate Evaporator in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Motor 1J0907511
- 3Part 8D1819079A
- 3Part 8D2819079B
- 4Resistance 8D0959263
- 7Intermed 3B1819081C
- 8Bolt N90413004
- 9Vent 8D2819151A
- 9Vent 8D1819151A
- 10Blower 8D1820021A
- 12Evaporator 8D2820103F
- 12AValve 4B0820177
- 15Screw N10424101
- 17Part N0154581
- 18Screw N0140986
- 21Bracket 3B0819817
- 24Rainchan 8D2819979B
- 24Rainchan 8D1819979B
- 26Clip 321819059
- 27Seal 191819370
- 30Screw N0139655
- 31APipe 8D1260113B
- 31APipe 8D2260113B
- 31BValve 1H0820119
- 32Drain Tube 8D0260155
- 34Grommet 8D0820119A
- 41Part N90342503
- 47Dust Filt 8A0819439B
- 48Part 8D0819441E
- 49Clip 8D0819449
- 50Seal 8D0819165B
- 51Ut Hexagon Nut Self-locking Hexagon Nut N0230026
- 52Seal 8D0260115
- 53Bungs 8D0820992
Vehicle fitment table13
Europe (12)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| PASSAT/4MOTION/W8 | 2002-2005 | 12 | 1 |
| SUPERB 02> | 2001- | 12 | 1 |
| Passat/4Motion/W8 | 2000-2002 | 12 | 1 |
| AUDI RS4 AV. QU. | 2000-2001 | 12 | 1 |
| Audi A4/Avant | 1999-2001 | 12 | 1 |
| Audi A4/Av.qu. | 1999-2001 | 12 | 1 |
| Passat syncro/4Motion | 1998-2000 | 12 | 1 |
| Passat | 1997-2000 | 12 | 1 |
| Audi A4/Avant F8D-W-> | 1997-1998 | 12 | 1 |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 12 | 1 |
| Audi A4 F>8D-W-.. | 1995-1997 | 12 | 1 |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 12 | 1 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Evaporator is fitted on: PASSAT/4MOTION/W8 2002-2005; SUPERB 02> 2001-; Passat/4Motion/W8 2000-2002; AUDI RS4 AV. QU. 2000-2001; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; Passat syncro/4Motion 1998-2000; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997.
