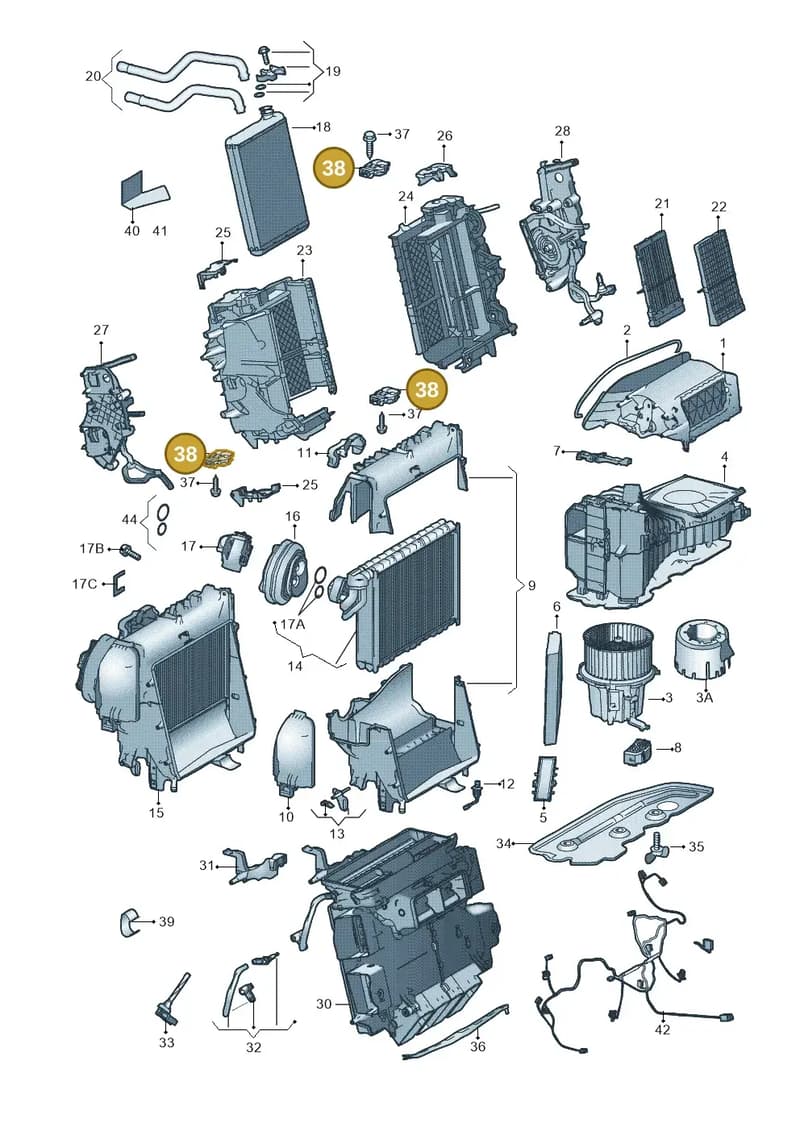

Number 38 marks the part’s position in this exploded view (Audi Q5 qu. 2.0 TDI (2012-2017)).
Other diagrams in the gallery may use a different number for the same part.
Product overview

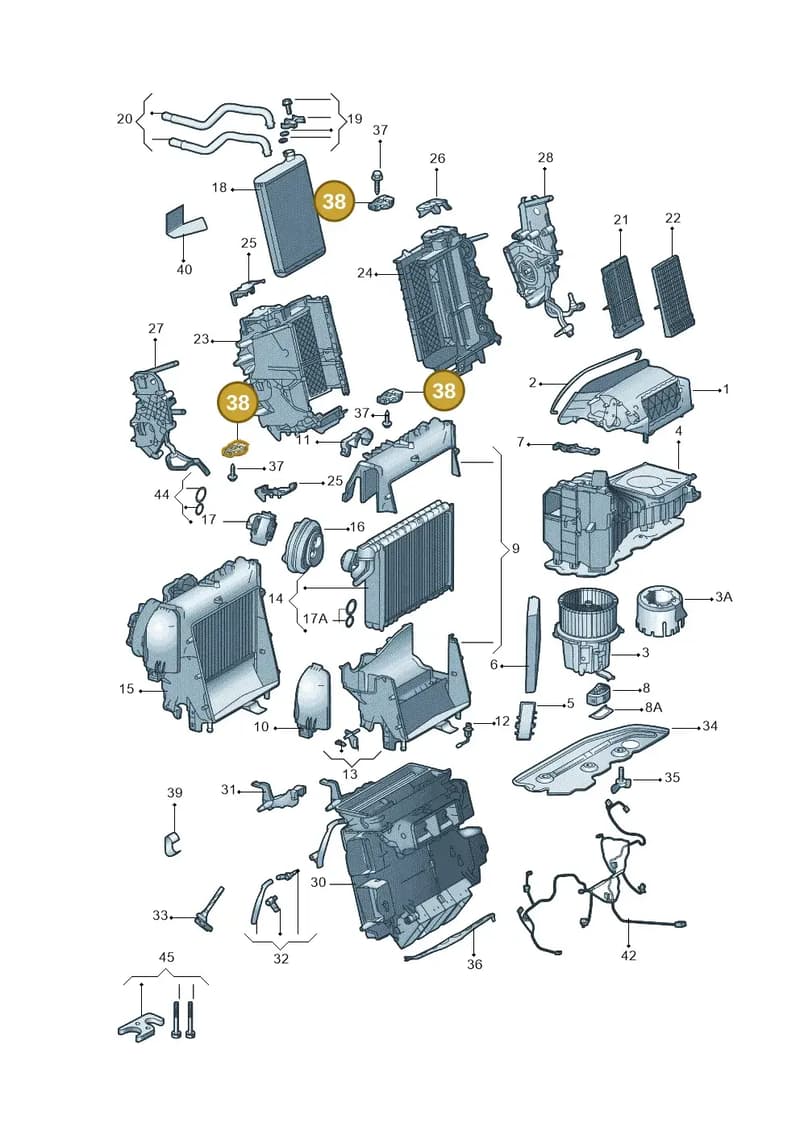

Genuine OEM Audi Servomotor, part number 8K0820511D. Fits Audi Q5 (2009-2018). Shown as position 38 in the body diagram 669820030.
Catalogue entry: SERVOMOTOR ×X.
Technical details
- Category
- Heating & A/C
- Diagram sheet
- Audi 620820300, position 38
- ETKA group
- 8 / 20 (820)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 9AK
- 9AQ
- L0L
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
7 vehiclesServomotor — locate 8K0820511D Audi Servomotor in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Int DuctRight8K2820153A
- 1Int DuctLeft8K1820153A
- 2Seal 8K0819229
- 3BlowerLeft8T1820021
- 3BlowerRight8T2820021
- 4HousingRight8T2820356
- 4HousingLeft8T1820356
- 5Cover 8K0819422A
- 5Cover 8K0819422
- 6Dust Filt 8K0819439B
- 6Filterelem 8K0819439
- 7ValveLeft8K1819425A
- 7ValveRight8K2819425
- 7ValveRight8K2819425A
- 7ValveLeft8K1819425
- 8Regulator 8T0820521
- 8Regulator 8T0820521A
- 8Regulator 8T0820521E
- 9HousingRight8K2820024A
- 9HousingLeft8K1820024A
- 10CoverRight8K2819422A
- 10CoverLeft8K1819422A
- 11Pipe Holde 8K0820536A
- 12Temperature Sensor 8K0820539
- 13Plate 8K0898037
- 15HousingLeft8T1898191A
- 15HousingLeft8T1898191B
- 15HousingRight8T2898191
- 15HousingRight8T2898191A
- 15HousingRight8T2898191B
- 15HousingLeft8T1898191
- 16Grommet 8K1819345
- 17Expans Val 8T0820679A
- 17Expans Val 8T0820679
- 17AGask Set 8K0820261
- 18Heat Exch 8K0898037A
- 19Pipe Holde 8K0898967
- 20PipeRight8K2898037
- 20PipeLeft8K1898037
- 21Heater 8K0819011D
- 21Heater 8K0819011C
- 22Grille 8K0819164A
- 23HousingLeft8K1820007E
- 23HousingRight8K2820007D
- 23HousingRight8K2820007E
- 23HousingLeft8K1820007D
- 24HousingLeft8K1820007G
- 24HousingRight8K2820007F
Vehicle fitment table7
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 38 | X |
| Audi A5 Sportback | 2011-2017 | 38 | 1 |
| Audi A5 Cabrio 2.0 | 2011-2017 | 38 | 1 |
| audi a4 av. 2.0 tdi | 2011-2015 | 38 | X |
| Audi Q5 qu. 2.0 | 2009-2018 | 38 | X |
| Audi A4 Av. Allroad | 2008-2016 | 38 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A4L 2.0 | 2008-2012 | 38 | X |
Diagrams & fitment data powered by oemdiagrams.com
8K0820511D Audi Servomotor is fitted on: Audi Q5 qu. 2.0 TDI 2012-2017; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi Q5 qu. 2.0 2009-2018; Audi A4 Av. Allroad 2008-2016; Audi A4L 2.0 2008-2012.
