Target · Diagram
Find this reference above

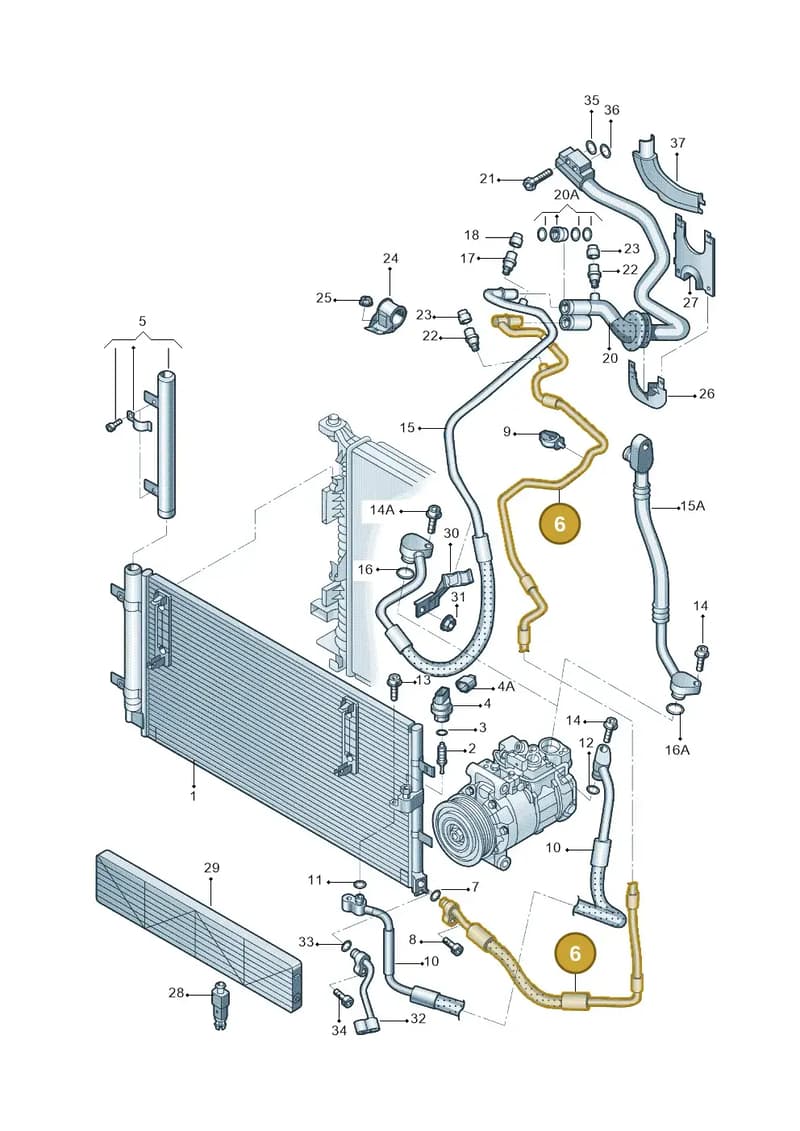

Number 6 marks the part’s position in this exploded view (Audi Q5 (2009-2018)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Audi Refrigerant Pipe, part number 8R0260710J. Fits Audi Q5 (2009-2018). Shown as position 6 in the fuel, exhaust and cooling diagram 687260040. Equipment code: L0L.
Catalogue entry: PIPE.
Fitted with: 8R0260710D PIPE, 8RD260710B PIPE, 8K0298260A REPAIR KIT.
Technical details
- Category
- Heating & A/C
- Diagram sheet
- Audi 687260040, position 6
- ETKA group
- 2 / 60 (260)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- L0L
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesRefrigerant Pipe — locate 8R0260710J Audi Refrigerant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Capacitor 8KD260401C
- 1Capacitor 8KD260401E
- 1Capacitor 8KD260401F
- 1Capacitor 8KD260401H
- 2Valve 8A0820855AA
- 3Seal Ring 7H0820896
- 4Sensor 8K0959126B
- 4Pressure 4H0959126
- 4Pressure 4H0959126A
- 4Sender 4H0959126B
- 4AHousing 1J0973703
- 5Part 8K0298403
- 6Pipe 8R0260710D
- 6Pipe 8RD260710B
- 7Seal Ring 4E0260749A
- 8Bolt N10347204
- 9Cable Tie 3D0971838N
- 9Clamp 4F0260762
- 9Bracket 8K0260759H
- 10Hose 8R0260701G
- 10Hose 8R0260701S
- 10Hose 8RD260701
- 11Seal Ring 4E0260749B
- 14Screw N10414402
- 15Hose 8R0260707J
- 15Hose 8KD260707
- 15Hose 8KD260707A
- 15Hose 8K0260707AC
- 16Seal Ring 8E0260749C
- 17Valve 8E0820855
- 18Protective Cap 3C0820581
- 20PipeLeft8R1260712A
- 20PipeLeft8R1260712D
- 20Pipe 8RD260712
- 20ARepair Kit 8K0298260A
- 21Screw N90903502
- 23Protective Cap 3C0820231
- 24Bracket 8R0260759
- 25Collar Nut N01508210
- 26Adapter 8K0260753
- 26Adapter 8K0260753B
- 27Intermed 8K0260753A
- 27Intermed 8K0260753C
- 28Sensor 8Z0820535
- 28Sensor 8Z0820535A
- 32Adapter 8R0260367
- 35Seal Ring 3D0260749C
- 36Seal Ring WHT004858
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q5 qu. 2.0 | 2009-2018 | 6 | 1 | L0L |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 6 | 1 |
The manufacturer’s catalogue lists this part number as fitted until 4 March 2013; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
8R0260710J Audi Refrigerant Pipe is fitted on: Audi Q5 qu. 2.0 2009-2018; Audi Q5 qu. 2.0 TDI 2008-2012.
