8W0121140 Quick Acting Coupling
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

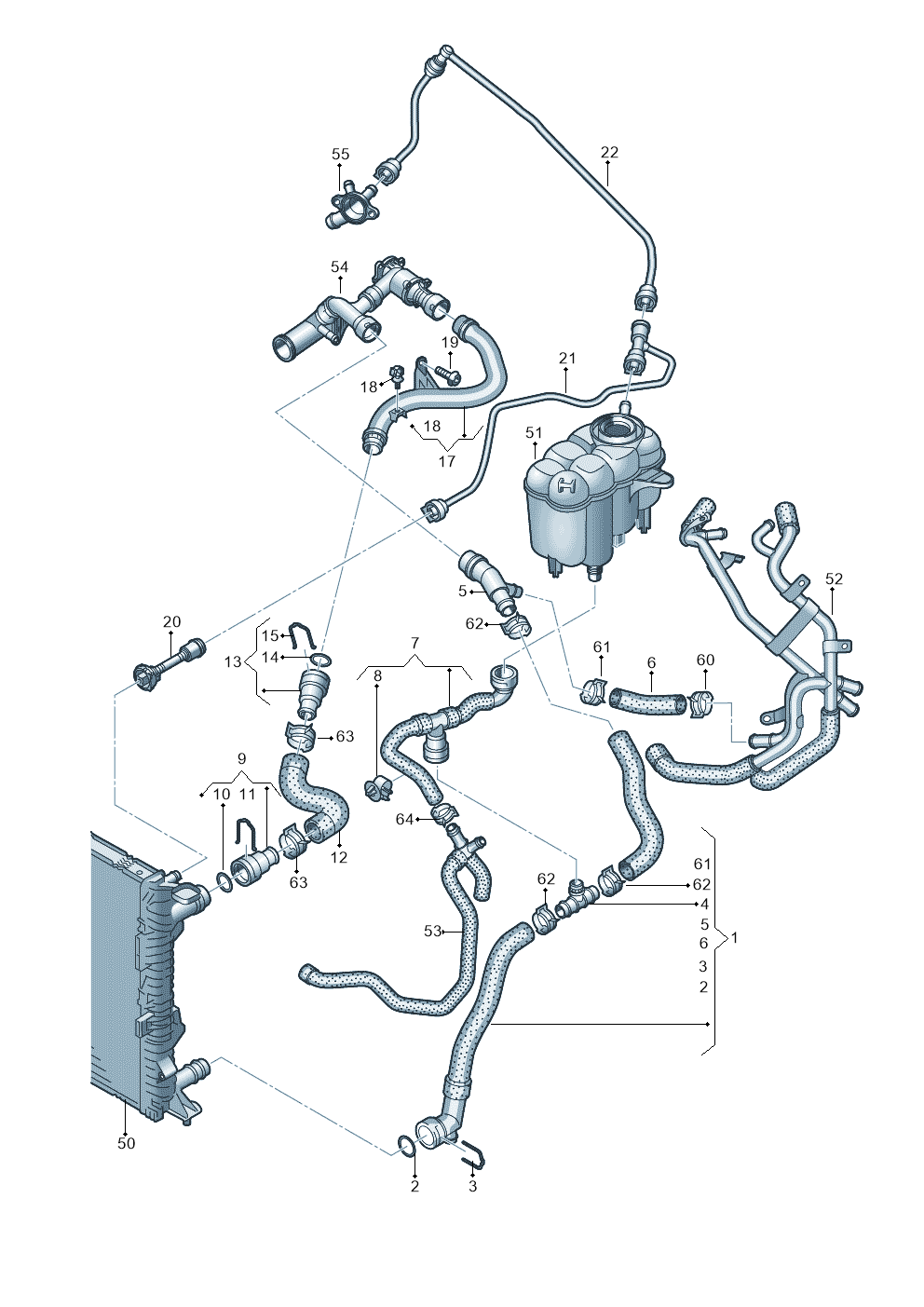

3 vehiclesQuick Acting Coupling — locate Quick Acting Coupling in the official exploded view and explore the surrounding assembly.
Parts in this assembly21
- 1Hose 8W0122055N
- 2Seal Ring N90765301
- 3Spring 1J0121142
- 5Coupl Piece 8W0122293AE
- 6Hose 8W0121057
- 7Hose 8W0121030K
- 8Clip 1C0422705A
- 9Coupl Piece 3B0122291C
- 12Hose 8W0121101J
- 17Water Pipe 04L121071G
- 18Bracket N10507901
- 19Bolt N10632003
- 20Coupl Piece 8W0122293DL
- 20Coupl Piece 8W0121081BK
- 21LineLeft8W0121081DR
- 21Line 8W0121081ED
- 21LineLeft8W0121081BL
- 22Line 8W0121081AR
- 60Clamp N90686902
- 61Clamp N90687001
- 62Clamp N90687201
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Sportback | 2016-2020 | 4 | 1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 4 | 1 |
| audi a4 2.0 | 2015-2019 | 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Quick Acting Coupling is fitted on: Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019.
