Target · Diagram
Find this reference above

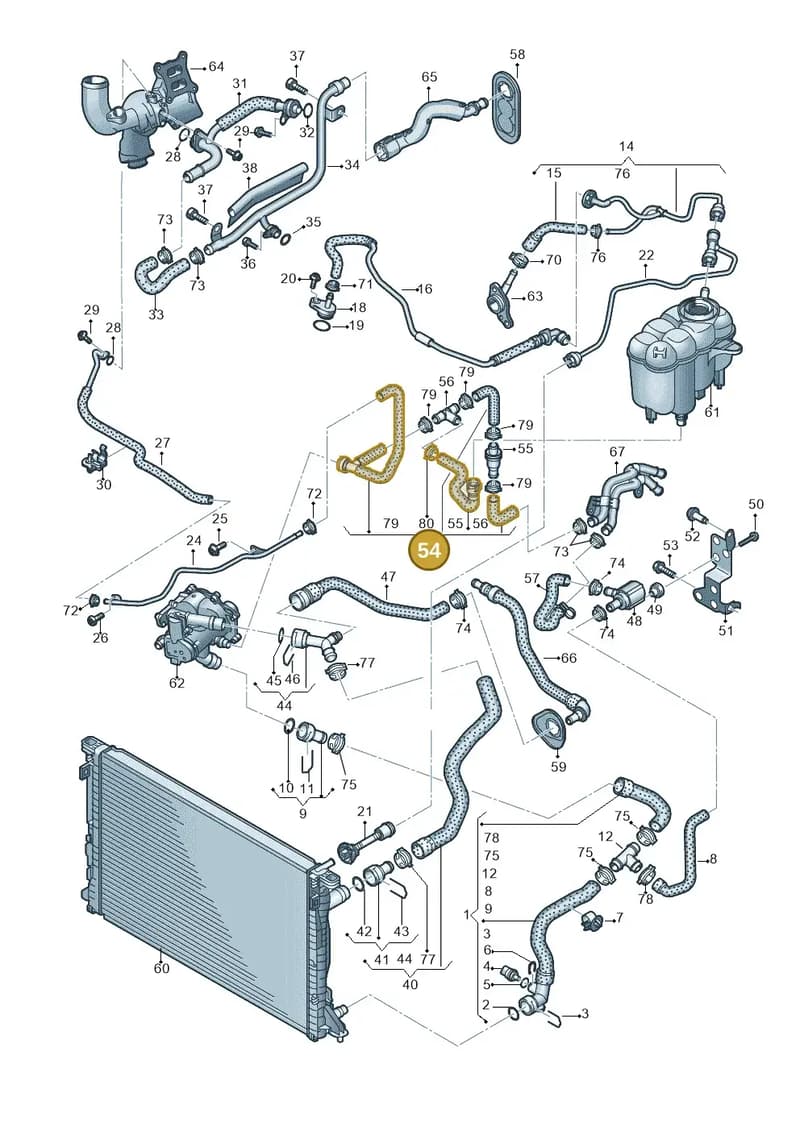

Number 54 marks the part’s position in this exploded view (Audi A5 Sportback (2016-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Audi Coolant Hose with Quick Release Coupling, part number 8W0122449CR. Fits Audi A5 Cabriolet (2016-2025), Audi A5 Sportback (2016-2025), Audi A4 (2015-2025). Shown as position 54 in the engine diagram 849121230.
Catalogue entry: HOSE.
Fitted with: 8W0122449AD HOSE, 8W0122449AT HOSE, 8W0122449BG HOSE, 8W0122449BC HOSE, 8W0122449BT HOSE, 8W0122449CE HOSE, N90686902 CLAMP.
Technical details
- Category
- Engine Cooling
- Diagram sheet
- Audi 849121230, position 54
- ETKA group
- 1 / 21 (121)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehiclesCoolant Hose With Quick Release Coupling — locate 8W0122449CR Audi Coolant Hose with Quick Release Coupling in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Hose 8W0122055CB
- 1Hose 8W0122055BN
- 2Seal Ring N90765301
- 3Spring 1J0121142
- 4Sensor 079919523J
- 4Sender 06A919501A
- 5Seal Ring WHT002287B
- 5Seal Ring N90316801
- 6Screw N10721401
- 6Spring 032121142
- 7Bracket WHT006829
- 8Hose 8W0819375AE
- 9Coupl Piece 7M3122291
- 12Adapter N90692901
- 14Line 8W0121081AN
- 14Line 8W0121081CC
- 14Line 8W0121081EE
- 15Hose 8W0121107P
- 16Hose 06L121081AD
- 16Hose 06L121081AF
- 16Hose 06L121081K
- 16Hose 06L121081R
- 18Adapter 06K121143
- 19Seal Ring WHT005440
- 20Bolt N10196103
- 20Bolt N91096801
- 21Coupl Piece 8W0122293DL
- 21Coupl Piece 8W0121081BK
- 22Line 8W0121081DR
- 22Line 8W0121081ED
- 22Line 8W0121081BL
- 24Water Pipe 06L121075AJ
- 24Water Pipe 06L121075AP
- 24Water Pipe 06L121075S
- 24Water Pipe 06L121075T
- 26Bolt N10451401
- 27Water Pipe 06L121492R
- 27Water Pipe 06L121492J
- 28Seal Ring WHT006114
- 29Screw N10619201
- 30Bracket 06L115261
- 31Water Pipe 06L121497AA
- 32Seal Ring WHT006124
- 33Hose 06L121051C
- 34Water Pipe 06L121085AF
- 35Seal Ring WHT005558
- 36Bolt N10335202
- 37Screw N0160256
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Sportback | 2016-2020 | 54, 35 | 1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 54, 35 | 1 |
| audi a4 2.0 | 2015-2019 | 54, 35 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
8W0122449CR Audi Coolant Hose with Quick Release Coupling is fitted on: Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019.
