Product overview
Genuine OEM Audi Brake Line, part number 9J1614723D. This critical component is designed to transmit hydraulic pressure, ensuring reliable and consistent operation of the braking system. It forms a vital part of the vehicle's hydraulic brake circuit, extending from the main brake assembly towards a wheel. Weighing approximately 0.116 kg and measuring 0.74 meters in length, this line is engineered for exact routing and fitment. Choosing a genuine OEM brake line ensures precise hydraulic flow, correct pressure response, and long-term durability, crucial for maintaining braking system integrity.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 74 × 23.8 × 14.5 cm
- Shipping weight
- 0.12 kg
Parts diagram & fitment

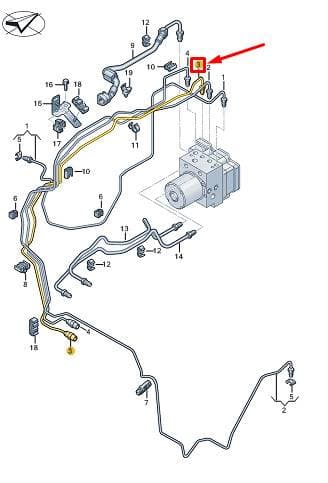

1 vehicleBrake Line — locate 9J1614723D Audi Brake Line | Hydraulic Pressure Transmission in the official exploded view and explore the surrounding assembly.
Superseded by 9J1614723E — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(48)
- 1Brake HoseLeft9J1611707C
- 1Brake HoseLeft9J1611707F
- 1Brake HoseLeft9J1611707H
- 1PartLeft9J1611707K
- 1PartLeft9J1611707L
- 1Brake HoseLeft9J1611707M
- 1Brake HoseRight9J1611708B
- 1Brake HoseRight9J1611708C
- 1Brake HoseRight9J1611708F
- 1Brake HoseRight9J1611708H
- 1PartRight9J1611708K
- 1PartRight9J1611708L
- 1Brake HoseRight9J1611708M
- 1Line 9J1614717B
- 1Line 9J1614717C
- 1Line 9J1614717D
- 1Brake HoseLeft9J1611707B
- 1Line 9J1614717
- 2RetainerRight9J1611846B
- 2RetainerRight9J1611846C
- 2Line 9J1614721D
- 2Line 9J1614721E
- 2Line 9J1614721F
- 2Line 9J1614721G
- 2RetainerLeft9J1611845B
- 2RetainerLeft9J1611845C
- 2Line 9J1614721B
- 3Line 9J1614723C
- 3Line 9J1614723E
- 3Line 9J1614723A
- 3Bolt N10653203
- 4Line 9J1614725C
- 4Line 9J1614725D
- 4Line 9J1614725E
- 4Line 9J1614725A
- 4Collar Nut N01508210
- 5RetainerRight9J1611846A
- 5Spring 8K0611715
- 5RetainerLeft9J1611845A
- 6Retainer 8W0611797C
- 6Spring 971611715
- 7Bracket 4G0611797
- 8Bracket 6Q0611797K
- 9Brake Pipe 9J1614724C
- 9Brake Pipe 9J1614724D
- 9Brake Pipe 9J1614726B
- 9Brake Pipe 9J1614726C
- 9Brake Pipe 9JA614724
Diagrams & fitment data powered by oemdiagrams.com
9J1614723D Audi Brake Line | Hydraulic Pressure Transmission is fitted on: Audi RS e-tron GT 2020-2020.
