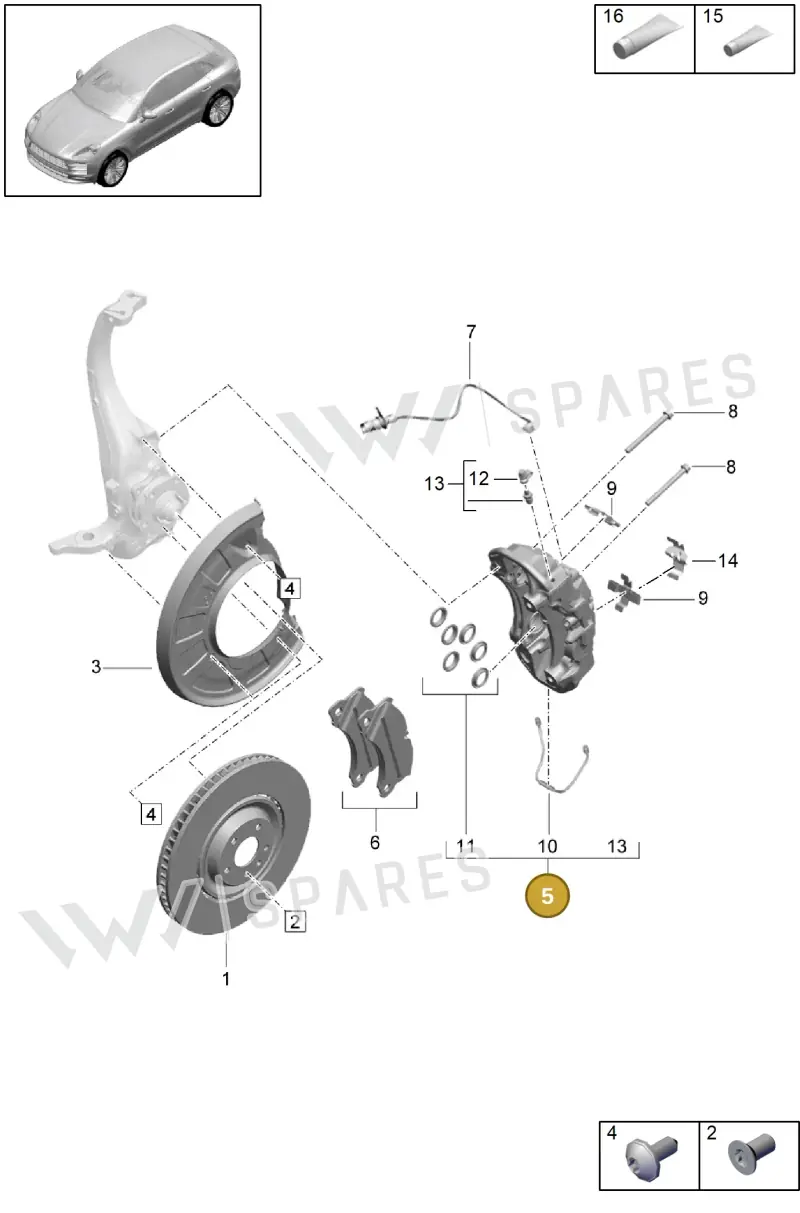

Number 5 marks the part’s position in this exploded view (Porsche Macan (2018-2022)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Porsche Fixed Calliper, part number 9Y0615124AH. Fits Porsche Cayenne (2017-2023), Porsche Macan (2018-2022). Shown as position 5 in the wheels and brakes diagram P5160201.
Catalogue entry: F.calliper right; RED.
Fitted with: 9Y0615301B BRAKEDISC, 9Y0615302B BRAKEDISC, 9Y0615301P BRAKEDISC, 9Y0615302P BRAKEDISC, 9Y0615301R BRAKEDISC, 9Y0615302R BRAKEDISC, 9Y0615301AB BRAKEDISC, 9Y0615302AB BRAKEDISC, 9Y0615301N BRAKEDISC, 9Y0615301Q BRAKEDISC, 9Y0615302N BRAKEDISC, 9Y0615302Q BRAKEDISC.
Technical details
- Category
- Brakes
- Diagram sheet
- Porsche p52602000, position 5
- ETKA group
- 6 / 02 (602)
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- only with1ZL
- only with1ZN
- 1ZN
- 1ZL
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesFixed Calliper — locate 9Y0615124AH Porsche Fixed Calliper in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly48
- 1BrakediscLeft95B615301AA
- 1BrakediscLeft95B615301AB
- 1BrakediscRight95B615302AA
- 1BrakediscRight95B615302AB
- 1BrakediscRight95B615302AF
- 1BrakediscLeft95B615301AF
- 2Bolt N10648301
- 3PartLeft95B615311J
- 3CoverRight95B615312G
- 3PartRight95B615312J
- 3CoverLeft95B615311G
- 4Bolt N10741402
- 4Bolt PAF907371
- 5CalliperLeft95B615123AH
- 5PartLeft95B615123AR
- 5CalliperLeft95B615123R
- 5PartRight95B615124AA
- 5PartRight95B615124AB
- 5PartRight95B615124AH
- 5PartRight95B615124AR
- 5PartRight95B615124N
- 5CalliperRight95B615124R
- 5PartLeft9Y0615123AH
- 5PartLeft9Y0615123AJ
- 5PartRight9Y0615124AJ
- 5PartRight9Y0615124S
- 5PartLeft95B615123AA
- 5PartLeft95B615123AB
- 5PartLeft95B615123N
- 5PartLeft9Y0615123S
- 6Part 95B698151AN
- 6Part 9Y0698151AP
- 6Part 9Y0698151S
- 6Part 95B698151AA
- 6Part 95B698151AC
- 6Part 95B698151AP
- 6Part 95B698151AQ
- 6Part 95B698151AR
- 7Wire 95B907253E
- 7Wire 95B907253F
- 7Part 95B907637G
- 8PartLeftPAF004571
- 8ScrewRightPAF004572
- 8PartLeftWHT004571
- 8ScrewRightWHT004572
- 9Spring 9A769826900
- 9Spring 9Y0615269
- 10Connector LineLeft7P5615701C
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Remark |
|---|---|---|---|
| Macan R4 TFSI | 2018- | 5 | |
| Cayenne Diesel V6 | 2017-2023 | 5 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
9Y0615124AH Porsche Fixed Calliper is fitted on: Macan R4 TFSI 2018-; Cayenne Diesel V6 2017-2023.
