JNV130125 Fuel Rail
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

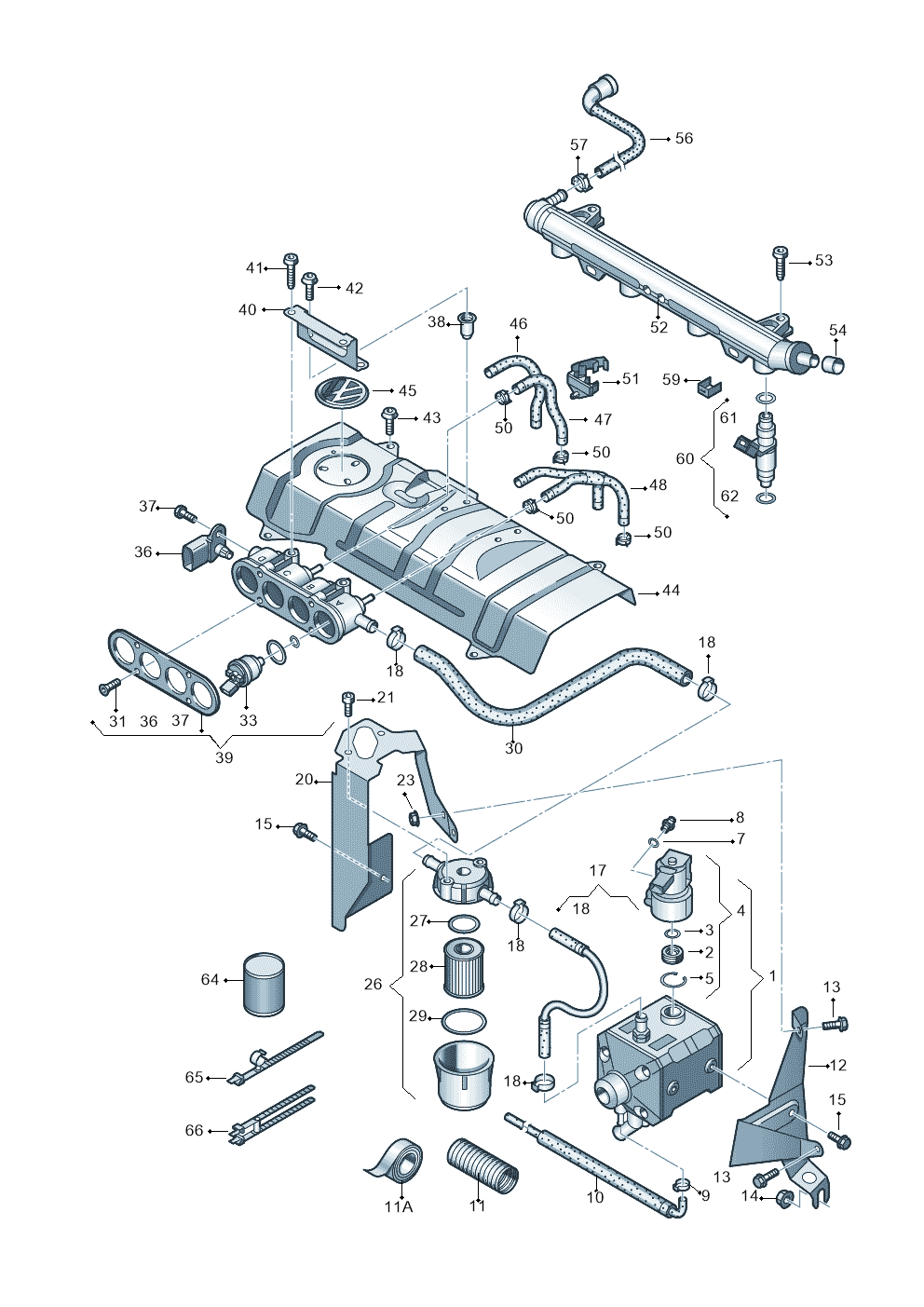

6 vehiclesFuel Rail — locate Fuel Rail in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Evaporator 6R0133669A
- 2Filterelem 6R0133843
- 3Seal Ring 6R0133696
- 4Part 6R0907642
- 5Ring N0122871
- 7Seal Ring 6R0201174
- 8Insert 6R0201287
- 9Clamp N10210501
- 10Hose 6R0133782
- 11ATape N10592002
- 12Bracket 6R0133095B
- 13Bolt N10653201
- 14Collar Nut N10609203
- 15Bolt N90319404
- 17Hose 6R0133321C
- 18Clamp N10201901
- 20Bracket 6R0133095C
- 21Bolt N90737105
- 23Collar Nut 171201969
- 26Filter 6R0133511C
- 27Seal Ring 6R0127113C
- 28Filterelem 6R0127177A
- 29Seal Ring 6R0127113
- 30Hose 6R0133321D
- 31Bolt N01021020
- 33Valve JNV906031A
- 36Part JNV906527
- 37Bolt N01028716
- 38Part 1J0201969
- 39Rail JNV130125E
- 40Retaining 036133336C
- 41Bolt N91089602
- 42Bolt N10661002
- 44Retaining 036133336F
- 45Vw Symbol 036103940L
- 46Gas Line 03C115309
- 47Gas Line 03C115309A
- 48Gas Line 03C128653
- 50Clamp 3C0131483
- 51Bracket 03C133687C
- 52Rail 036133320C
- 53Bolt WHT001926
- 54Part 036133335
- 56Fuel Line 036133723BR
- 57Clamp N90686701
- 59Clip 036133047G
- 60Valve 03C906031A
- 61Seal Ring 035906149A
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Polo | 2012-2014 | 39 | 1 |
| Ibiza Reference | 2011-2012 | 39 | |
| Altea XL Reference | 2010-2013 | 10 | |
| Golf Plus 1.6 | 2009-2011 | 10 | 1 |
| golf 2.0 | 2008-2011 | 10 | 1 |
| ALTEA 07> | 2006- | 10 |
Diagrams & fitment data powered by oemdiagrams.com
Fuel Rail is fitted on: Polo 2012-2014; Ibiza Reference 2011-2012; Altea XL Reference 2010-2013; Golf Plus 1.6 2009-2011; golf 2.0 2008-2011; ALTEA 07> 2006-.
