N0102544 Hexagon Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

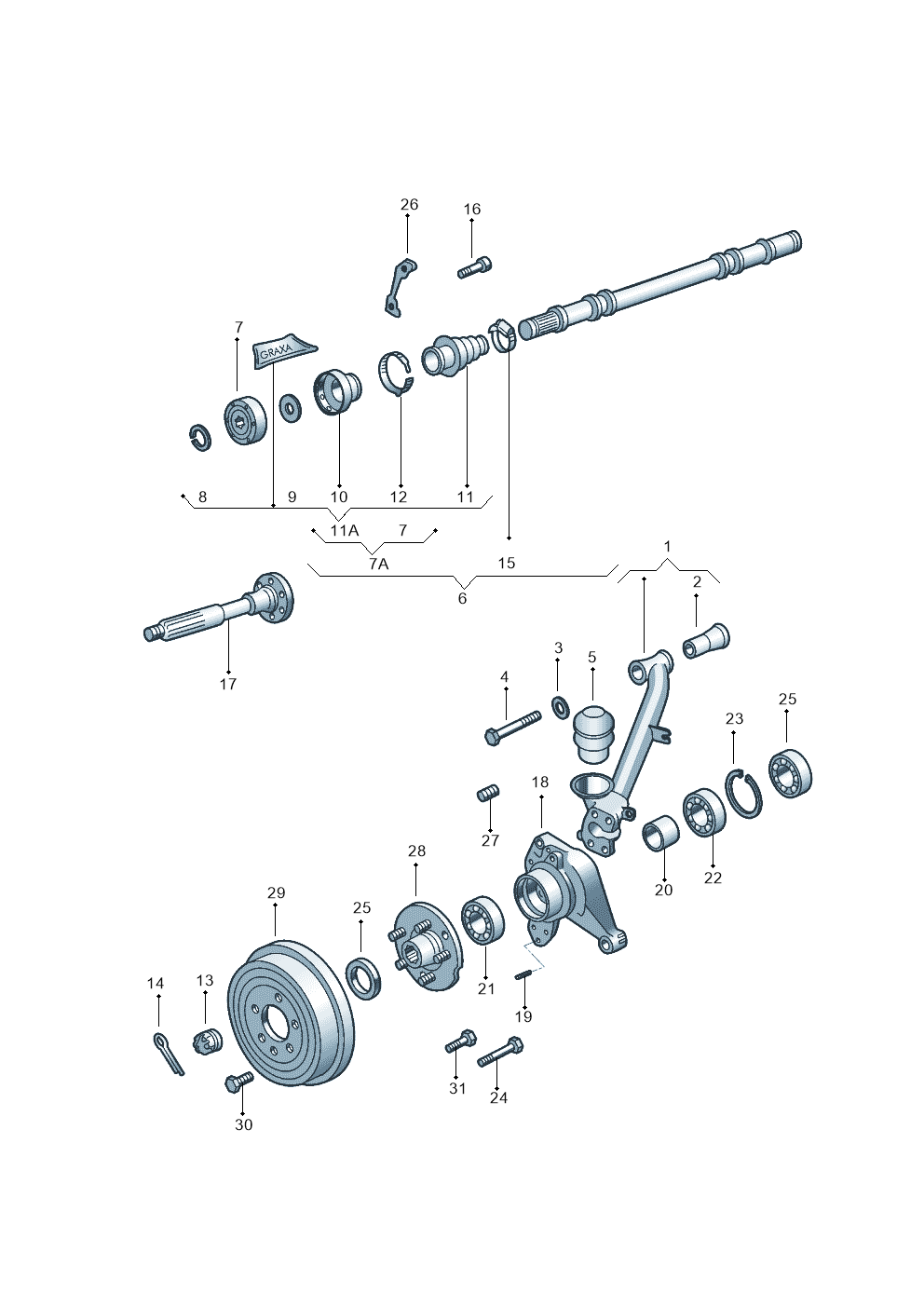

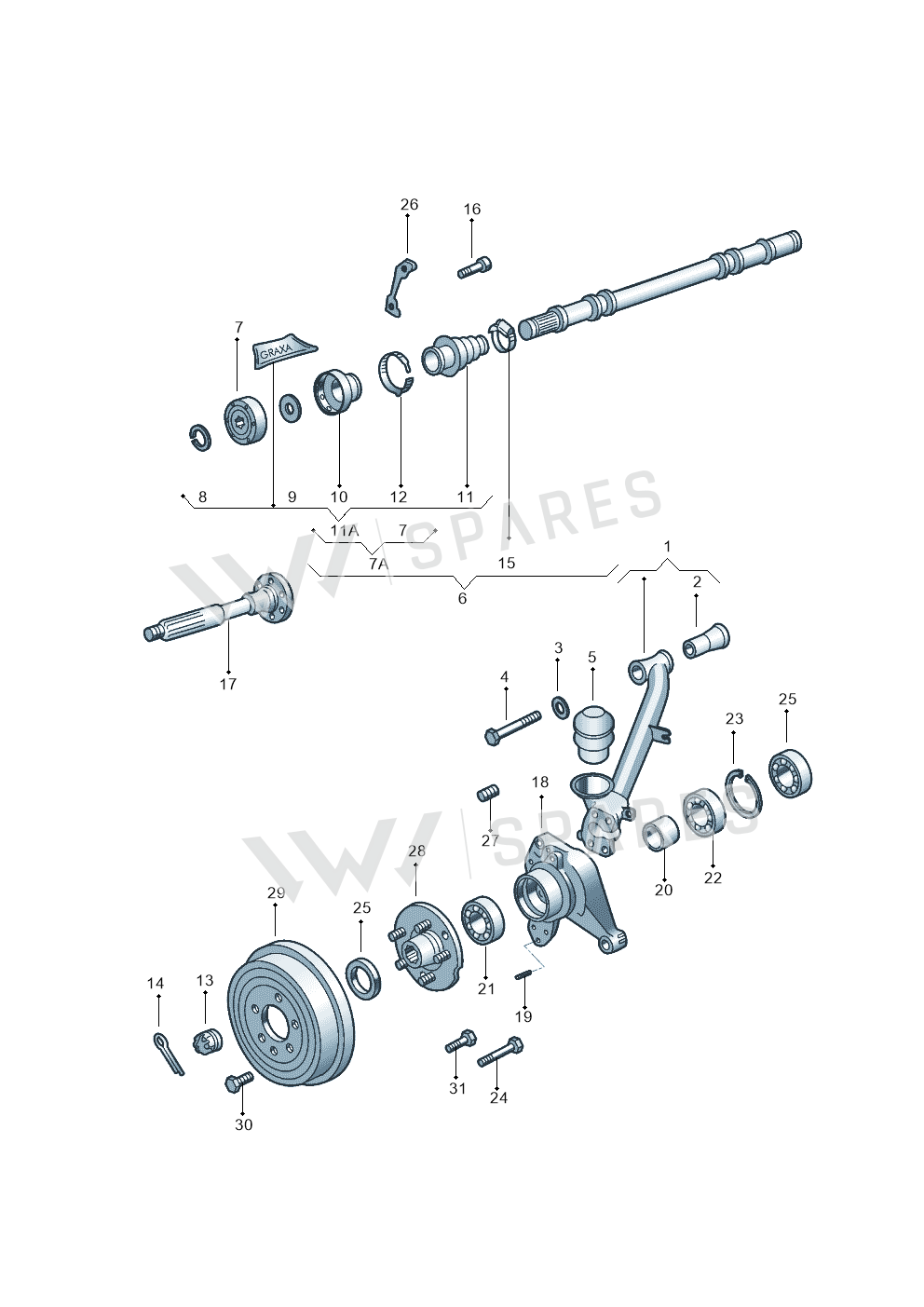

42 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly36
- 1Axle GuideRight2375010661
- 1Axle GuideLeft2375010651
- 3Washer 211513537
- 3Spacer ZBA407371
- 3Washer 7X0513537
- 4Screw 2117034901
- 5Buffer 2115011911
- 6Driveshaft 2375012012
- 7Joint 3015012031
- 7APart 2374981032
- 7APart 2374981031
- 8Ring ZBA407279
- 10Flange 3015012151
- 11Bellows 3015012171
- 11APart 2374982011
- 11APart 2374982012
- 11ABoot 2114982011
- 12Clip 3015012191
- 13Part 2115012211
- 14Part N0125481
- 15Part 377407357A
- 16Screw 1135012291
- 18HousingRight2115012542
- 18HousingLeft2115012532
- 19Part N0132202
- 20Ring 2115012811
- 21Rollbearig 2115012831
- 23Ring N0122951
- 25Part 2115013172
- 25Part 2115013171
- 26Support El 2375013571
- 27Insert N0222141
- 28Wheel Hub 2115016191
- 29Brake Drum 2116096151
- 30Bolt N0102271
- 31Bolt N0102413
Vehicle fitment table43
Europe (21)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Kombi | 2011- | 24 | 4 | ||
| KOMBI STANDARD/FURGAO 06> | 2006- | 24 | 4 | ||
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 40, 42 | 2 | G0L | |
| LT, LT 4X4 | 2003-2006 | 19 | 4 | K4 | |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 10, 17 | 1 | D5B | |
| SHARAN/4MOTION | 2002-2005 | 11 | 1 | 1X1 | |
| SUPERB 02> | 2001- | 10 | 1 | ||
| PASSAT 00> | 2000- | 10 | 1 | G0F | |
| AUDI RS4 AV. QU. | 2000-2001 | 10 | 1 | ||
| Kombi | 1996-2005 | 24 | |||
| SHARAN/SYNCRO | 1995-2000 | 11 | 1 | ||
| Passat | 1994-1997 | 17 | 2 | ||
| Passat | 1991-1993 | 17 | 2 | ||
| Corrado | 1989-1995 | 20 | 2 | ||
| LT, LT 4x4 (28-55) | 1989-1995 | 2 | 4 | ||
| Passat | 1989-1991 | 17 | 2 | ||
| Scirocco | 1983-1989 | 11 | 2 | ||
| LT, LT 4x4 (28-55) | 1982-1989 | 2 | 4 | ||
| Jetta | 1981-1984 | 11 | 2 | ||
| Jetta 81 | 1980-1981 | 11 | 2 | ||
| Scirocco | 1978-1980 | 10 | 2 |
Other markets (18)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| parati | 2010- | 22, 16 | 2 | ||
| GOL 2P/4P M.06> | 2005- | 16, 22 | 2 | ||
| SAVEIRO M.06> | 2005- | 22, 11 | 2 | ||
| PARATI M.06> | 2005- | 22, 11 | 2 | ||
| PASSAT LINGYU "CN."06> | 2005- | 10 | 1 | G0F | |
| MARINE-MOTOR 02> | 2002- | 7, 6 | 2 | ||
| GOL 2P/4P | 2002-2006 | 16, 22 | 2 | ||
| SAVEIRO | 2002-2006 | 22, 11 | 2 | ||
| PARATI 4P | 2002-2006 | 16, 22 | 2 | ||
| GOL SPECIAL 2P | 2002-2005 | 16, 22 | 2 | ||
| CITI GOLF "ZA"M.96> | 1996- | 15 | 4 | ||
| NOVA PARATI | 1995-2002 | 16, 22 | |||
| AUDI 200 CHINA | 1995-1999 | 10 | 1 | ||
| NOVO GOL/SAVEIRO | 1994-2002 | 22, 16 | 2 | 503 | |
| Quantum 85 | 1984-1985 | 24 | 1 | ||
| Rabbit Conv./Cabrio | 1983-1993 | 11 | 2 | ||
| Rabbit Conv. 81 | 1980-1981 | 11 | 2 | ||
| Rabbit Conv. | 1978-1980 | 10 | 2 |
Platform / generic diagrams (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 325 platform | 9, 14 | ||||
| 377 platform | 22, 16 | 2 | |||
| 377 platform | 11 | 3 | 221 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Type 2 | 1967-1979 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: Kombi 2011-; KOMBI STANDARD/FURGAO 06> 2006-; Audi A4/S4 Cabrio./qu. 07> 2006-; LT, LT 4X4 2003-2006; Audi A4/S4 Cabrio./qu. 2002-2006; SHARAN/4MOTION 2002-2005; SUPERB 02> 2001-; PASSAT 00> 2000-; AUDI RS4 AV. QU. 2000-2001; Kombi 1996-2005; SHARAN/SYNCRO 1995-2000; Passat 1994-1997; Passat 1991-1993; Corrado 1989-1995; LT, LT 4x4 (28-55) 1989-1995; Passat 1989-1991; Scirocco 1983-1989; LT, LT 4x4 (28-55) 1982-1989; Jetta 1981-1984; Jetta 81 1980-1981; Scirocco 1978-1980; parati 2010-; GOL 2P/4P M.06> 2005-; SAVEIRO M.06> 2005-; PARATI M.06> 2005-; PASSAT LINGYU "CN."06> 2005-; MARINE-MOTOR 02> 2002-; GOL 2P/4P 2002-2006; SAVEIRO 2002-2006; PARATI 4P 2002-2006; GOL SPECIAL 2P 2002-2005; CITI GOLF "ZA"M.96> 1996-; NOVA PARATI 1995-2002; AUDI 200 CHINA 1995-1999; NOVO GOL/SAVEIRO 1994-2002; Quantum 85 1984-1985; Rabbit Conv./Cabrio 1983-1993; Rabbit Conv. 81 1980-1981; Rabbit Conv. 1978-1980; 325 platform; 377 platform.
