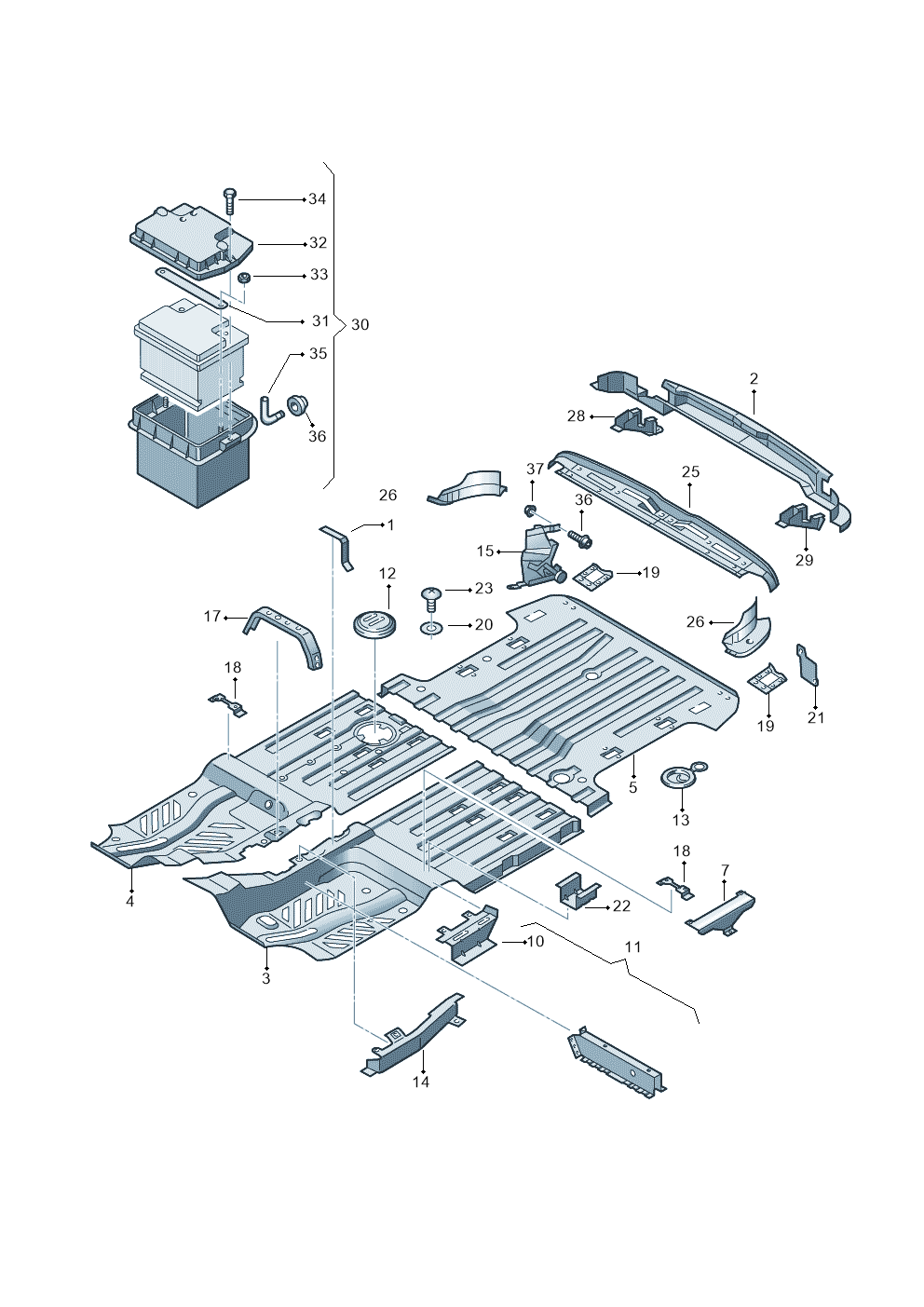

Hexagon Bolt exploded parts diagram — Sharan · 2008-2010, position 34 — Sharan · 2008-2010 · position 34Full diagram ↓

N0103398

N0103398 Hexagon Bolt

Name: N0103398 Hexagon Bolt
Brand: Audi
SKU: N0103398
Price: 0.28 GBP
Availability: InStock

£0.28

£0.23 excl. VAT

This is a catalog item (special order). Delivery time may vary.

Availability: Available to order

Quantity:

Special order item. Delivery time may vary.

About This Part

Available for Purchase

This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.

Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

101 vehicles

Hexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly23

Vehicle fitment table102

Europe (90)

Vehicle	Years	Pos.	Qty	Remark	PR
Sharan	2008-2010	34	5
Audi Q7 07>	2006-	28	2		TB1
TRANSPORTER/4MOTION 07	2006-2007	8	3
TRANSPORTER OFFEN (7J) 07	2006-2007	8	3
TRANSPORTER/4MOTION 06	2005-2006	8	3
TRANSPORTER 06	2005-2006	8	3
TRANSPORTER	2003-2005	8	3
SHARAN/4MOTION	2002-2005	34	5
ALHAMBRA/4MOTION	2002-2005	34	5
AUDI A2	2000-2005	48	1
SHARAN/4MOTION	2000-2002	34	5
ALHAMBRA/4MOTION	2000-2002	34	5
Audi A4/Avant	1999-2001	17	1
Audi A4/Av.qu.	1999-2001	17	1
Passat syncro/4Motion	1998-2000	22	1
Audi A6/Avant	1997-2001	22	1
Audi A6/Av.qu.F4B-W->	1997-2001	22	1
Passat	1997-2000	22	1
Audi A4/Avant F8D-W->	1997-1998	17	1
Audi A4/Av.qu.F8D-W->	1997-1998	17	1
TRANSPORTER SYNCRO	1996-2003	23	1
ALHAMBRA	1996-2000	34	5
TOLEDO SEAT MOD.97>99	1996-1999	18	5
Audi A8	1996-1998	11	2
Audi A8 qu.	1996-1998	11	2
Audi A6/Wagon F >4A-W	1996-1997	11	2
SHARAN/SYNCRO	1995-2000	34	5
Audi A4 F>8D-W-..	1995-1997	11	2
Audi A4 qu. F>8D-W-..	1995-1997	11	2
Audi Coupe quattro/3 96	1995-1995	11	2
AUDI 80 Av.Rs2 qu.	1994-1995	9, 17	2
Audi A6/Wagon 95	1994-1995	12	2
Audi A6/S6/Wagon.qu. 95	1994-1995	11	2
Audi 90 qu. 95	1994-1995	11	2
Audi Coupe/3	1994-1995	12	2
Golf/Ecomatic 95	1994-1995	14	3
Golf Var./Vento 95	1994-1995	14	3
Audi Cabrio.	1993-1998	12, 17	2
Audi 90	1993-1995	12	2
Audi 100/Wagon 94	1993-1994	12	2
Jetta GLX 94	1993-1994	14	3
Audi 90 qu.	1992-1994	15	2
Audi 90 93	1992-1993	12	2
Audi 100/Wagon 93	1992-1993	12	2
GOLF/Ecomatic	1991-1994	14	3
Passat	1991-1993	17	3
Passat syncro	1991-1993	13	1
Audi 100/Wagon 92	1991-1992	12	2
Polo/Polo Coupe	1990-1994	8	2
TARO	1989-1997	33	1
Audi 80/90	1989-1991	16	1
Audi Coupe qu.	1989-1991	12	2
Passat	1989-1991	17	3
Jetta	1989-1991	18	3
Audi 100/Wagon	1989-1990	6	1
AUDI COUPE/3	1988-1994	12	2
Audi 200 Turbo	1988-1990	3	1
Audi 100/Wagon 89	1988-1989	6	1
Jetta 89	1988-1989	18	3
Audi 80/90 qu.	1987-1991	15, 16	2
Audi 80/90	1987-1989	16	1
Audi 5000 S/Wagon qu.	1987-1988	36	3	MC,AEZ
Jetta 88	1987-1988	18	3
AUDI COUPE/2 88	1987-1987	14	3
Audi 5000 S/Wagon	1986-1988	6, 28	1
Golf/Jetta syn, Rallye	1985-1991	13	1	PG
Audi 5000 Turbo	1984-1988	3	1
Audi 4000 S	1984-1987	14	3
Audi 4000 S/CS qu.	1984-1987	36	3	UH
Audi 5000 S/Wagon	1984-1986	6, 28	1
Audi 5000 S/Wagon 84	1983-1984	6, 28	1
CADDY	1982-1992	50	5
Audi quattro	1982-1987	14	2	QUATTRO:RR
POLO/COUPE/DERBY	1981-1990	8	2
Audi Coupe	1981-1987	14	3
Audi 4000	1981-1984	14	3
Audi 5000	1981-1982	28	3	QB
PASSAT,-VARIANT/2 81	1980-1981	14	3
Audi 5000 Turbo	1979-1982	17, 33	1
Audi 4000	1979-1981	14	3
Audi 5000/Wagon	1979-1981	28, 14	3	YS,QB
Dasher	1977-1980	14	3
Audi 5000	1977-1979	7, 28	5
Audi Fox	1976-1978	25, 14	1
LT 28-40 F>28-d-007273	1975-1982	5	2
Scirocco	1974-1976	38	5
Dasher	1973-1977	11	3
Audi Fox	1972-1976	11, 33	3
K 70	1970-1975	18	1
Type 2	1967-1979	34	5

Other markets (11)

Vehicle	Years	Pos.	Qty
Eurovan	1998-2003	23	1
AUDI 200 CHINA	1995-1999	11	2
JETTA (FAW) 91>	1991-	18	3
Golf/Jetta "USA","MEX"89>92	1988-1992	50	5
Quantum	1986-1988	14	1
Quantum syncro	1985-1988	40	1
Quantum 86	1985-1986	14	1
Quantum 85	1984-1985	14	1
Quantum	1981-1984	14	1
Rabbit	1976-1978	38	5
Rabbit	1974-1976	38	5

Listed without a diagram position (1)

Vehicle	Years	Pos.	Qty	Remark	PR
Scirocco	1976-1978
