N0147047 Socket Head Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

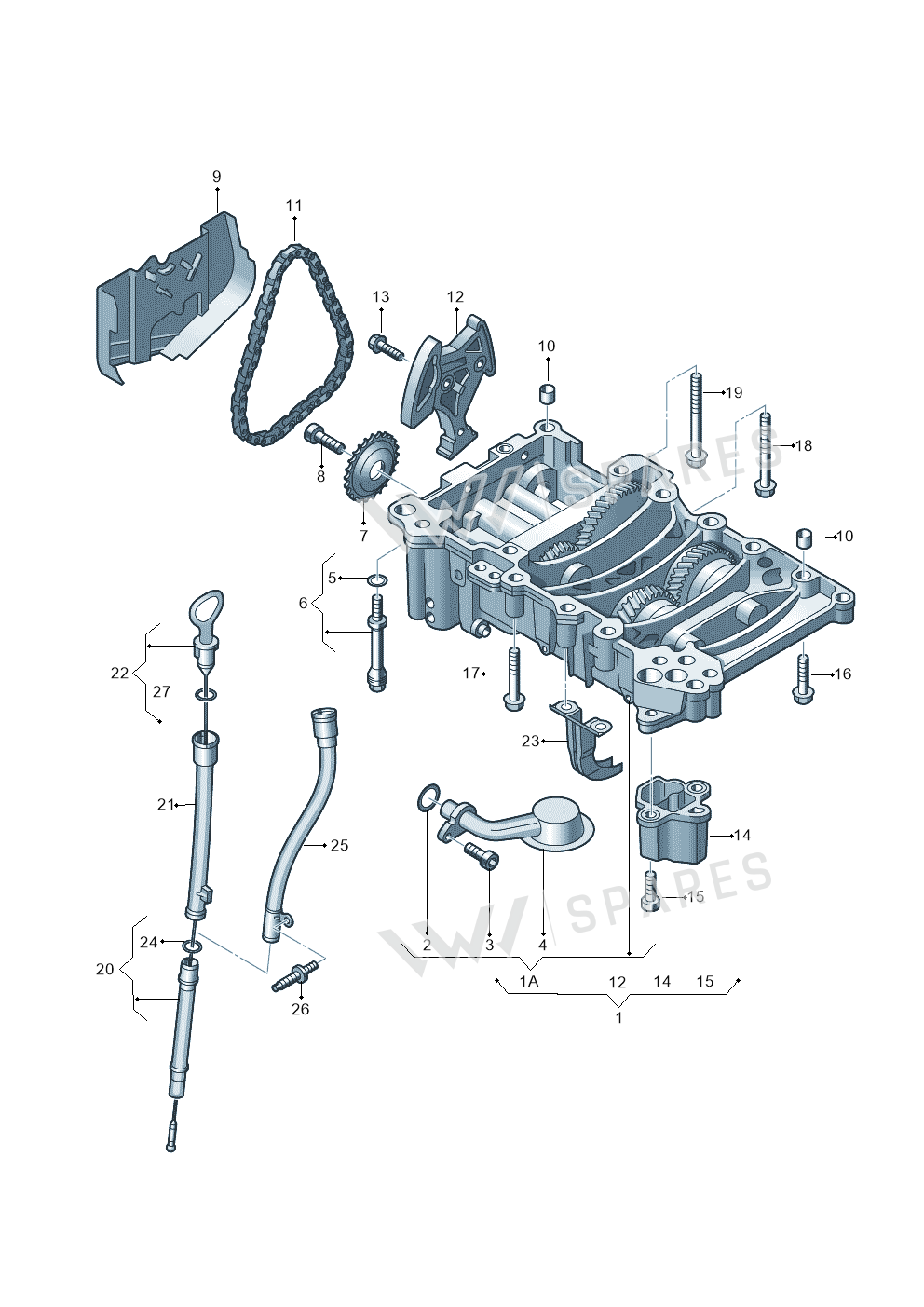

14 vehiclesSocket Head Bolt — locate Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Module 06F103295G
- 1AModule 06D103295R
- 2Seal Ring N0282222
- 4Pipe 06F115251A
- 5Seal Ring N90777301
- 6Bolt WHT000360
- 6Bolt WHT000360A
- 7Chn Sprckt 06B115121
- 8Screw N90366303
- 9Prot Plate 06D103340
- 9Prot Plate 06A103340
- 10Sleeve N90820801
- 11Chain 06F115230
- 12Tensioner 06B115130A
- 13Bolt N90735604
- 14Adapter 06A103206C
- 16Bolt N90970801
- 17Bolt N90970901
- 18Bolt WHT000006
- 18Bolt N90971001
- 19Bolt N10430502
- 19Bolt N90971101
- 20Tube 06D103634E
- 21Funnel 06F103663J
- 22Oil Dipsti 06F115611F
- 22Oil Dipsti 06F115611E
- 23Guide 06F103685
- 24Seal Ring N90421101
- 25Funnel 06F103663H
- 26Bolt N91013001
- 27Seal Ring N90813802
Vehicle fitment table14
Europe (12)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| ALTEA 07> | 2006- | 3, 22 | 1 | |
| LEON 06> | 2005- | 3, 22 | 1 | |
| TOLEDO 05> | 2004- | 3, 22 | 1 | |
| ALTEA | 2004-2006 | 3, 22 | 1 | D2L |
| Audi A8/S8/qu. lang | 2003-2007 | 16 | 1 | T81 |
| Audi RS6 qu. | 2003-2004 | 30, 18 | 2 | |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 30 | 2 | ML0 |
| Jetta Wagon 02 | 2001-2002 | 30 | 2 | |
| Audi A8 quattro | 1999-2002 | 36 | 2 | |
| LUPO/3L TDI | 1998-2003 | 29 | 2 | |
| AUDI A8 | 1998-2002 | 36 | 2 | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 36 | 2 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A4 "CN."06> | 2005- | 3 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 7L6 platform | 24 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Socket Head Bolt is fitted on: ALTEA 07> 2006-; LEON 06> 2005-; TOLEDO 05> 2004-; ALTEA 2004-2006; Audi A8/S8/qu. lang 2003-2007; Audi RS6 qu. 2003-2004; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Audi A8 quattro 1999-2002; LUPO/3L TDI 1998-2003; AUDI A8 1998-2002; Audi A6/Av.qu.F4B-W-> 1997-2001; AUDI A4 "CN."06> 2005-; 7L6 platform.
