N0195324 Hex Collared Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

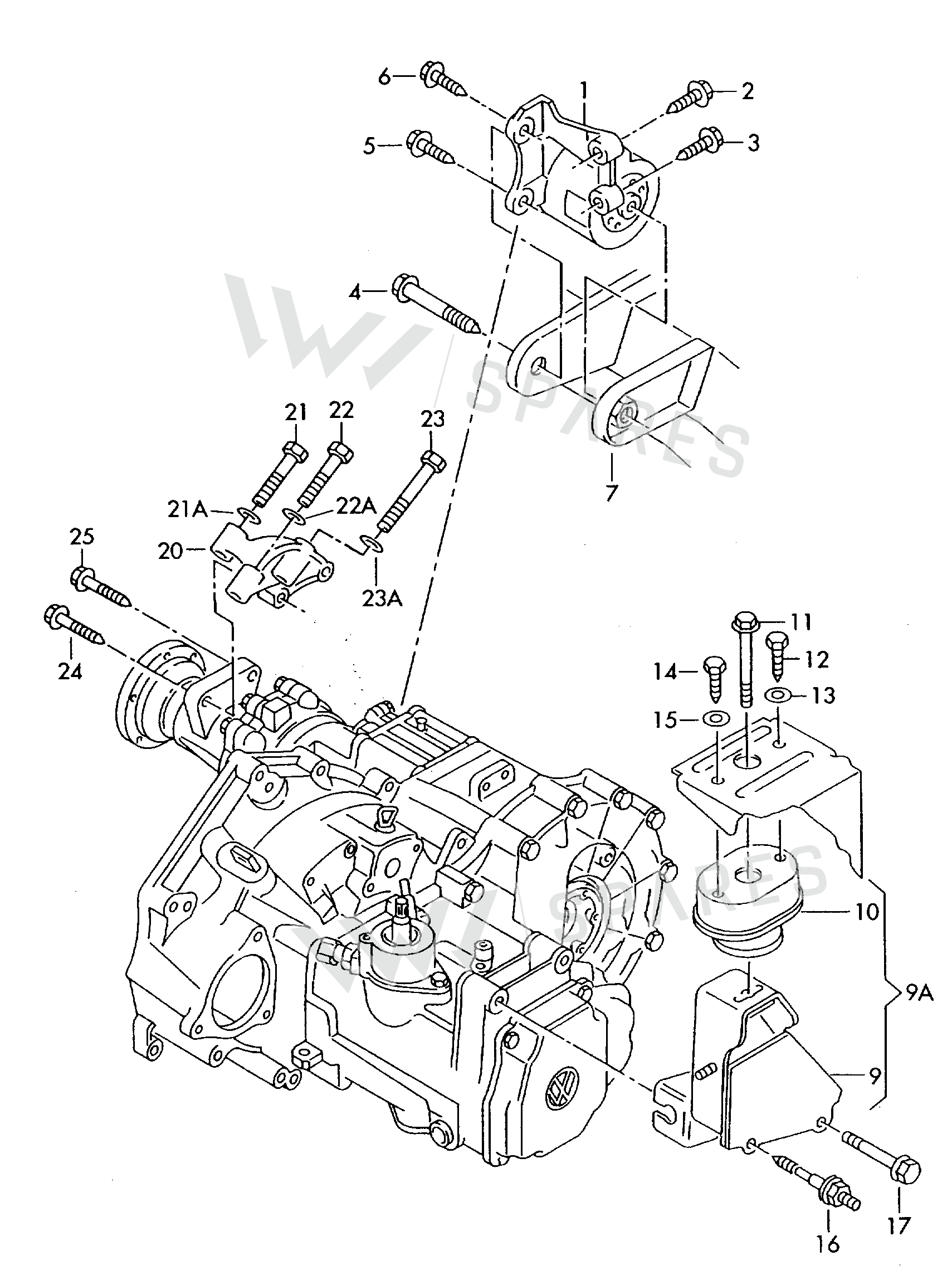

42 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly13
Vehicle fitment table42
Europe (32)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| TRANSPORTER SYNCRO | 1996-2003 | 23, 19 | 1 | |
| GOLF VAR./VENTO | 1996-1999 | 54 | 1 | AEY |
| POLO CLASSIC/VARIANT | 1996-1999 | 11, 54 | 2 | AEX,AEE,AKV, |
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 12 | 1 | |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 28 | 2 | AEX |
| Golf | 1996-1997 | 11, 54 | 2 | AEX,APQ |
| Transporter 96 | 1996-1996 | 19, 17 | 1 | |
| CADDY-KOMBI/KASTEN | 1995-2003 | 9 | 3 | AEX,AEE,AKV, |
| INCA (SEAT-VAN) | 1995-2003 | 9 | 3 | AEX,AEE,AKV, |
| Polo Classic 96 | 1995-1996 | 11 | 2 | AEX |
| Golf 96 | 1995-1996 | 11, 54 | 2 | AEX |
| Golf Var./Vento 96 | 1995-1996 | 54 | 1 | AEY, |
| TRANSPORTER SYNCRO | 1995-1995 | 23 | 1 | |
| Derby (MEX) | 1994-1996 | 32 | 2 | |
| Passat Var.syncro | 1994-1996 | 7 | 4 | CSR |
| Golf/Ecomatic 95 | 1994-1995 | 11 | 1 | ABD,AEA,ABU |
| Golf Var./Vento 95 | 1994-1995 | 11 | 1 | ABD,AEA,ABU |
| Golf/Var. syncro | 1993-1997 | 7 | 4 | CSR |
| Jetta GLX 94 | 1993-1994 | 11 | 1 | ABD,ABU |
| Ibiza/Cordoba (SEAT) | 1992-1996 | 9 | 6 | |
| Transporter syncro | 1992-1995 | 23 | 1 | |
| TOLEDO SEAT | 1991-1996 | 12 | 1 | |
| GOLF/Ecomatic | 1991-1994 | 11 | 2 | ABD,ABU |
| Passat syncro | 1991-1993 | 7 | 1 | |
| Jetta | 1989-1991 | 15 | 1 | |
| Jetta 89 | 1988-1989 | 15 | 1 | |
| GOLF,JETTA (MEX) | 1987-1992 | 11 | 2 | |
| Jetta 88 | 1987-1988 | 15, 6 | 1 | |
| Jetta 87 | 1986-1987 | 15, 6 | 1 | |
| Golf/Jetta syn, Rallye | 1985-1991 | 7, 5 | 3 | |
| Jetta 86 | 1985-1986 | 15, 6 | 1 | |
| Jetta 85 | 1984-1985 | 15, 6 | 1 |
Other markets (9)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Eurovan | 1998-2003 | 19, 17 | 1 | |
| Eurovan 98 | 1997-1998 | 19, 17 | 1 | |
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 27 | 2 | ADC,ADD,AAZ, |
| Eurovan | 1996-1997 | 19, 17 | 1 | |
| Eurovan F>>70-T 96 | 1995-1995 | 13, 19 | 1 | |
| Eurovan 95 | 1994-1995 | 13, 15 | 1 | |
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 27 | 2 | AAZ,ABA,ACC, |
| Eurovan | 1991-1994 | 13, 15 | 1 | |
| Golf/Jetta "USA","MEX"89>92 | 1988-1992 | 11 | 2 | MANUAL |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 701 platform | 19 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: TRANSPORTER SYNCRO 1996-2003; GOLF VAR./VENTO 1996-1999; POLO CLASSIC/VARIANT 1996-1999; TOLEDO SEAT MOD.97>99 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; Golf 1996-1997; Transporter 96 1996-1996; CADDY-KOMBI/KASTEN 1995-2003; INCA (SEAT-VAN) 1995-2003; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; TRANSPORTER SYNCRO 1995-1995; Derby (MEX) 1994-1996; Passat Var.syncro 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf/Var. syncro 1993-1997; Jetta GLX 94 1993-1994; Ibiza/Cordoba (SEAT) 1992-1996; Transporter syncro 1992-1995; TOLEDO SEAT 1991-1996; GOLF/Ecomatic 1991-1994; Passat syncro 1991-1993; Jetta 1989-1991; Jetta 89 1988-1989; GOLF,JETTA (MEX) 1987-1992; Jetta 88 1987-1988; Jetta 87 1986-1987; Golf/Jetta syn, Rallye 1985-1991; Jetta 86 1985-1986; Jetta 85 1984-1985; Eurovan 1998-2003; Eurovan 98 1997-1998; Golf/Jetta "USA","Mex"97>99 1996-1998; Eurovan 1996-1997; Eurovan F>>70-T 96 1995-1995; Eurovan 95 1994-1995; Golf/Jetta "USA","MEX"93>96 1992-1996; Eurovan 1991-1994; Golf/Jetta "USA","MEX"89>92 1988-1992; 701 platform.
