N10113601 Hex Collared Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

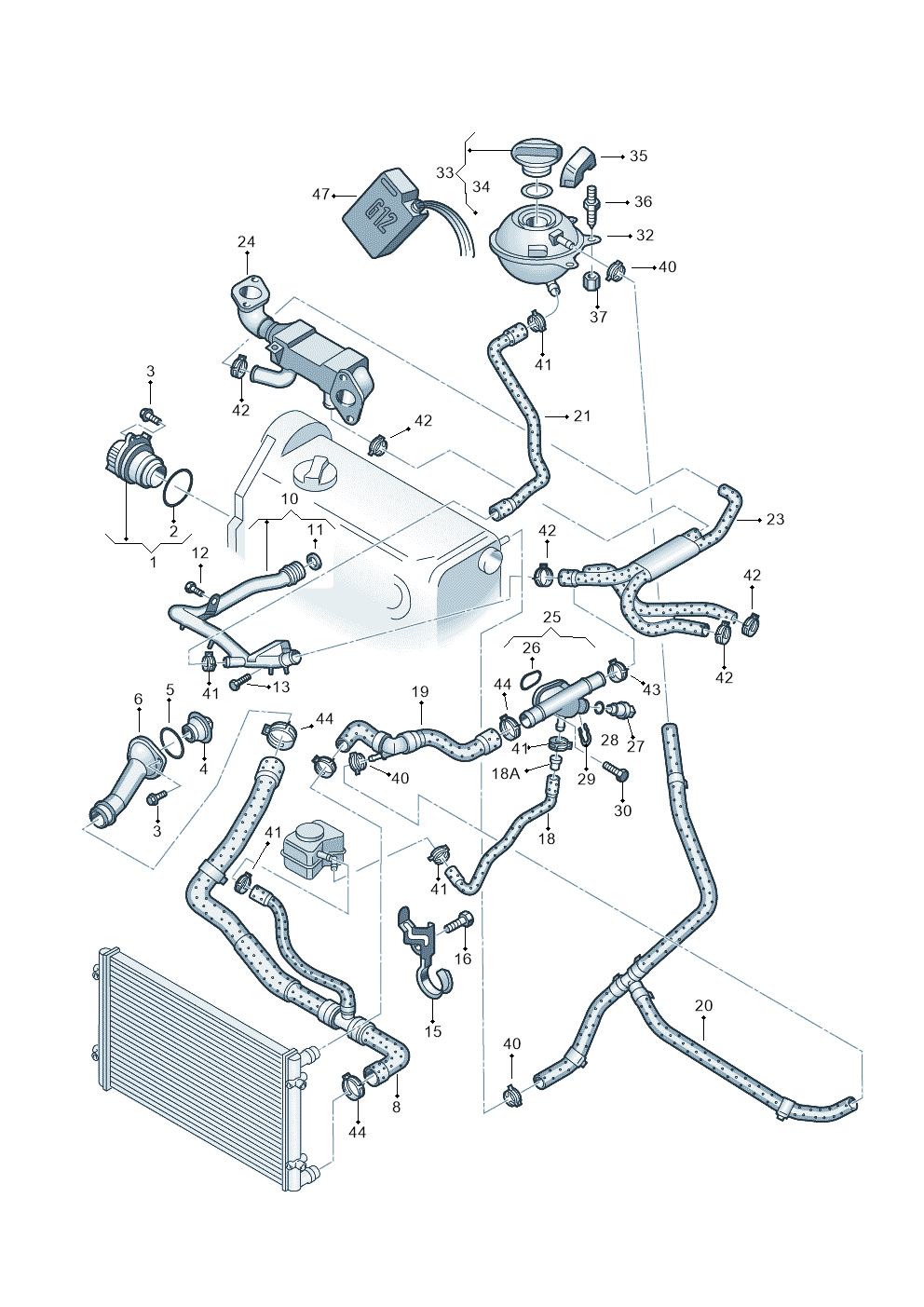

29 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly38
- 1Pump 045121011B
- 1Pump 045121011F
- 1Pump 045121011BV
- 1Pump 045121011BX
- 1Pump 045121011FX
- 2Seal Ring 045121119A
- 3Bolt N90945001
- 4Coolant Rg 044121113
- 5Seal Ring 038121119B
- 6Connection 045121121A
- 8Hose 6E0122051B
- 8Hose 6E0122051C
- 10Water Pipe 045121065A
- 11Seal Ring 06B121687
- 12Bolt N0102276
- 13Screw N90588201
- 15Bracket 6E0121443
- 18ACap Closure 1J0121324
- 23Hose 6E0121156
- 23Hose 6E0121156B
- 25Flange 038121132C
- 26Seal Ring 037121688
- 28Seal Ring N90316801
- 29Spring 032121142
- 30Bolt N90743601
- 30Bolt N10414501
- 33Cover 1H0121321D
- 34Seal Ring 1H0121687A
- 35Part 1H0121422D
- 36Bolt N90847201
- 37Part 811807577C
- 40Clamp N90686701
- 41Clamp N90686901
- 42Clamp N90687001
- 43Clamp N90687101
- 44Clamp N90687201
- 47Cool Add G012A8FM1
- 47Cool Add G012A8FM8
Vehicle fitment table29
Europe (29)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| LUPO/3L TDI | 2003-2005 | 16, 5 | 1 | MA7 |
| AROSA | 2003-2004 | 5 | 3 | |
| AUDI A2 | 2000-2005 | 5 | 3 | G0P |
| CORDOBA/VARIO | 1999-2002 | 5 | 3 | |
| IBIZA | 1999-2002 | 5 | 3 | |
| POLO CLASSIC/VARIANT | 1999-2001 | 5 | 3 | |
| POLO | 1999-2001 | 5 | 3 | |
| LUPO/3L TDI | 1998-2003 | 16, 5 | 1 | |
| AROSA | 1997-2003 | 5 | 3 | |
| POLO CLASSIC/VARIANT | 1996-1999 | 5 | 3 | |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 5 | 3 | |
| CADDY-KOMBI/KASTEN | 1995-2003 | 5 | 3 | |
| INCA (SEAT-VAN) | 1995-2003 | 5 | 3 | |
| Polo Classic 96 | 1995-1996 | 5 | 3 | |
| Golf 96 | 1995-1996 | 5 | 3 | |
| Golf Var./Vento 96 | 1995-1996 | 5 | 3 | |
| POLO | 1994-1999 | 5 | 3 | |
| Golf/Ecomatic 95 | 1994-1995 | 5 | 3 | |
| Golf Var./Vento 95 | 1994-1995 | 5 | 3 | |
| Jetta GLX 94 | 1993-1994 | 5 | 3 | |
| Ibiza/Cordoba (SEAT) | 1992-1996 | 5 | 3 | |
| GOLF/Ecomatic | 1991-1994 | 5 | 3 | |
| Polo/Polo Coupe | 1990-1994 | 5 | 3 | |
| Jetta | 1989-1991 | 5 | 3 | |
| Jetta 89 | 1988-1989 | 5 | 3 | |
| Jetta 88 | 1987-1988 | 5 | 3 | |
| Jetta 87 | 1986-1987 | 5 | 3 | |
| Jetta 86 | 1985-1986 | 5 | 3 | |
| POLO/COUPE/DERBY | 1981-1990 | 5 | 3 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: LUPO/3L TDI 2003-2005; AROSA 2003-2004; AUDI A2 2000-2005; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; POLO CLASSIC/VARIANT 1999-2001; POLO 1999-2001; LUPO/3L TDI 1998-2003; AROSA 1997-2003; POLO CLASSIC/VARIANT 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; CADDY-KOMBI/KASTEN 1995-2003; INCA (SEAT-VAN) 1995-2003; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; POLO 1994-1999; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Jetta GLX 94 1993-1994; Ibiza/Cordoba (SEAT) 1992-1996; GOLF/Ecomatic 1991-1994; Polo/Polo Coupe 1990-1994; Jetta 1989-1991; Jetta 89 1988-1989; Jetta 88 1987-1988; Jetta 87 1986-1987; Jetta 86 1985-1986; POLO/COUPE/DERBY 1981-1990.
