N10156004 Hexagon Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

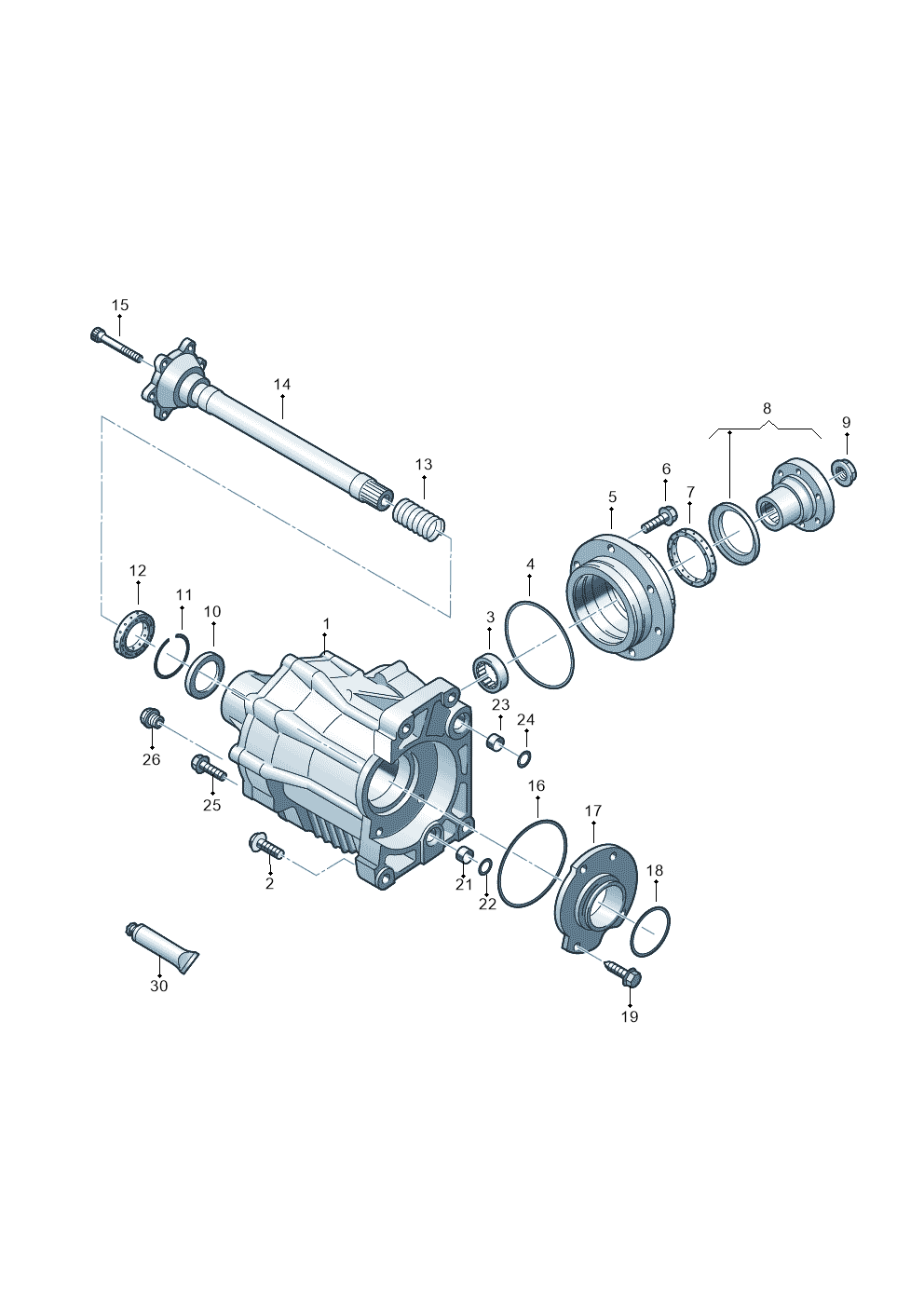

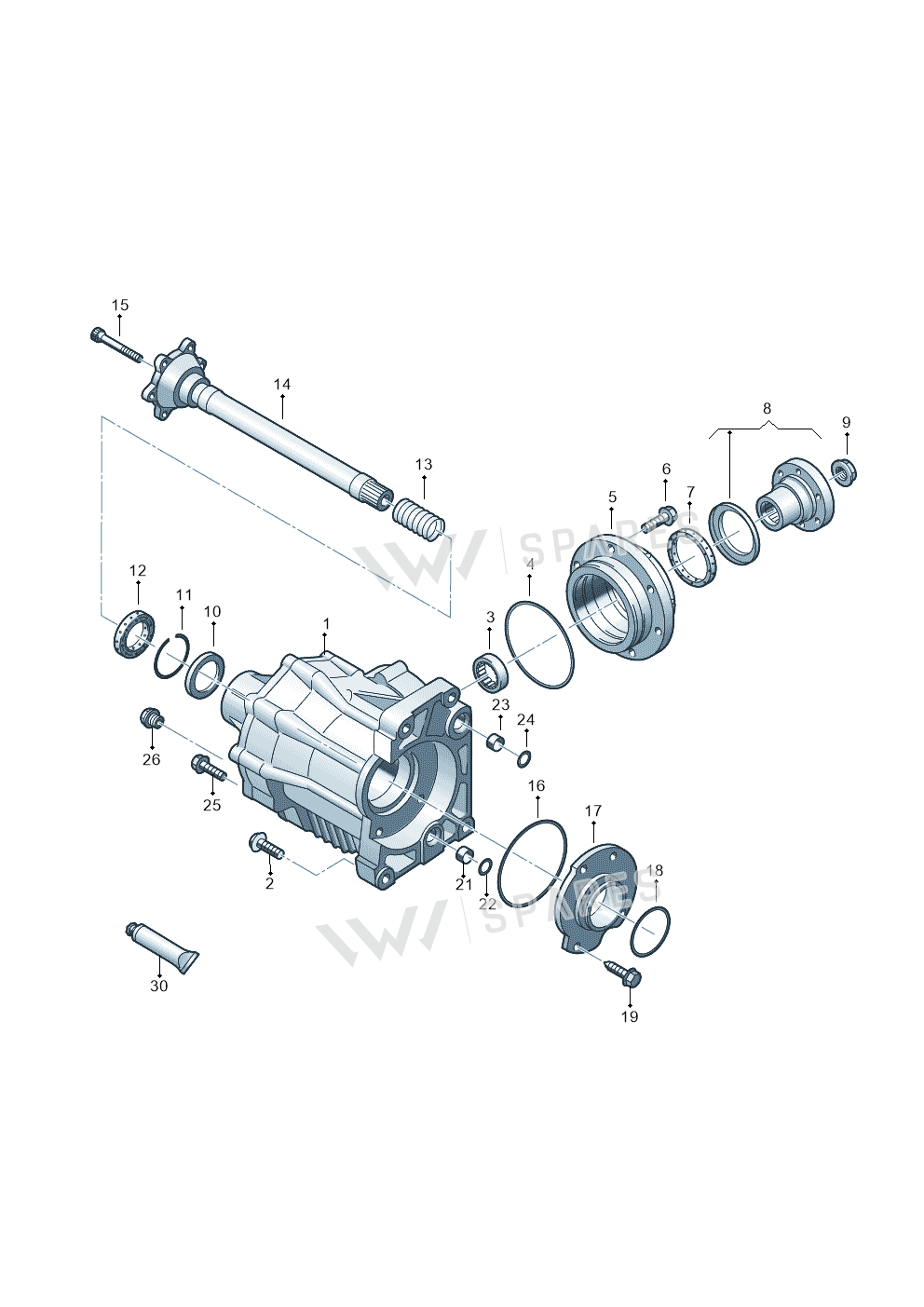

23 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly18
- 1Gearbox 02N409053
- 3Sleeve 02N409139
- 4Seal Ring 02N409203B
- 6Bolt N10128110
- 7Seal 02N409189
- 8Flange 02N409271
- 9Part N90443801
- 10Mounting 02N409144
- 11Ring N0122861
- 12Seal Washer 016409399B
- 13Press Spring 02N409215
- 14FlanshaftRight02N409356C
- 15Screw 097409359
- 16Seal Ring 02N409203A
- 17Cover 02N409365A
- 25Bolt N10404402
- 26Screw 02M409057
- 30Seal Comp AMV18820003
Vehicle fitment table23
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| SHARAN/4MOTION | 2005- | 19 | 4 | G0L | |
| ALHAMBRA/4MOTION | 2005- | 17 | 4 | ||
| Touareg | 2005-2006 | 5 | 4 | ||
| Touareg | 2003-2005 | 5, 8 | 4 | ||
| SHARAN/4MOTION | 2002-2005 | 19 | 4 | G0L | |
| ALHAMBRA/4MOTION | 2002-2005 | 17 | 4 | ||
| SHARAN/4MOTION | 2000-2002 | 19 | 4 | G0L | |
| ALHAMBRA/4MOTION | 2000-2002 | 17 | 4 |
Other markets (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| parati | 2010- | 10, 8A | 1 | ||
| GOL 2P/4P M.06> | 2005- | 10, 11 | 1 | ||
| SAVEIRO M.06> | 2005- | 10, 8A | 1 | ||
| PARATI M.06> | 2005- | 10, 8A | 1 | ||
| GOL "CN"03> | 2003- | 17 | 1 | ||
| GOL 2P/4P | 2002-2006 | 10, 11 | 1 | ||
| SAVEIRO | 2002-2006 | 10, 8A | 1 | ||
| PARATI 4P | 2002-2006 | 10, 11 | 1 | ||
| GOL SPECIAL 2P | 2002-2005 | 10, 11 | 1 | ||
| NOVA PARATI | 1995-2002 | 10, 11, 8A | 1 | ||
| NOVO GOL/SAVEIRO | 1994-2002 | 10, 11, 8A |
Platform / generic diagrams (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 325 platform | 10, 13 | ||||
| 7L6 platform | 5, 8 | 4 | |||
| 377 platform | 10, 11 | 1 | |||
| 377 platform | 17 | 1 | PR:573+658+ |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: SHARAN/4MOTION 2005-; ALHAMBRA/4MOTION 2005-; Touareg 2005-2006; Touareg 2003-2005; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002; parati 2010-; GOL 2P/4P M.06> 2005-; SAVEIRO M.06> 2005-; PARATI M.06> 2005-; GOL "CN"03> 2003-; GOL 2P/4P 2002-2006; SAVEIRO 2002-2006; PARATI 4P 2002-2006; GOL SPECIAL 2P 2002-2005; NOVA PARATI 1995-2002; NOVO GOL/SAVEIRO 1994-2002; 325 platform; 7L6 platform; 377 platform.
