N10160201 Hex Collared Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

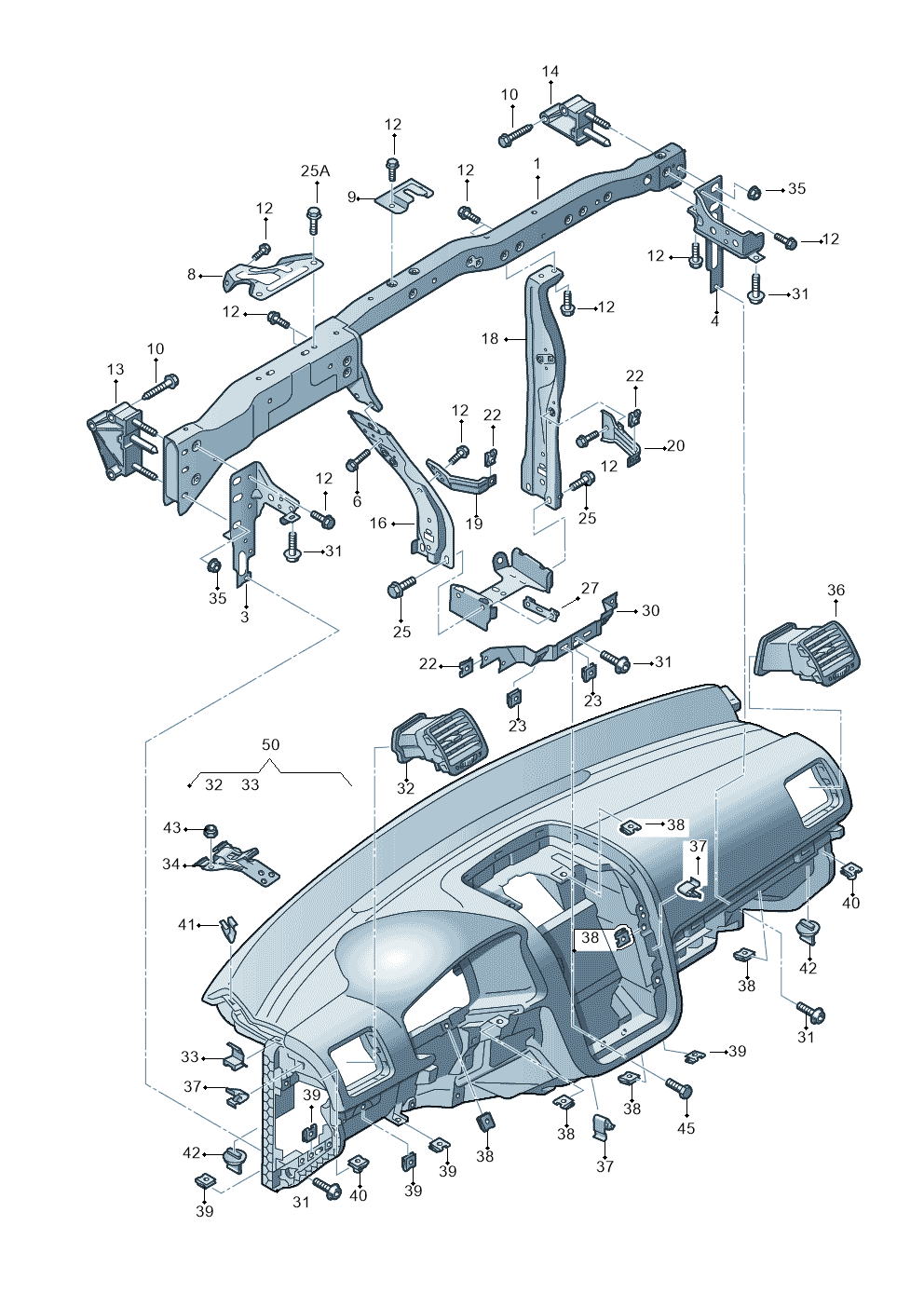

24 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly46
- 1Cross Member 1K2858045P
- 1Cross Member 1K1858045P
- 3Retaining 1K2858505D
- 3Retaining 1K1858505F
- 4Retaining 1K2858506D
- 4Retaining 1K1858506F
- 8Support 1K2858765
- 8Support 1K1858765
- 9Plate 1K0858037
- 10Bolt N10604402
- 12Bolt N90532901
- 12Bolt N91079901
- 13Bracket 1K2857021D
- 13Bracket 1K1857021D
- 14Bracket 1K2857022D
- 14Bracket 1K1857022D
- 16Brace 1K2858783C
- 16Brace 1K1858783B
- 18Brace 1K2858784C
- 18Brace 1K1858784C
- 19Retaining 1K2857953
- 19Retaining 1K1857953
- 20Retaining 1K2857954
- 20Retaining 1K1857954
- 22Part N90327504
- 23Part N90698801
- 25Bolt N91033301
- 25ABolt N90930503
- 27Part WHT000020
- 30Retaining 1K2858965
- 30Retaining 1K1858965
- 31Screw N90729002
- 33Clip 1K0867961
- 34Clip 1K0857117B
- 34Clip 1K0857117
- 35Ut Hexagon Nut Self-locking Hexagon Nut N02300213
- 35Collar Nut N90880201
- 37Clip 1K0867388A
- 38Part N90698901
- 40Part N90356203
- 41Clip 1J0858213
- 42Bungs 1T0857489
- 43Part N90663603
- 45Bolt N10157902
- 50Dashboard 1K2857001A
- 50Dashboard 1K1857001B
Vehicle fitment table26
Europe (16)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Leon Stylance | 2010-2012 | 6 | 2 | ||
| GOLF PLUS 05> | 2005- | 16 | 2 | ||
| LEON 06> | 2005- | 6, 15 | 2 | ||
| Audi A3/S3/quattro | 2005-2007 | 3 | 1 | ||
| Touareg | 2005-2006 | 9 | 2 | ||
| TOLEDO 05> | 2004- | 6, 15 | 1 | ||
| ALTEA | 2004-2006 | 6, 15 | 1 | ||
| Phaeton (lang) | 2003-2006 | 6 | 1 | ||
| Touareg | 2003-2005 | 9 | 2 | "MEX" | |
| GOLF | 2003-2005 | 6 | 2 | ||
| TRANSPORTER | 2003-2005 | 13 | 2 | ||
| SHARAN/4MOTION | 2002-2005 | 35 | 1 | G0K,G0L,G0M,3HA,3HB,3HG,E0A,E0V,E5C,E03 | |
| ALHAMBRA/4MOTION | 2002-2005 | 35 | 1 | ||
| caddy combi./del.van | 1998-2005 | 5, 11 | 2 | ||
| CADDY-KOMBI/KASTEN | 1995-2003 | 5 | 4 | ||
| INCA (SEAT-VAN) | 1995-2003 | 5 | 4 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Jetta "USA"05> | 2005- | 6 | 2 | "USA" | 4UM |
| BORA-FAW "CN" 06> | 2005- | 6 | 2 | ||
| Golf/Rabbit | 2005-2007 | 6 | 2 | ||
| TOURAN (SVW) "CN"04> | 2004- | 15 | 1 | ||
| POLO CLASS./PL. "ZA" | 1996-2003 | 11 | 2 |
Platform / generic diagrams (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 7L6 platform | 9 | 2 | |||
| 6K0 platform | 11 | 2 | |||
| 6K0 platform | 5, 11 | 2 |
Listed without a diagram position (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| SHARAN/4MOTION | 2000-2002 | 4 | |||
| ALHAMBRA/4MOTION | 2000-2002 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: Leon Stylance 2010-2012; GOLF PLUS 05> 2005-; LEON 06> 2005-; Audi A3/S3/quattro 2005-2007; Touareg 2005-2006; TOLEDO 05> 2004-; ALTEA 2004-2006; Phaeton (lang) 2003-2006; Touareg 2003-2005; GOLF 2003-2005; TRANSPORTER 2003-2005; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; caddy combi./del.van 1998-2005; CADDY-KOMBI/KASTEN 1995-2003; INCA (SEAT-VAN) 1995-2003; Jetta "USA"05> 2005-; BORA-FAW "CN" 06> 2005-; Golf/Rabbit 2005-2007; TOURAN (SVW) "CN"04> 2004-; POLO CLASS./PL. "ZA" 1996-2003; 7L6 platform; 6K0 platform.
