N10196102 Oval Hexagon Socket Head Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

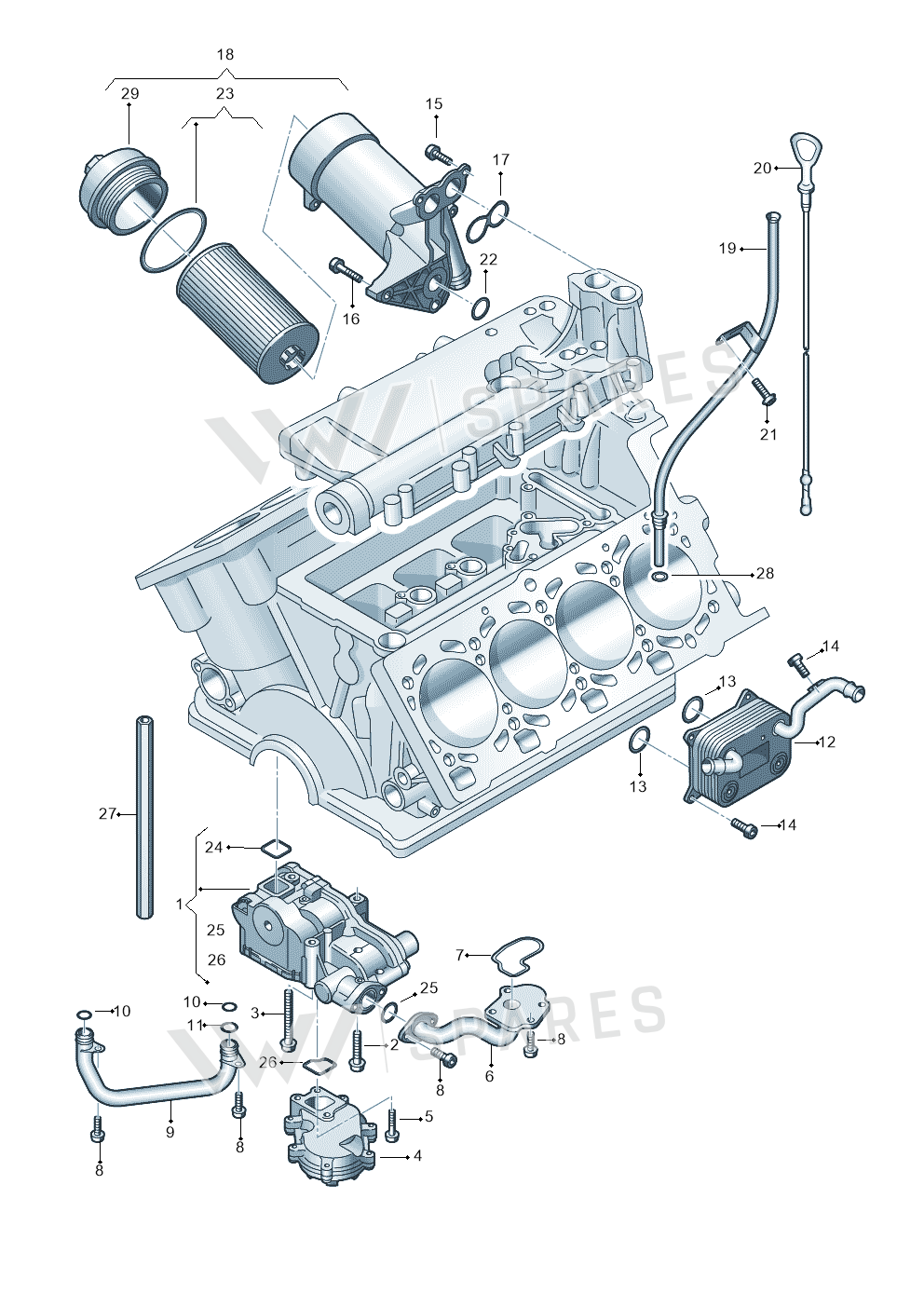

46 vehiclesOval Hexagon Socket Head Bolt — locate Oval Hexagon Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly30
- 1Oil Pump 079115103L
- 2Screw N91016101
- 3Screw N91016201
- 4Connection 079115155N
- 5Screw N10554005
- 6Oil Pipe 079115277J
- 7Seal 079103121S
- 8Bolt N10196103
- 9Oil Pipe 079115278E
- 10Seal Ring N90422301
- 11Seal Ring N90956601
- 12Oil Cooler 079117021M
- 13Seal Ring N90832501
- 13Seal Ring 079103121AD
- 15Screw N91124501
- 15Screw N10242602
- 16Bolt N10124306
- 17Seal 079115111A
- 18Bracket 079115401K
- 19Tube 079115630F
- 20Oil Dipsti 079115607B
- 21Bolt N10405604
- 22Seal Ring N90959701
- 23Filterelem 079198405A
- 24Seal 079115131
- 25Seal 079115131A
- 26Seal 079115131B
- 27Shaft 079115120F
- 28Seal Ring 034115427B
- 29Cover 077115433B
Vehicle fitment table46
Europe (33)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A4/S4/Av./qu. 05> | 2005- | 8, 9 | 8 | T79 | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 8, 15 | 8 | T79 | |
| Phaeton (lang) | 2003-2006 | 2 | 7 | T41 | |
| Touareg | 2003-2005 | 2 | 7 | T41 | |
| LUPO/3L TDI | 2003-2005 | 28, 18 | 2 | ||
| AROSA | 2003-2004 | 18 | X | G0C | |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 8, 15 | 8 | T79 | |
| SHARAN/4MOTION | 2002-2005 | 40, 19 | 1 | L0 | |
| ALHAMBRA/4MOTION | 2002-2005 | 40 | 1 | ||
| POLO | 2001-2005 | 19 | 2 | AMF,BAY,ATD, | |
| Audi A4/S4/Av./qu. | 2001-2004 | 8, 15 | 8 | T79 | |
| Audi A6/Wagon/quattro | 2001-2004 | 12, 10 | 2 | ||
| Audi A6 Allroad qu. | 2000-2005 | 8, 28 | 8 | T79 | |
| AUDI A3/S3/QUATTRO | 2000-2003 | 7 | 4 | 0A1 | |
| SHARAN/4MOTION | 2000-2002 | 40, 19 | 1 | L0 | |
| ALHAMBRA/4MOTION | 2000-2002 | 40 | 1 | ||
| FABIA/COMBI | 1999-2004 | 2 | 2 | MN7 | |
| Audi A8 quattro | 1999-2002 | 7 | 4 | ||
| POLO | 1999-2001 | 18 | X | G0 | |
| LUPO/3L TDI | 1998-2003 | 18, 28 | X | ||
| AUDI A8 | 1998-2002 | 7 | 4 | ||
| AROSA | 1997-2003 | 18 | X | ||
| Audi A6/Avant | 1997-2001 | 10, 15 | 8 | ||
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 12, 10 | 2 | ||
| TRANSPORTER SYNCRO | 1996-2003 | 30 | 1 | ||
| AUDI A3/S3/QUATTRO | 1996-2000 | 7 | 4 | ||
| ALHAMBRA | 1996-2000 | 30 | 1 | ||
| Audi A8 | 1996-1998 | 7 | 4 | ||
| Audi A8 qu. | 1996-1998 | 7 | 4 | ||
| Transporter 96 | 1996-1996 | 30 | 1 | ||
| SHARAN/SYNCRO | 1995-2000 | 30, 19 | 1 | ||
| TRANSPORTER SYNCRO | 1995-1995 | 30 | 1 | ||
| Transporter syncro | 1992-1995 | 30 | 1 |
Other markets (12)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 8, 7 | 8 | ||
| AUDI A4 "CN."06> | 2005- | 9 | 3 | ||
| AUDI A3 "BR."M.06> | 2005-2006 | 7 | 4 | ||
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 9 | 3 | ||
| AUDI A3-BRASIL. | 2000-2005 | 7 | 4 | ||
| AUDI A6L CHINA | 1999-2005 | 12, 10 | 2 | ||
| Eurovan | 1998-2003 | 30 | 1 | ||
| Eurovan 98 | 1997-1998 | 30 | 1 | ||
| Eurovan | 1996-1997 | 30 | 1 | ||
| Eurovan F>>70-T 96 | 1995-1995 | 30 | 1 | ||
| Eurovan 95 | 1994-1995 | 30, 20 | 1 | ||
| Eurovan | 1991-1994 | 30 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1J0 platform | 7 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
Oval Hexagon Socket Head Bolt is fitted on: Audi A4/S4/Av./qu. 05> 2005-; Audi A6/S6/Avant/qu. 05> 2004-; Phaeton (lang) 2003-2006; Touareg 2003-2005; LUPO/3L TDI 2003-2005; AROSA 2003-2004; Audi A4/S4 Cabrio./qu. 2002-2006; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; POLO 2001-2005; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Audi A6 Allroad qu. 2000-2005; AUDI A3/S3/QUATTRO 2000-2003; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002; FABIA/COMBI 1999-2004; Audi A8 quattro 1999-2002; POLO 1999-2001; LUPO/3L TDI 1998-2003; AUDI A8 1998-2002; AROSA 1997-2003; Audi A6/Avant 1997-2001; Audi A6/Av.qu.F4B-W-> 1997-2001; TRANSPORTER SYNCRO 1996-2003; AUDI A3/S3/QUATTRO 1996-2000; ALHAMBRA 1996-2000; Audi A8 1996-1998; Audi A8 qu. 1996-1998; Transporter 96 1996-1996; SHARAN/SYNCRO 1995-2000; TRANSPORTER SYNCRO 1995-1995; Transporter syncro 1992-1995; AUDI A6L "CN"05> 2005-; AUDI A4 "CN."06> 2005-; AUDI A3 "BR."M.06> 2005-2006; AUDI A4/AV./QU. "CN"03>05 2003-2005; AUDI A3-BRASIL. 2000-2005; AUDI A6L CHINA 1999-2005; Eurovan 1998-2003; Eurovan 98 1997-1998; Eurovan 1996-1997; Eurovan F>>70-T 96 1995-1995; Eurovan 95 1994-1995; Eurovan 1991-1994; 1J0 platform.
