N10196401 Oval Hexagon Socket Head Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

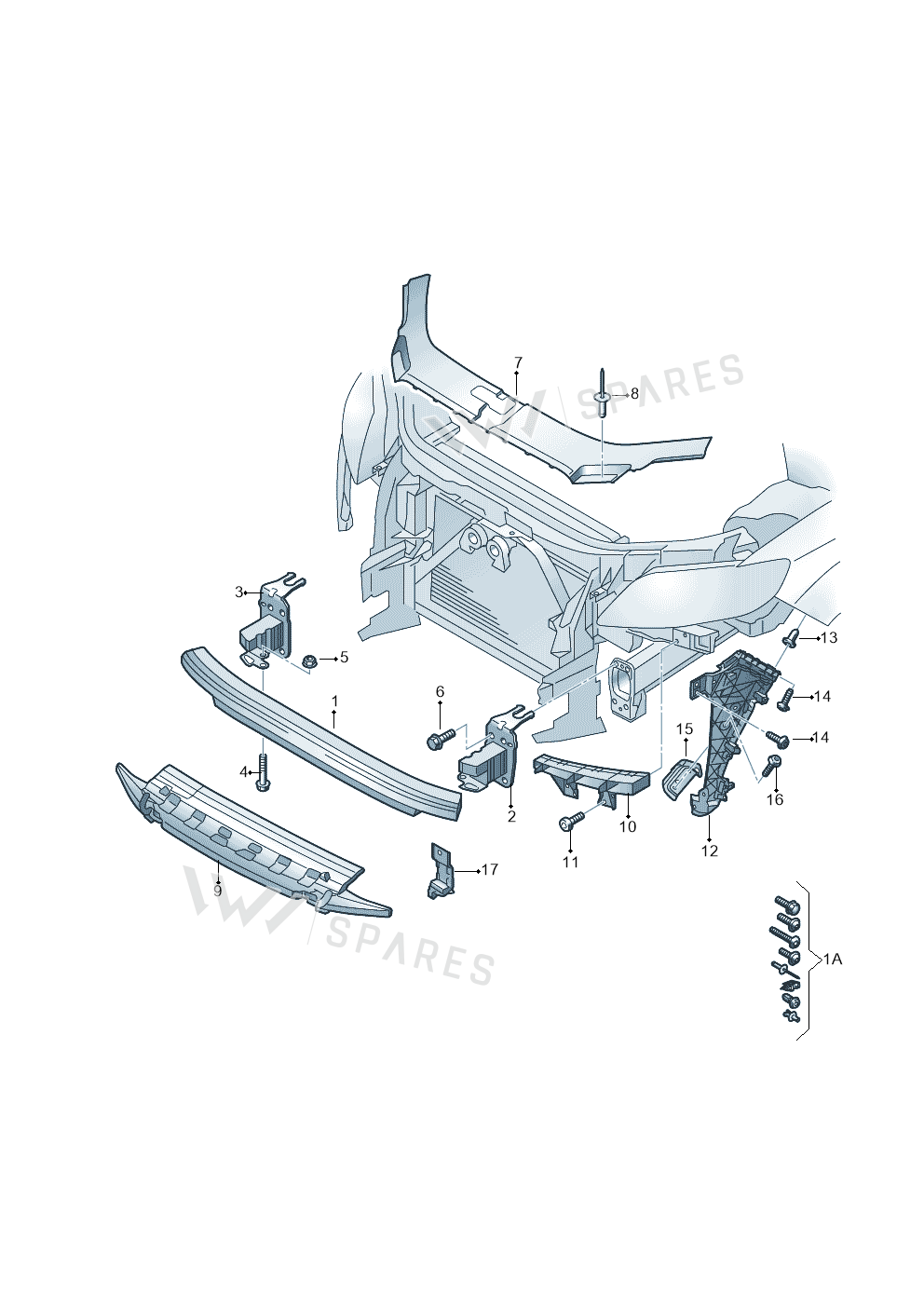

12 vehiclesOval Hexagon Socket Head Bolt — locate Oval Hexagon Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly25
- 1Holder 4L0807113A
- 1AFixing Set 4L0098623
- 2HolderLeft4L0807133B
- 2HolderLeft4L0807133A
- 3HolderRight4L0807134D
- 3HolderRight4L0807134C
- 4Bolt N10680201
- 5Ut"hex Nut Self-locking With Washer Hex Nut N90610003
- 6Bolt N10595601
- 7Cover 4L0807081
- 8Spring Rivet 4D0807300B
- 9Filler Piece 4L0807550C
- 9Filler Piece 4L0807550E
- 9Filler Piece 4L0807550F
- 9Filler Piece 4L0807550D
- 10SupportRight4L0807334A
- 10SupportLeft4L0807333A
- 11Screw N91034301
- 12PieceRight4L0807284B
- 12PieceLeft4L0807283B
- 13Part N90821401
- 14Bolt N90897401
- 15BracketRight4L0807054
- 15BracketLeft4L0807053
- 17Bracket 4L0807777
Vehicle fitment table12
Europe (12)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 16 | 4 |
| Ibiza Reference | 2008-2011 | 15, 14 | 4 |
| ALTEA 07> | 2006- | 9, 12 | 2 |
| Audi Q7 07> | 2006- | 13, 15 | 4 |
| LEON 06> | 2005- | 9, 12 | 2 |
| IBIZA 06> | 2005- | 5, 12 | 4 |
| CORDOBA 06> | 2005- | 5, 12 | 4 |
| TOLEDO 05> | 2004- | 9, 12 | 2 |
| ALTEA | 2004-2006 | 9, 12 | 2 |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 32 | 3 |
| CORDOBA/SE241 | 2002-2005 | 5, 12 | 4 |
| IBIZA | 2001-2005 | 5, 12 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
Oval Hexagon Socket Head Bolt is fitted on: Audi Q7 qu. 3.0 TDI 2009-2015; Ibiza Reference 2008-2011; ALTEA 07> 2006-; Audi Q7 07> 2006-; LEON 06> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; TOLEDO 05> 2004-; ALTEA 2004-2006; Audi A4/S4 Cabrio./qu. 2002-2006; CORDOBA/SE241 2002-2005; IBIZA 2001-2005.
