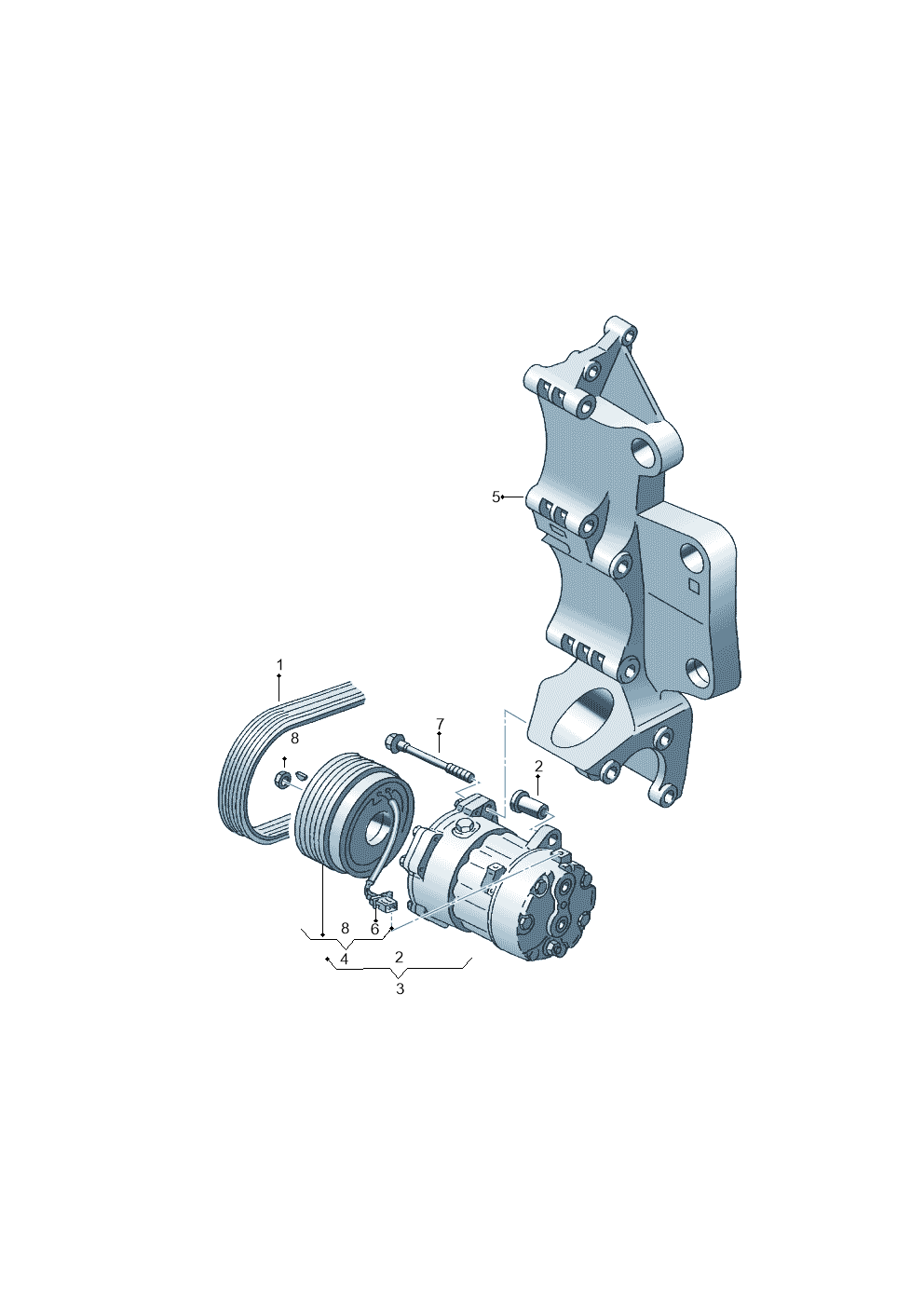

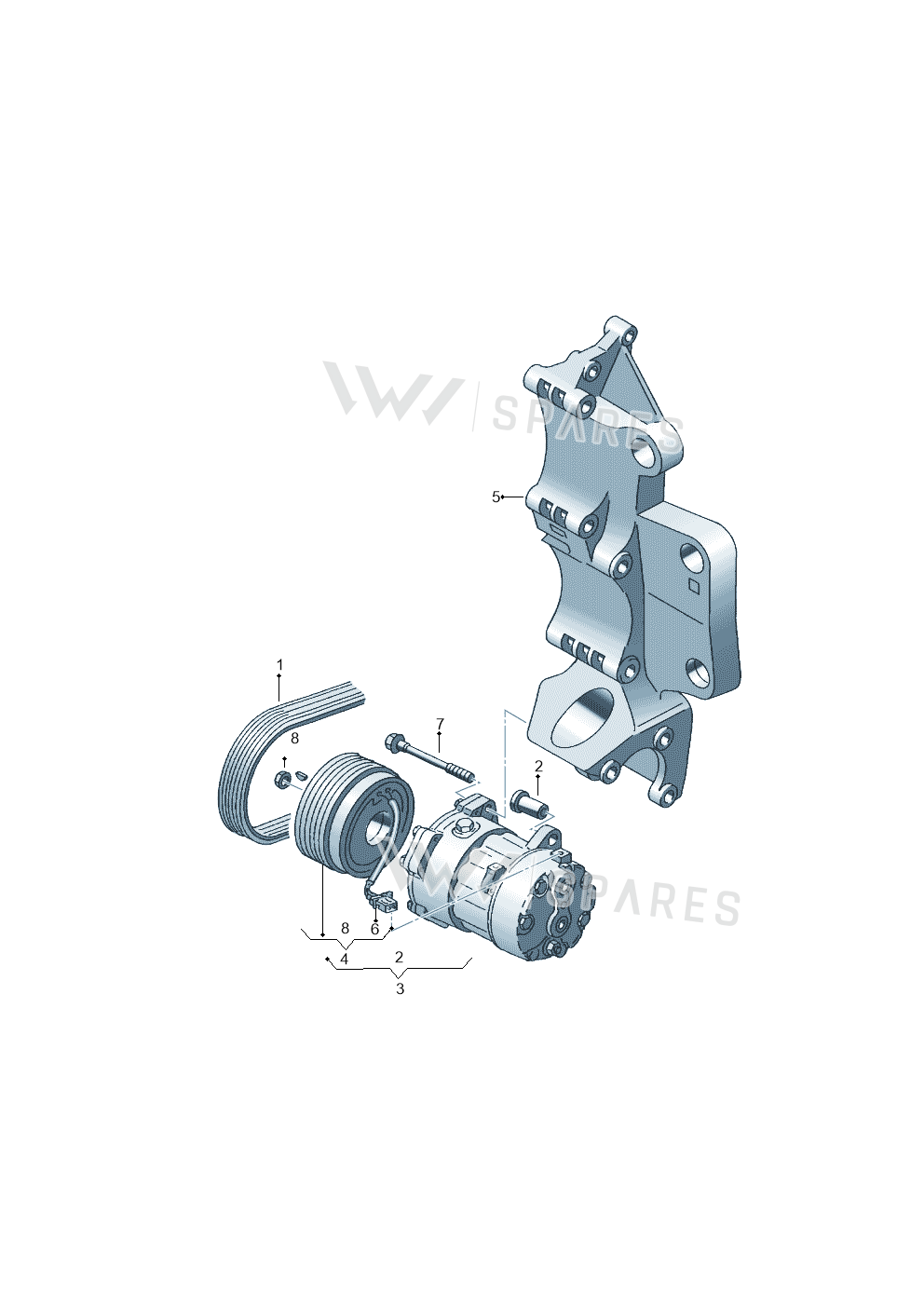

Hex Collared Bolt exploded parts diagram — ALHAMBRA/4MOTION · 2005-, position 7
Exploded view
ALHAMBRA/4MOTION · 2005- · position 7Full diagram ↓
N10209801

N10209801 Hex Collared Bolt

£1.65
£1.36 excl. VAT

This is a catalog item (special order). Delivery time may vary.

Availability: Available to order

Special order item. Delivery time may vary.

About This Part

Available for Purchase

This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.

Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

29 vehicles

Hex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly8
Vehicle fitment table29

Europe (25)

VehicleYearsPos.QtyRemarkPR
ALHAMBRA/4MOTION2005-72
ALHAMBRA/4MOTION2002-200572
GOLF/VAR./4MOT. A4 022001-200214, 81G0
Jetta Wagon 022001-2002141AHW,AEH,AKL,
Jetta Wagon2001-200114, 81AHF,AQY,AKL,
ALHAMBRA/4MOTION2000-200272
POLO1999-200192
Golf1998-200014, 81AHW,AKQ,AE
ALHAMBRA1996-2000112
AUDI A3/S3/QUATTRO1996-2000141
GOLF VAR./VENTO1996-199911, 82
Golf1996-199711, 82
Transporter 961996-19967, 112
Golf 961995-199611, 82
Golf Var./Vento 961995-199611, 82
POLO1994-199992
Passat1994-199711, 82
Golf Cabrio1994-199611, 82
Passat Var.syncro1994-199611, 82
Golf/Ecomatic 951994-199511, 82
Golf Var./Vento 951994-199511, 82
Golf/Var. syncro1993-199711, 82
Jetta GLX 941993-199411, 82
GOLF/Ecomatic1991-199411, 82
Passat1991-199382

Other markets (4)

VehicleYearsPos.QtyRemarkPR
POLO CLASSIC "CN"03>062003-2006211BCD
POLO CLASSIC (AUS) "CN"03>062003-2006211BCD
POLO "CN"02>062002-2006211BCD
Eurovan1996-19977, 112

Diagrams & fitment data powered by oemdiagrams.com

Hex Collared Bolt is fitted on: ALHAMBRA/4MOTION 2005-; ALHAMBRA/4MOTION 2002-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; ALHAMBRA/4MOTION 2000-2002; POLO 1999-2001; Golf 1998-2000; ALHAMBRA 1996-2000; AUDI A3/S3/QUATTRO 1996-2000; GOLF VAR./VENTO 1996-1999; Golf 1996-1997; Transporter 96 1996-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; POLO 1994-1999; Passat 1994-1997; Golf Cabrio 1994-1996; Passat Var.syncro 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf/Var. syncro 1993-1997; Jetta GLX 94 1993-1994; GOLF/Ecomatic 1991-1994; Passat 1991-1993; POLO CLASSIC "CN"03>06 2003-2006; POLO CLASSIC (AUS) "CN"03>06 2003-2006; POLO "CN"02>06 2002-2006; Eurovan 1996-1997.
