N10288303 Hexagon Socket Head Bolt
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

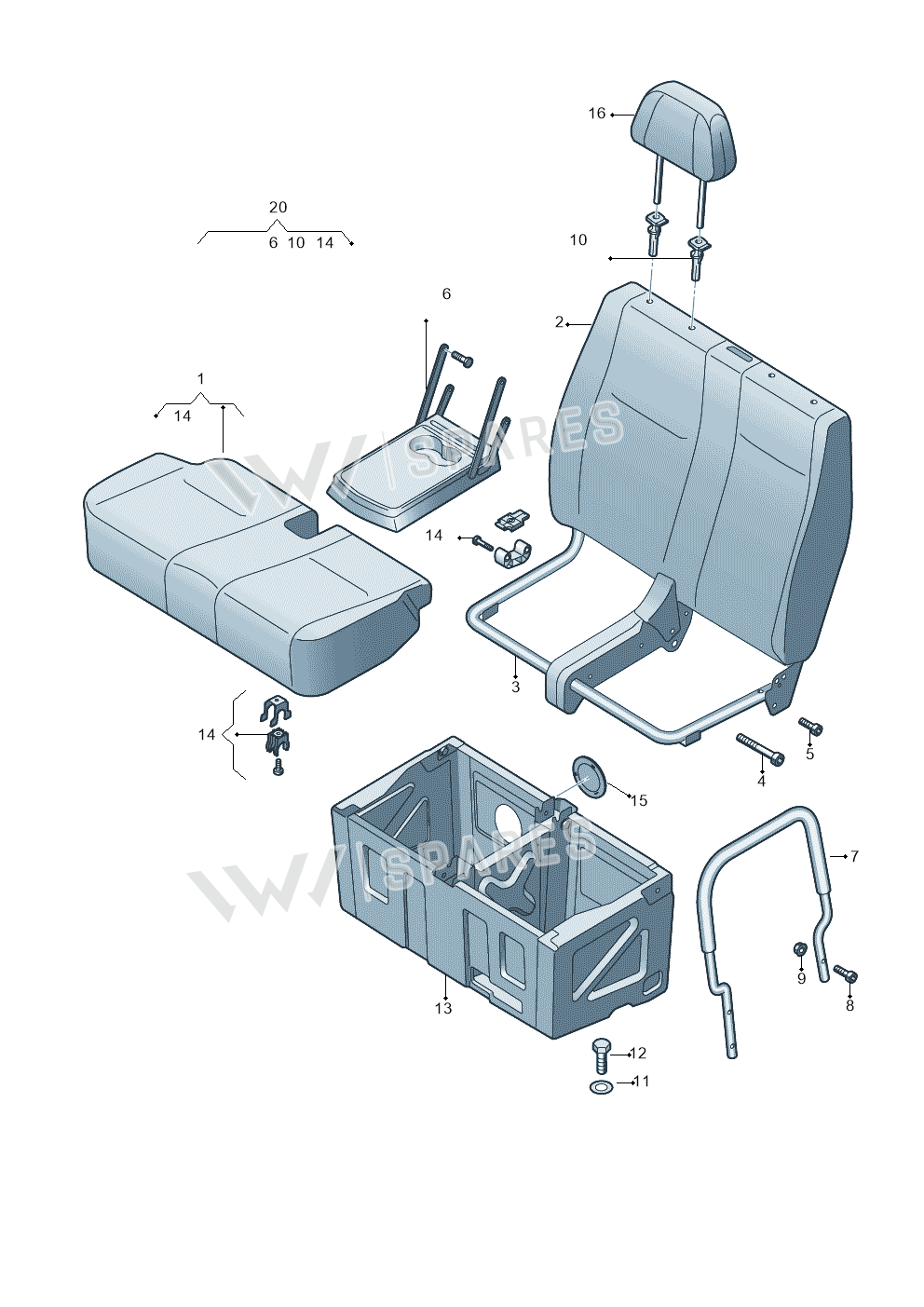

7 vehiclesHexagon Socket Head Bolt — locate Hexagon Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Cushioning 2E0881371
- 1Cushioning 2E0881371A
- 1Cushioning 2E0881371B
- 2Cushioning 2E0881805F
- 2Cushioning 2E0881805G
- 2Cushioning 2E0881805H
- 2Cushioning 2E0881806C
- 2Cushioning 2E0881806D
- 2Cushioning 2E0881806E
- 4Screw WHT002117
- 5Screw WHT001603
- 6Fold Tab 2E0861171
- 6Fold Tab 2E0861171A
- 6Fold Tab 2E0861171B
- 7PartRight2E2881149
- 7Retaining BarLeft2E1881149
- 9Collar Nut WHT000966
- 10Guides 2E0881920B
- 11Washer N90179702
- 12Bolt N90748803
- 13Seat Box 2E4881669
- 13Seat Box 2E2881669B
- 13Seat Box 2E3881669
- 13Seat Box 2E1881670A
- 14Fixing Set 2E0881508A
- 15Cover 2E0882099
- 16Headrest 2E0881901B
- 16Headrest 2E0881902A
- 16Headrest 2E0881902B
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Crafter 35 panel | 2011-2016 | 8 | 3 | PR:4S8,4S9 | 4S8 |
| CRAFTER 06> | 2006- | 8 | 3 | PR:4S8,4S9 | 4S8 |
| AUDI A2 | 2000-2005 | 24 | 2 | 4M9 | |
| Audi A8 quattro | 1999-2002 | 5, 2 | 8 | ||
| AUDI A8 | 1998-2002 | 5, 2 | 8 | ||
| Audi A8 | 1996-1998 | 5, 2 | 8 | ||
| Audi A8 qu. | 1996-1998 | 5, 2 | 8 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Socket Head Bolt is fitted on: Crafter 35 panel 2011-2016; CRAFTER 06> 2006-; AUDI A2 2000-2005; Audi A8 quattro 1999-2002; AUDI A8 1998-2002; Audi A8 1996-1998; Audi A8 qu. 1996-1998.
