Oval Head Panel Screw (Combi) exploded parts diagram — Audi R8 qu. 5.2 · 2012-2015, position 27 — Audi R8 qu. 5.2 · 2012-2015 · position 27Full diagram ↓

N10309101

N10309101 Oval Head Panel Screw (Combi)

Name: N10309101 Oval Head Panel Screw (Combi)
Brand: SEAT
SKU: N10309101
Price: 0.27 GBP
Availability: InStock

£0.27

£0.22 excl. VAT

This is a catalog item (special order). Delivery time may vary.

Availability: Available to order

Quantity:

Special order item. Delivery time may vary.

About This Part

Available for Purchase

This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

99 vehicles

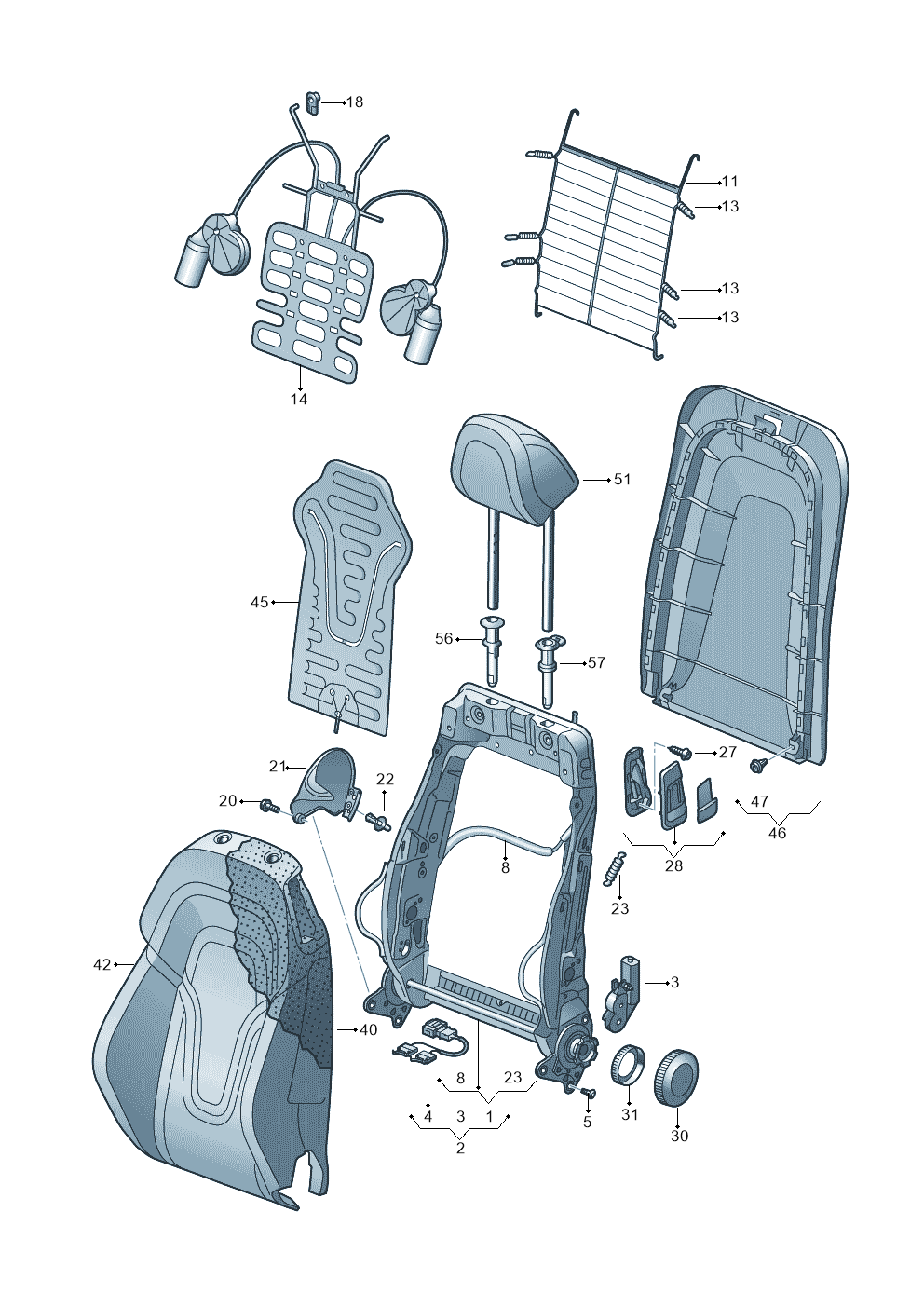

Oval Head Panel Screw (combi) — locate Oval Head Panel Screw (Combi) in the official exploded view and explore the surrounding assembly.

Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.

Parts in this assembly44

Vehicle fitment table110

Europe (75)

Vehicle	Years	Pos.	Qty	Remark	PR
Audi R8 qu. 5.2	2012-2015	27	4		K8C
Audi TTS Coupe 2.0	2010-2014	27	4		K8C
Audi TTRS Plus Coupe	2009-2014	27	4		K8C
Audi TT Coupe/Roadster 08>	2007-	27	4		K8C
Audi R8 08>	2007-	27	4		K8C
AUDI A6 QU.ALLROAD 07>	2006-	23	X		L0L
Alhambra	2006-2010	29	12
CADDY-KOMBI/KASTENW. 06>	2005-	26	1
ALHAMBRA/4MOTION	2005-	29	12
Audi A8/S8/qu. lang	2003-2007	42	1		E8V
LT, LT 4X4	2003-2006	22	2
ALHAMBRA/4MOTION	2002-2005	29	12
GOLF CABRIO	2002-2002	50	3
PASSAT 00>	2000-	24	X		4B7
Passat/4Motion/W8	2000-2002	24	X		4B1
SHARAN/4MOTION	2000-2002	29	12
ALHAMBRA/4MOTION	2000-2002	29	12
POLO	1999-2001	26	1		L0
caddy combi./del.van	1998-2005	26	1
LUPO/3L TDI	1998-2003	26	1
GOLF CABRIO	1998-2001	26	1		L0L
AROSA	1997-2003	26	1
Audi A6/Avant	1997-2001	32	7
Audi A6/Av.qu.F4B-W->	1997-2001	32	7
LT, LT 4X4	1996-2003	22	1
ALHAMBRA	1996-2000	17	3
GOLF VAR./VENTO	1996-1999	26	1
POLO CLASSIC/VARIANT	1996-1999	26	1
IBIZA/CORDOBA/VARIO	1996-1999	26	1
Golf	1996-1997	26	1
CADDY-KOMBI/KASTEN	1995-2003	26	1
INCA (SEAT-VAN)	1995-2003	26	1
SHARAN/SYNCRO	1995-2000	17	3
Polo Classic 96	1995-1996	26	1
Golf 96	1995-1996	26	1
Golf Var./Vento 96	1995-1996	26	1
POLO	1994-1999	26, 11	1
Passat	1994-1997	8C	2
Derby (MEX)	1994-1996	26, 11	1
Golf Cabrio	1994-1996	26, 50	1
Passat Var.syncro	1994-1996	7, 8C	X
Golf/Ecomatic 95	1994-1995	26, 50	1
Golf Var./Vento 95	1994-1995	26, 50	1
Audi Cabrio.	1993-1998	18	X
Golf/Var. syncro	1993-1997	26, 50	1
Jetta GLX 94	1993-1994	26, 50	1
Ibiza/Cordoba (SEAT)	1992-1996	26	1
GOLF/Ecomatic	1991-1994	26, 50	1
Passat syncro	1991-1993	8C	2
Passat	1991-1993	8C	2
Audi 100/Wagon 92	1991-1992	7	2
Corrado	1989-1995	10	X
Audi V8	1989-1993	18	2
Passat	1989-1991	8C	2
Jetta	1989-1991	56, 3	4
Audi 80/90	1989-1991	22	X
Audi Coupe qu.	1989-1991	22	X
Audi 100/Wagon	1989-1990	53	4
AUDI COUPE/3	1988-1994	22	X
Audi 200 Turbo	1988-1990	53	4
Audi 100/Wagon qu.	1988-1990	53	4
Audi 200T/Wagon qu.	1988-1990	53	4
Jetta 89	1988-1989	3	3	GOLF
Audi 100/Wagon 89	1988-1989	53	4
GOLF,JETTA (MEX)	1987-1992	11	4
Audi 80/90 qu.	1987-1991	22	X
Audi 80/90	1987-1989	22	X
Jetta 88	1987-1988	3	3	GOLF
AUDI COUPE/2 88	1987-1987	49	8
Jetta 87	1986-1987	3	3
Golf/Jetta syn, Rallye	1985-1991	56, 3	4
Audi 4000 S/CS qu.	1984-1987	50	8
AUDI COUPE QUATTRO/2	1984-1987	49	8
Audi Coupe	1981-1987	49	8
PASSAT,-VARIANT/2 81	1980-1981	23, 9	4

Other markets (20)

Vehicle	Years	Pos.	Qty	Remark
AUDI A6L "CN"05>	2005-	23	X
AUDI A6L CHINA	1999-2005	32	7
Eurovan	1998-2003	1C	8
Golf Cabrio "USA","Mex"99>02	1998-2002	26	1
POLO CLASS./PL. "ZA"	1996-2003	11	1
Golf/Jetta "USA","Mex"97>99	1996-1998	26	1
NOVA PARATI	1995-2002	49	2
Golf Cabrio "USA","MEX"96>99	1995-1998	26	1
NOVO GOL/SAVEIRO	1994-2002	47	2
Golf/Jetta "USA","MEX"93>96	1992-1996	26, 50	1
JETTA (FAW) 91>	1991-	56	1
AUDI 100 (CHINA)	1988-1995	53	4
Golf/Jetta "USA","MEX"89>92	1988-1992	56	4	GTI 16V
Quantum	1986-1988	13	2
SANTANA/VARIANT "CN"86>	1985-	13	4	VARIANT
Quantum syncro	1985-1988	13	4
Quantum 86	1985-1986	13	2
Quantum 85	1984-1985	13	2
Rabbit Conv./Cabrio	1983-1993	33	8
Quantum	1981-1984	8B	4

Platform / generic diagrams (4)

Vehicle	Pos.	Qty
3B0 platform	24
3B0 platform	24
6K0 platform	26	1
6K0 platform	26	1

Listed without a diagram position (11)

Vehicle	Years	Qty
Audi S6 plus qu. 97	1996-1997	4
Audi A6/S6/Wg.qu.F>4A	1996-1997	4
Audi A6/Wagon F >4A-W	1996-1997	4
Audi A6/Wagon 96	1995-1996	4
Audi A6/S6/Wagon qu. 96	1995-1996	4
Audi A6/Wagon 95	1994-1995	4
Audi A6/S6/Wagon.qu. 95	1994-1995	4
Audi 100/Wagon 94	1993-1994	4
Audi 100/Wagon qu.	1992-1994	4
Audi 100/Wagon 93	1992-1993	4
Audi 100/Wagon qu. 92	1991-1992	4
