N10347901 Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

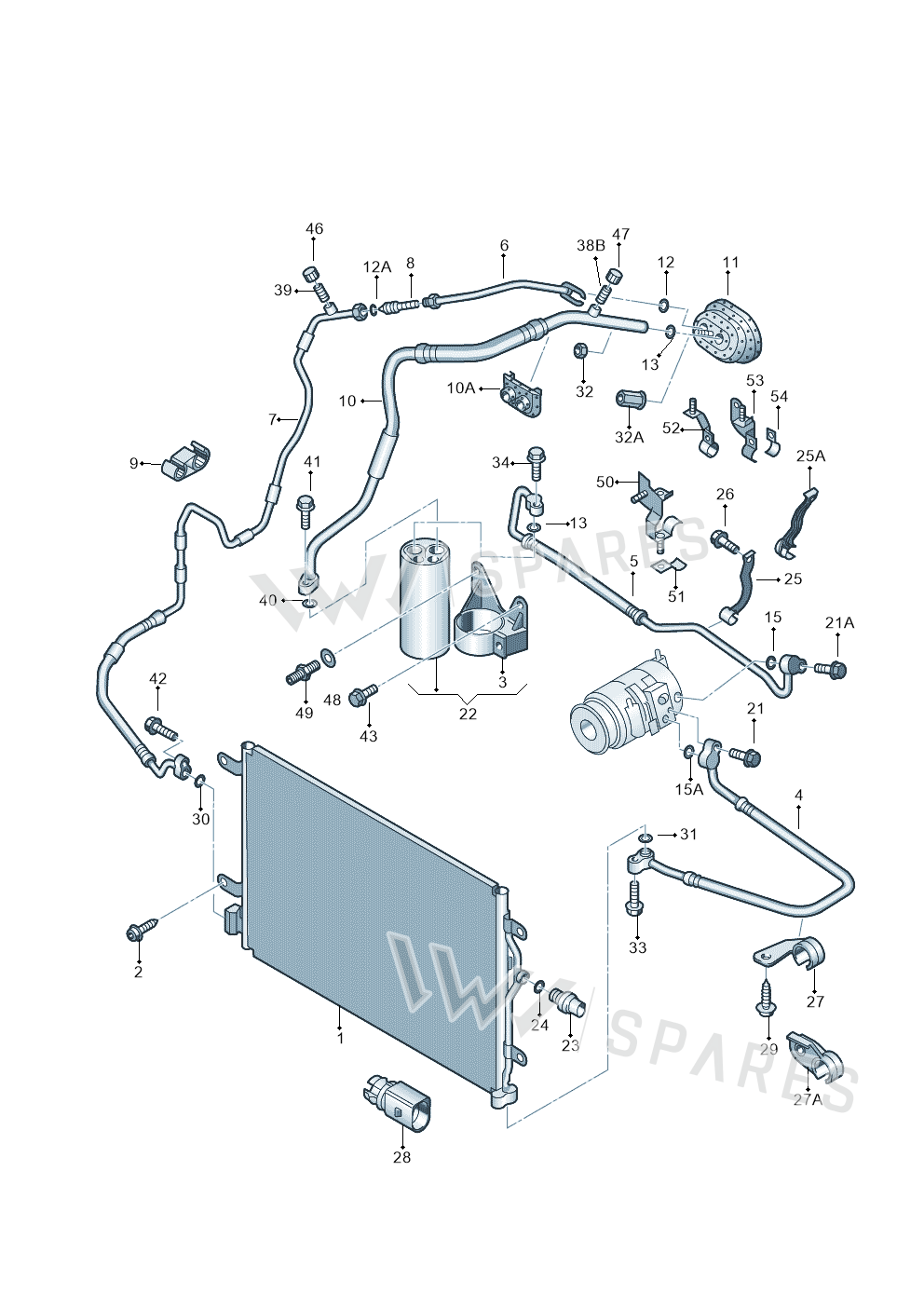

19 vehiclesBolt — locate Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Capacitor 8E0260403S
- 1Capacitor 8E0260403T
- 2Bolt N90817003
- 3Bracket 8E0260197
- 3Bracket 8E0260197A
- 4Hose 8E0260701BJ
- 4Hose 8E0260701BM
- 4Hose 8E0260701BN
- 4Hose 8E0260701BR
- 4Hose 8E0260701BS
- 5Hose 8E0260707BD
- 5Hose 8E0260707AT
- 5Hose 8E0260707BH
- 5Hose 8E0260707BJ
- 5Hose 8E0260707BK
- 6Pipe 8E2260709E
- 6Pipe 8E1260709E
- 7Pipe 8E0260710K
- 7Pipe 8E0260710H
- 8Restrictor 8E0820177
- 9Bracket 4E0260759D
- 9Bracket 8E0260759AP
- 10Hose 8E2260740F
- 10Hose 8E1260740F
- 10Hose 8E1260740E
- 10Hose 8E2260740E
- 10AGrommet 8E0260753C
- 11Grommet 8E1260753
- 11Grommet 8E2260753
- 12Seal Ring 4E0260749A
- 12ASeal Ring 8E0260749
- 13Seal Ring 4E0260749C
- 15Seal Ring 8E0260749C
- 21Bolt N10415402
- 21Bolt N10347204
- 22Drier 8E0820193P
- 22Drier 8E0820193Q
- 23Sensor 8E0959126C
- 24Seal Ring 7H0820896
- 25Bracket 8E0260759AC
- 25Bracket 8E0260759AJ
- 25Bracket 8E0260759AK
- 26Part N90488001
- 26Bolt N01021527
- 27BracketLeft8E0260759BJ
- 27ABracket 8E0260759AN
- 28Sensor 8Z0820535
- 31Seal Ring 4E0260749B
Vehicle fitment table19
Europe (15)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi RS4 Cabrio qu. 08> | 2007- | 21A | 1 | L0L | |
| ROOMSTER 06> | 2006- | 3 | 2 | ||
| FABIA/COMBI NF 07> | 2006- | 3 | 2 | ||
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 21A | 1 | ||
| IBIZA 06> | 2005- | 3, 4 | 2 | ||
| CORDOBA 06> | 2005- | 3, 4 | 2 | ||
| FABIA/COMBI 05> | 2004- | 3 | 2 | ||
| Audi RS6 qu. | 2003-2004 | 20 | 2 | ||
| PASSAT/4MOTION/W8 | 2002-2005 | 11 | 2 | L0L | |
| CORDOBA/SE241 | 2002-2005 | 3, 4 | 2 | ||
| SUPERB 02> | 2001- | 21, 11 | 4 | PR:T5T,T1K | T1K |
| POLO | 2001-2005 | 3 | 2 | ||
| IBIZA | 2001-2005 | 3, 4 | 2 | ||
| FABIA/COMBI | 1999-2004 | 3 | 2 | ||
| Audi TT Coupe/Roadster | 1999-2002 | 33 | 4 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Lavida | 2008-2013 | 11 | 2 | ||
| PASSAT LINGYU "CN."06> | 2005- | 11 | 2 | GP1 | |
| Golf 'R32' n. "USA" | 2004-2004 | 11 | 2 | L0L |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 3B0 platform | 11 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Bolt is fitted on: Audi RS4 Cabrio qu. 08> 2007-; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; Audi A4/S4 Cabrio./qu. 07> 2006-; IBIZA 06> 2005-; CORDOBA 06> 2005-; FABIA/COMBI 05> 2004-; Audi RS6 qu. 2003-2004; PASSAT/4MOTION/W8 2002-2005; CORDOBA/SE241 2002-2005; SUPERB 02> 2001-; POLO 2001-2005; IBIZA 2001-2005; FABIA/COMBI 1999-2004; Audi TT Coupe/Roadster 1999-2002; Lavida 2008-2013; PASSAT LINGYU "CN."06> 2005-; Golf 'R32' n. "USA" 2004-2004; 3B0 platform.
