N10436102 Clamp
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

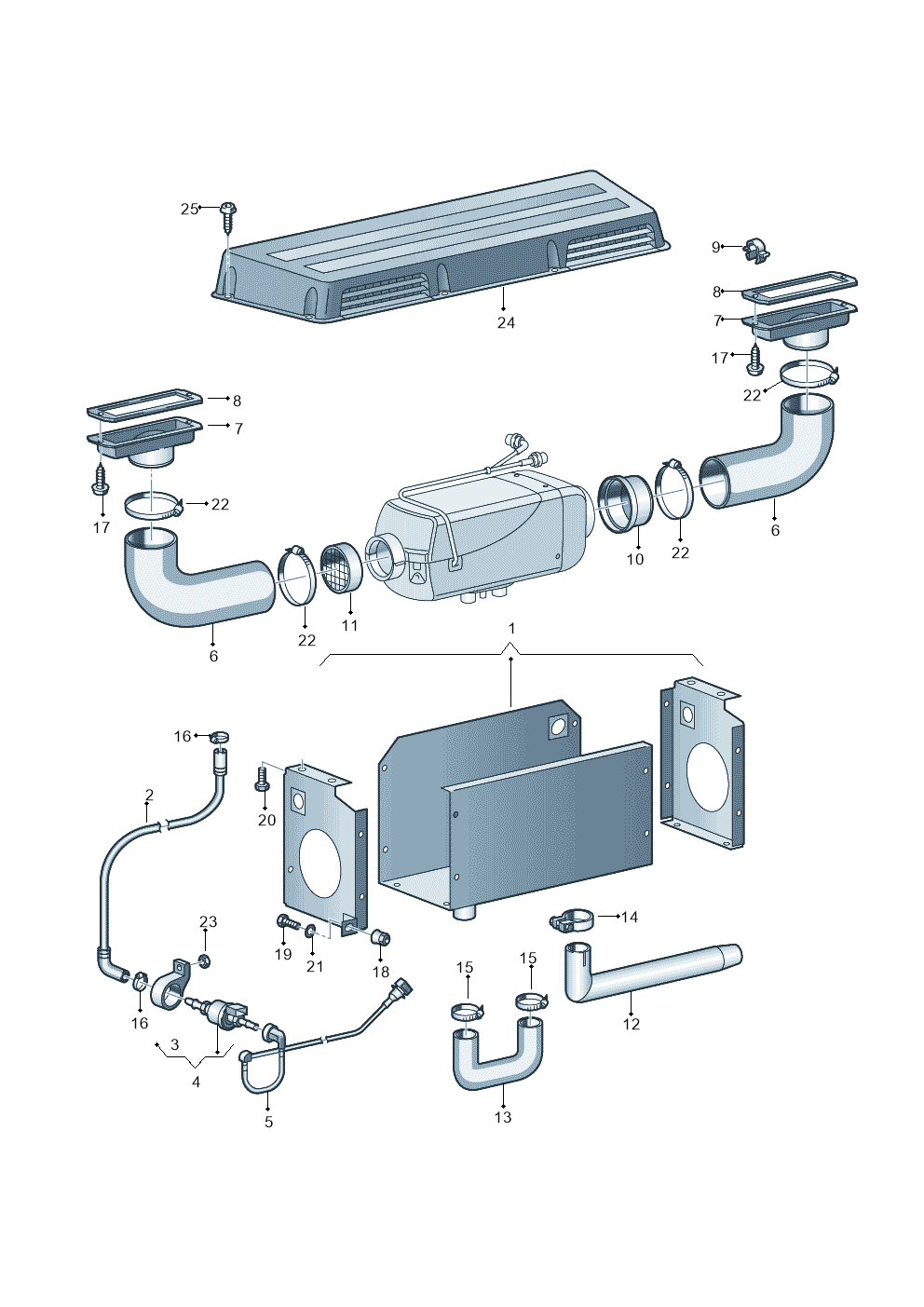

20 vehiclesClamp — locate Clamp in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly19
- 1Housing 2E0819357
- 2Fuel Line 2E0819307
- 3Bracket 7M0813549
- 4Pump 2E1819029B
- 5Fuel Line 2E0819887K
- 5Fuel Line 2E0819887H
- 6Hose N90775201
- 7Housing 2D1819434
- 8Seal 2D1819791
- 9Clamp 2E0819597C
- 12Exh Pipe 2E0819857
- 13Air Pipe 2E0819329
- 14Clamp 2E0819584
- 16Clamp 2E0133343
- 20Bolt N01024041
- 22Clamp N0245085
- 23Part N01100627
- 24Air Channel 2E1819658A
- 24Air Channel 2E1819658
Vehicle fitment table20
Europe (18)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Crafter 35 panel | 2011-2016 | 15 | 2 | |
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 19 | 1 | 7VL |
| Sharan | 2008-2010 | 26 | 1 | D3 |
| Touareg 08> | 2007- | 19 | 1 | 7V |
| CRAFTER 06> | 2006- | 15 | 2 | |
| Audi Q7 07> | 2006- | 19 | 1 | 7VL |
| Alhambra | 2006-2010 | 26 | 1 | |
| SHARAN/4MOTION | 2005- | 26 | 1 | D3 |
| ALHAMBRA/4MOTION | 2005- | 26 | 1 | |
| Touareg | 2005-2006 | 19 | 1 | 7V |
| LT, LT 4X4 | 2003-2006 | 13, 48 | 1 | |
| Touareg | 2003-2005 | 19 | 1 | 7V |
| SHARAN/4MOTION | 2002-2005 | 28, 26 | 1 | |
| ALHAMBRA/4MOTION | 2002-2005 | 28, 26 | 1 | |
| SHARAN/4MOTION | 2000-2002 | 28 | 1 | |
| ALHAMBRA/4MOTION | 2000-2002 | 28 | 1 | |
| ALHAMBRA | 1996-2000 | 10 | 3 | |
| SHARAN/SYNCRO | 1995-2000 | 10 | 3 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Eurovan | 1991-1994 | 11, 7 | 2 | |
| Vanagon | 1987-1992 | 14 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Clamp is fitted on: Crafter 35 panel 2011-2016; Audi Q7 qu. 3.0 TDI 2009-2015; Sharan 2008-2010; Touareg 08> 2007-; CRAFTER 06> 2006-; Audi Q7 07> 2006-; Alhambra 2006-2010; SHARAN/4MOTION 2005-; ALHAMBRA/4MOTION 2005-; Touareg 2005-2006; LT, LT 4X4 2003-2006; Touareg 2003-2005; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002; ALHAMBRA 1996-2000; SHARAN/SYNCRO 1995-2000; Eurovan 1991-1994; Vanagon 1987-1992.
