N10455203 Hex Collared Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

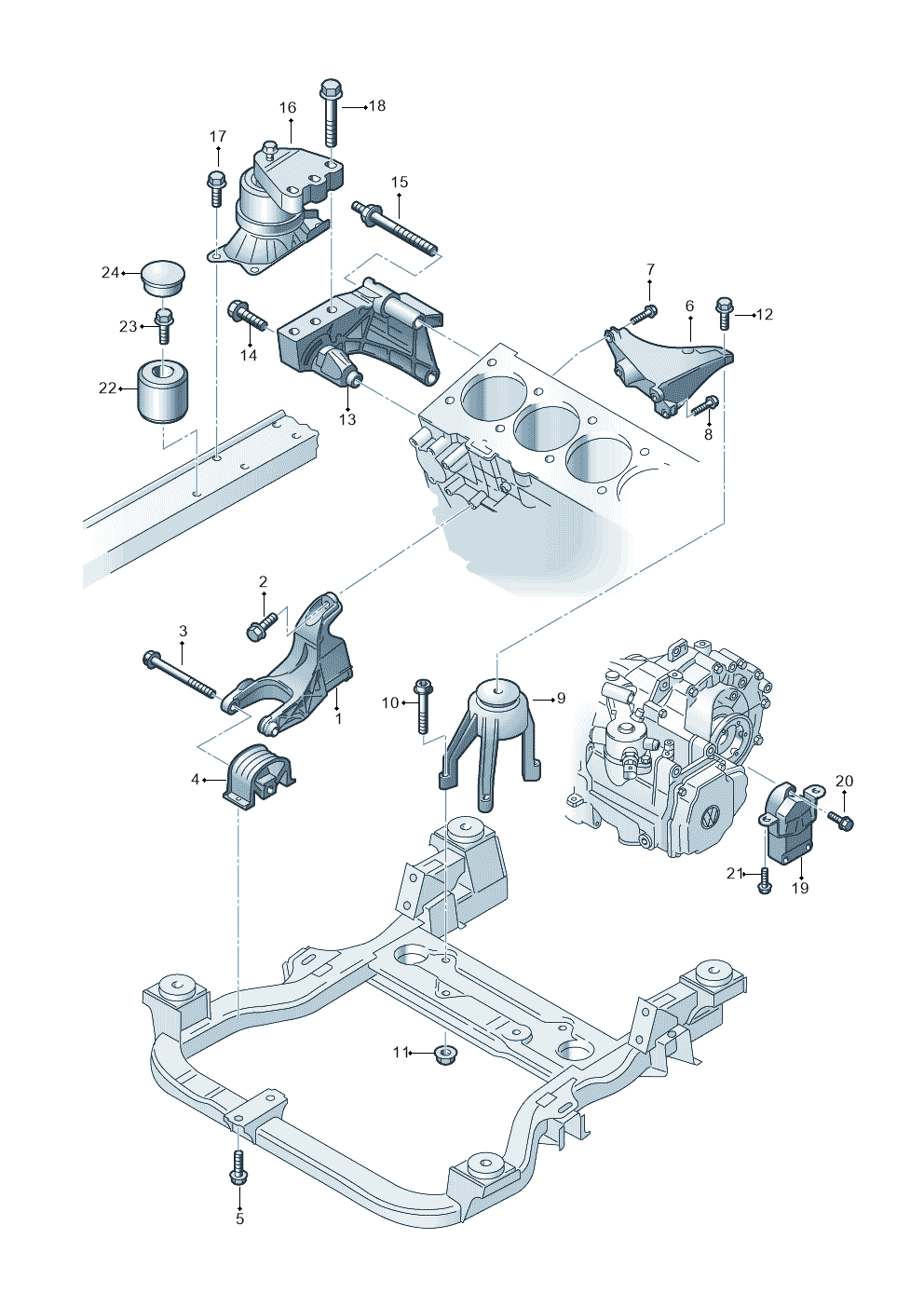

9 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Support 7H0199343
- 2Bolt N10404304
- 3Bolt N90997901
- 4Eng Mounti 7H0199848B
- 4Eng Mounti 7H0199848G
- 5Bolt N10155906
- 6Support 7H0199370C
- 6Support 7H0199370H
- 6Support 7H0199370Q
- 7Bolt N10268303
- 9Eng Mounti 7H0199849BC
- 9Eng Mounti 7H0199849AS
- 9Eng Mounti 7H0199849AT
- 9Eng Mounti 7H0199849BA
- 10Bolt N91028002
- 11Collar Nut N01508312
- 12Bolt N91023602
- 13SupportRight022199354B
- 13SupportRight06A199207J
- 13SupportRight038199207AF
- 14Bolt N10328002
- 15Bolt N91007703
- 16Eng MountiRight7H0199256G
- 16Eng MountiRight7H0199256F
- 17Bolt N10697801
- 19Gear MountLeft7H0399151H
- 19Gear MountLeft7H0399151J
- 19Gear MountLeft7H0399151G
- 20Bolt N10417601
- 21Bolt N10246605
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| TRANSPORTER/4MOTION 07 | 2006-2007 | 7, 12 | 4 | BKK | G1A |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 7, 12 | 4 | BDL | G1A |
| CAMPMOBIL (T5) 07 | 2006-2007 | 8 | 1 | ||
| SHARAN/4MOTION | 2005- | 21 | 2 | 1X1 | |
| ALHAMBRA/4MOTION | 2005- | 21 | 2 | ||
| TRANSPORTER/4MOTION 06 | 2005-2006 | 7, 12 | 4 | BKK | G1A |
| TRANSPORTER 06 | 2005-2006 | 7, 12 | 4 | BDL | G1A |
| TRANSPORTER | 2003-2005 | 7, 12 | 4 | BDL | G1A |
| ALHAMBRA/4MOTION | 2002-2005 | 21 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; SHARAN/4MOTION 2005-; ALHAMBRA/4MOTION 2005-; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER 2003-2005; ALHAMBRA/4MOTION 2002-2005.
