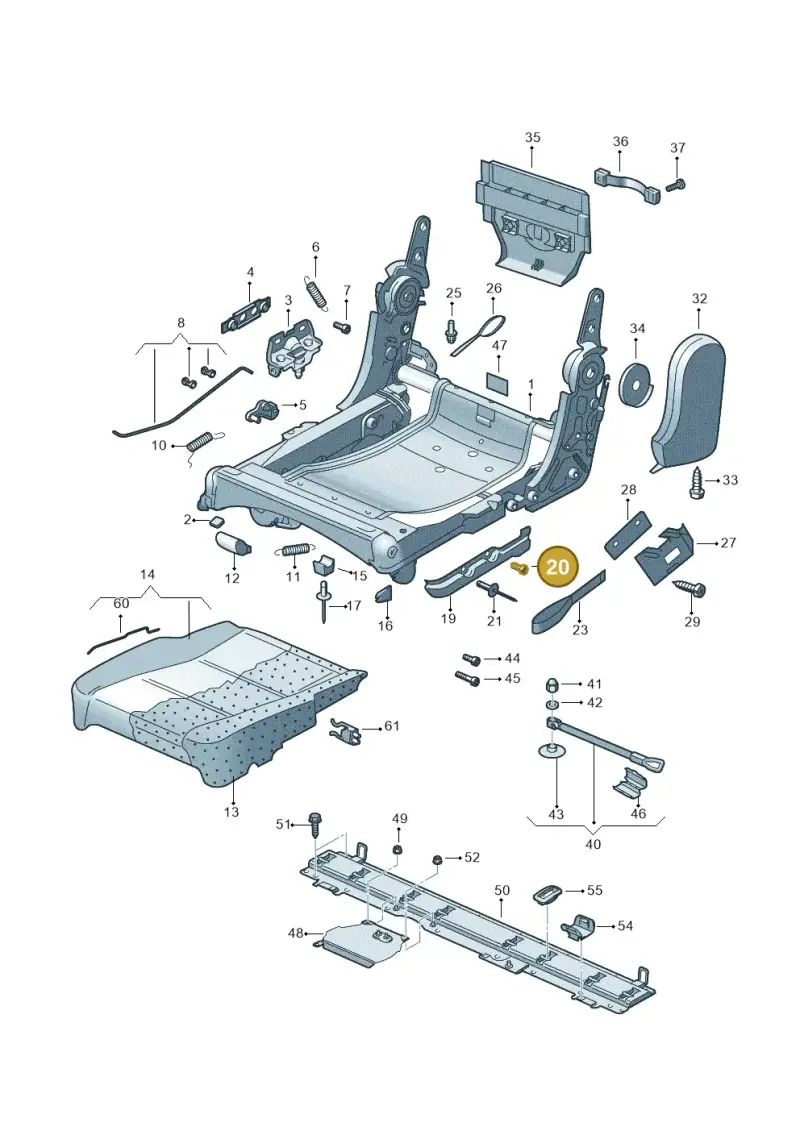

Number 20 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Socket Head Bolt, part number N10716501. This bolt secures components related to the sunroof mechanism or body panels. It is positioned as item 20 in the diagram. The bolt has a length of 0.022m and a width/height of 0.016m. Genuine OEM socket head bolts provide the correct torque and clamping force for secure assembly.
Technical details
- Category
- Seats
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.2 × 1.6 × 1.6 cm
- Shipping weight
- 0.01 kg
Parts diagram & fitment
4 vehiclesScrew — locate N10716501 Volkswagen Socket Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1Seat FrameRight1T0883106C
- 1Seat FrameRight1T0883106E
- 1Seat Frame 1T0883107C
- 1Seat Frame 1T0883107F
- 1Seat FrameLeft1T0883105E
- 1Seat FrameLeft1T0883105G
- 2Handle 1T0883067
- 2Handle 1T0883067A
- 3Lock Mechanism 1T0883810A
- 3Lock Mechanism 1T0883809A
- 3Lock Mechanism 1T0883809B
- 4Plate 1T0883619A
- 4Plate 1T0883619
- 5Support 1T0883629C
- 6Spring 1T0883259
- 7Bolt 1T0883933B
- 8Entrst Rod 1T0883683A
- 8Entrst Rod 1T0883683
- 10SpringLeft1T0883171A
- 10SpringRight1T0883172
- 10SpringRight1T0883172A
- 10SpringLeft1T0883171
- 11Spring 1T0883271
- 12Handle 1T0883139
- 13Seat CushRight1T0883376D
- 13Seat CushLeft1T0883375H
- 14Seat CoverLeft1T0883405B
- 14Seat CoverLeft1T0883405D
- 14Seat CoverLeft1T0883405F
- 14Seat CoverLeft1T0883405H
- 14Seat CoverRight1T0883406
- 14Seat CoverRight1T0883406A
- 14Seat CoverRight1T0883406B
- 14Seat CoverRight1T0883406C
- 14Seat CoverRight1T0883406D
- 14Seat CoverLeft1T0883405
- 15Support El 1T0883163
- 16Ins Piece 1T0883655A
- 16Ins Piece 1T0883655
- 17Pop Rivet N90694801
- 19Strip 1T0883628A
- 19Strip 1T0883628
- 23Loop 1T0883329A
- 25Spring Rivet 8Z0857784
- 26Loop 1T0883330C
- 27Cover 1T0883938A
- 27Cover 1T0883938
- 28Cover 1T0883937A
Diagrams & fitment data powered by oemdiagrams.com
N10716501 Volkswagen Socket Head Bolt | Genuine OEM is fitted on: TOURAN 2003-2005; TOURAN 2006-; Touran 1.9 2008-2010; Touran 2.0 2010-2015.
