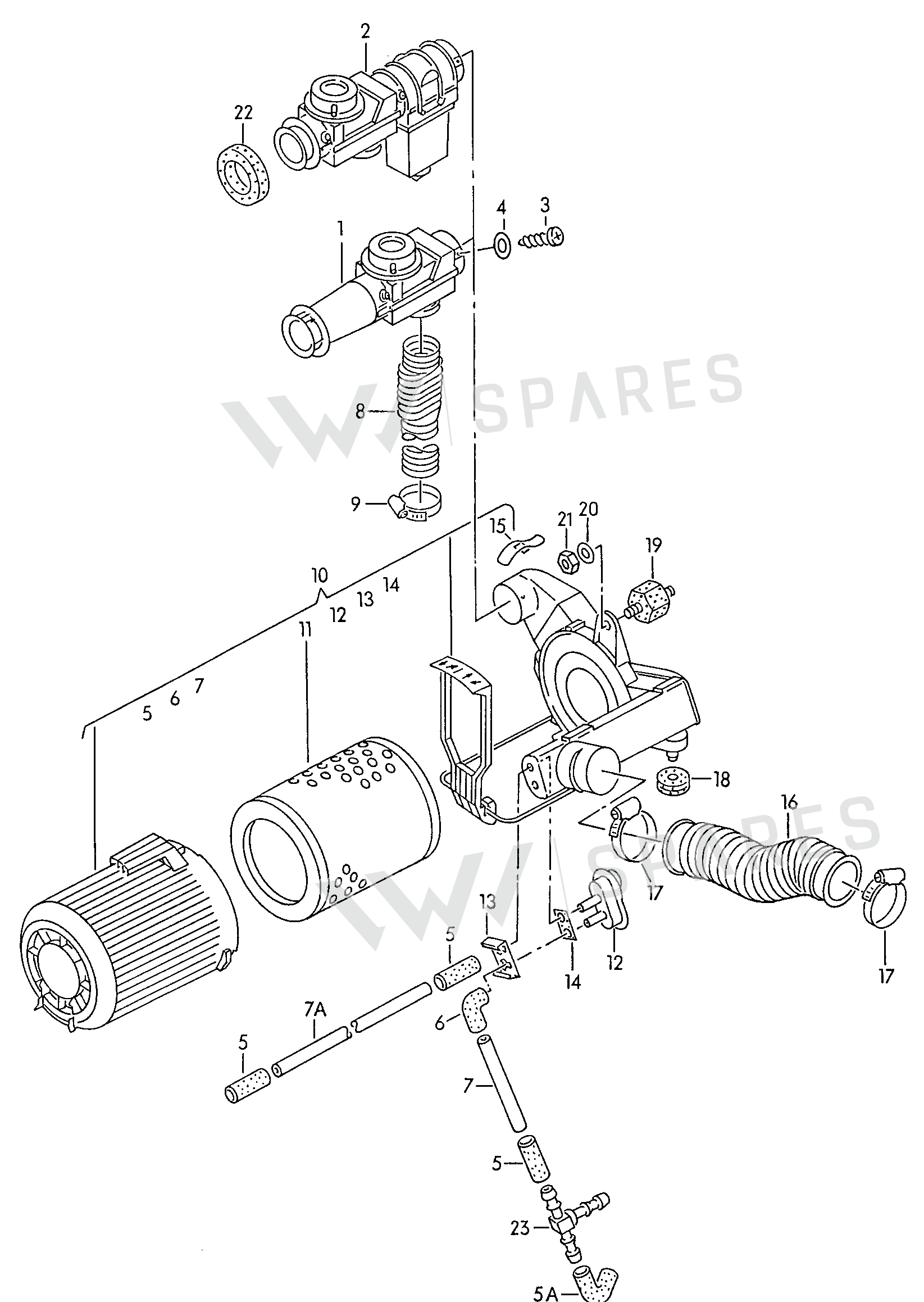

Air Hose exploded parts diagram — TRANSPORTER SYNCRO · 1995-1995, position 8
Exploded view
TRANSPORTER SYNCRO · 1995-1995 · position 8Full diagram ↓
N90209716

N90209716 Air Hose

£21.34
£17.64 excl. VAT
Supersession roadoldest to newest
  1. N90209704Not stocked
    Mar 1988
  2. N90209716This pageNot stocked
    Dec 1997
  3. 028129087ADiscontinued
    Jun 2016
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

23 vehicles

Air Hose — locate Air Hose in the official exploded view and explore the surrounding assembly.

Parts in this assembly16
Vehicle fitment table23

Europe (17)

VehicleYearsPos.QtyRemark
TRANSPORTER SYNCRO1995-19958, 111
Jetta GLX 941993-1994211
Transporter syncro1992-19958, 111
GOLF/Ecomatic1991-1994211
Polo/Polo Coupe1990-199416, 2, 211
Jetta1989-199127, 141
Jetta 891988-198927, 141
Jetta 881987-1988271MH,NU,2C,HZ
Jetta 871986-1987271MH,NU,2C,HZ
Jetta 861985-1986271MH,NU,HZ
Jetta 851984-1985271HK
Scirocco1983-1989251
CADDY1982-199251JB,EM
POLO/COUPE/DERBY1981-199016, 18, 19, 2, 211GT,MH,NU,2G,
VW 1200 MEX.1978-198562
LT 28-40 F>28-d-0072731975-1982101
Mod. 1811969-19822, 52

Other markets (6)

VehicleYearsPos.QtyRemark
Eurovan F>>70-T 961995-199581
Eurovan 951994-199581
Eurovan1991-199481
Vanagon1987-199223, 212
Vanagon syncro1985-1992132
Vanagon1985-1987132

Diagrams & fitment data powered by oemdiagrams.com

Air Hose is fitted on: TRANSPORTER SYNCRO 1995-1995; Jetta GLX 94 1993-1994; Transporter syncro 1992-1995; GOLF/Ecomatic 1991-1994; Polo/Polo Coupe 1990-1994; Jetta 1989-1991; Jetta 89 1988-1989; Jetta 88 1987-1988; Jetta 87 1986-1987; Jetta 86 1985-1986; Jetta 85 1984-1985; Scirocco 1983-1989; CADDY 1982-1992; POLO/COUPE/DERBY 1981-1990; VW 1200 MEX. 1978-1985; LT 28-40 F>28-d-007273 1975-1982; Mod. 181 1969-1982; Eurovan F>>70-T 96 1995-1995; Eurovan 95 1994-1995; Eurovan 1991-1994; Vanagon 1987-1992; Vanagon syncro 1985-1992; Vanagon 1985-1987.
