N90414201 Seal Bolt With Sealing Ring
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

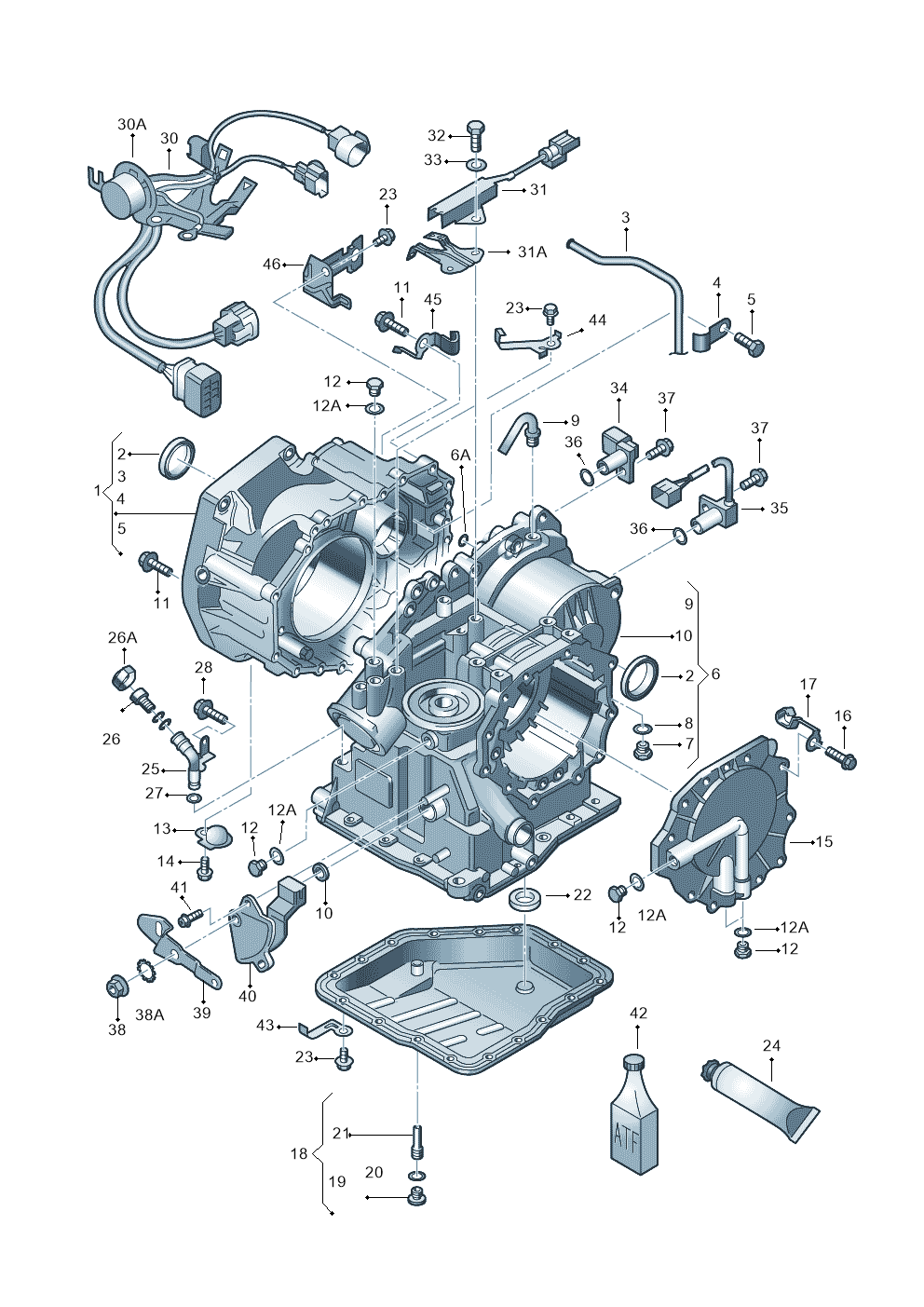

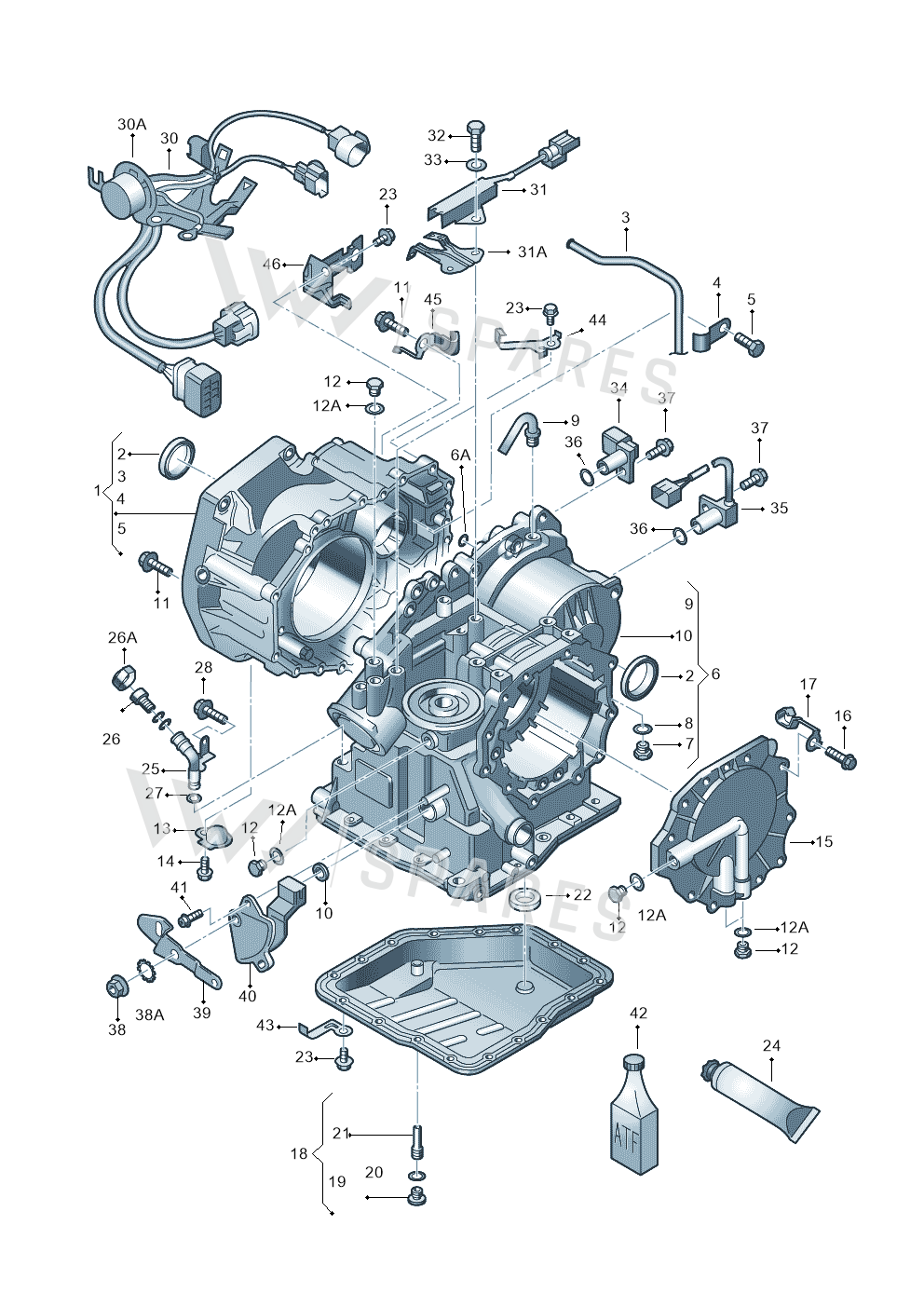

62 vehiclesSeal Bolt With Sealing Ring — locate Seal Bolt With Sealing Ring in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Housing 001321107A
- 6Housing 001321102A
- 6ASeal Ring 001321148
- 7Screw N90730701
- 8Seal Ring N0138165
- 10Seal Ring 001321199
- 11Bolt N10306502
- 12Screw N90730601
- 12ASeal Ring N90769601
- 15Cover 001321490
- 16Bolt N10156005
- 18Oil Sump 001321359
- 20Seal Ring N0138115
- 22Magnet 001321367
- 23Bolt N10156305
- 24Seal D176404A2
- 25Pipe 001321407
- 26Bungs 01M321432A
- 26APart 01M321435B
- 27Seal Ring 001321419A
- 36Seal Ring 001321559
- 38Collar Nut N10332001
- 39Lever 001321171
- 42Atf Oil G052990A2
Vehicle fitment table64
Europe (49)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| FABIA/COMBI 05> | 2004- | 19 | 1 | ||
| Jetta/Wagon | 2002-2006 | 15, 10 | 1 | ||
| PASSAT/4MOTION/W8 | 2002-2005 | 4 | 1 | ||
| IBIZA | 2001-2005 | 19 | 1 | ||
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 15, 10 | 1 | ||
| Jetta Wagon 02 | 2001-2002 | 15, 10 | 1 | ||
| Jetta Wagon | 2001-2001 | 15, 10 | 1 | ||
| PASSAT 00> | 2000- | 4 | 1 | ||
| OCTAVIA/COMBI/4X4 01> | 2000- | 15 | 1 | ||
| AUDI A3/S3/QUATTRO | 2000-2003 | 15 | 1 | G0E | |
| Passat/4Motion/W8 | 2000-2002 | 4 | 1 | G0E | |
| SHARAN/4MOTION | 2000-2002 | 12, 10 | 2 | G0E | |
| FABIA/COMBI | 1999-2004 | 19 | 1 | ||
| POLO | 1999-2001 | 19, 5 | 1 | ||
| Audi A4/Avant | 1999-2001 | 4 | 1 | ||
| LUPO/3L TDI | 1998-2003 | 19, 5 | 1 | ||
| GOLF CABRIO | 1998-2001 | 15 | 1 | G0E | |
| Golf | 1998-2000 | 15, 10 | 1 | ||
| Audi A6/Avant | 1997-2001 | 4 | 1 | ||
| Passat | 1997-2000 | 4 | 1 | ||
| Audi A4/Avant F8D-W-> | 1997-1998 | 4 | 1 | ||
| AUDI A3/S3/QUATTRO | 1996-2000 | 15 | 1 | ||
| OCTAVIA/COMBI/4X4 | 1996-2000 | 15 | 1 | ||
| GOLF VAR./VENTO | 1996-1999 | 15 | 1 | ||
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 15 | 1 | ||
| Golf | 1996-1997 | 15 | 1 | ||
| Audi A6/Wagon F >4A-W | 1996-1997 | 4 | 1 | ||
| Transporter 96 | 1996-1996 | 12 | 2 | ||
| Audi A4 F>8D-W-.. | 1995-1997 | 4 | 1 | ||
| Golf 96 | 1995-1996 | 15 | 1 | ||
| Golf Var./Vento 96 | 1995-1996 | 15 | 1 | ||
| Audi A6/Wagon 96 | 1995-1996 | 4 | 1 | ||
| POLO | 1994-1999 | 19, 5 | 1 | ||
| Passat | 1994-1997 | 48, 15 | 1 | ||
| Golf Cabrio | 1994-1996 | 48, 15 | 1 | ||
| Golf/Ecomatic 95 | 1994-1995 | 48, 15 | 1 | ||
| Golf Var./Vento 95 | 1994-1995 | 48, 15 | 1 | ||
| Audi A6/Wagon 95 | 1994-1995 | 44 | 1 | ||
| Audi Coupe/3 | 1994-1995 | 44 | 1 | ||
| Audi Cabrio. | 1993-1998 | 44, 4 | 1 | ||
| Audi 90 | 1993-1995 | 44, 4 | 1 | ||
| Jetta GLX 94 | 1993-1994 | 48 | 1 | ||
| Audi 100/Wagon 94 | 1993-1994 | 44 | 1 | ||
| Audi 100/Wagon 93 | 1992-1993 | 44 | 1 | ||
| TOLEDO SEAT | 1991-1996 | 48 | 1 | ||
| GOLF/Ecomatic | 1991-1994 | 48 | 1 | ||
| Passat | 1991-1993 | 48 | 1 | ||
| Corrado | 1989-1995 | 48 | 1 | ||
| AUDI COUPE/3 | 1988-1994 | 44 | 1 |
Other markets (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 4 | 1 | ||
| SANTANA 3000 "CN"04> | 2004- | 4 | 1 | G0E | |
| POLO CLASSIC "CN"03>06 | 2003-2006 | 19, 5 | 1 | G0E | |
| POLO CLASSIC (AUS) "CN"03>06 | 2003-2006 | 5 | X | MN7 | |
| POLO "CN"02>06 | 2002-2006 | 19, 5 | 1 | ||
| BORA (FAW) | 2001-2006 | 15 | 1 | ||
| Eurovan | 1998-2003 | 12 | 2 | ||
| SANTANA 2000 "CN"96>04 | 1996-2004 | 4 | 1 | ||
| Eurovan | 1996-1997 | 12 | 2 | ||
| Eurovan F>>70-T 96 | 1995-1995 | 12 | 2 | ||
| Eurovan 95 | 1994-1995 | 12 | 1 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 6K0 platform | 15 | 1 | |||
| 6K0 platform | 15 | 1 | AKL+PR:G0E |
Listed without a diagram position (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Cayenne | 2007-2010 | ||||
| Cayenne | 2002-2006 |
Diagrams & fitment data powered by oemdiagrams.com
Seal Bolt With Sealing Ring is fitted on: FABIA/COMBI 05> 2004-; Jetta/Wagon 2002-2006; PASSAT/4MOTION/W8 2002-2005; IBIZA 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; PASSAT 00> 2000-; OCTAVIA/COMBI/4X4 01> 2000-; AUDI A3/S3/QUATTRO 2000-2003; Passat/4Motion/W8 2000-2002; SHARAN/4MOTION 2000-2002; FABIA/COMBI 1999-2004; POLO 1999-2001; Audi A4/Avant 1999-2001; LUPO/3L TDI 1998-2003; GOLF CABRIO 1998-2001; Golf 1998-2000; Audi A6/Avant 1997-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; AUDI A3/S3/QUATTRO 1996-2000; OCTAVIA/COMBI/4X4 1996-2000; GOLF VAR./VENTO 1996-1999; TOLEDO SEAT MOD.97>99 1996-1999; Golf 1996-1997; Audi A6/Wagon F >4A-W 1996-1997; Transporter 96 1996-1996; Audi A4 F>8D-W-.. 1995-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Audi A6/Wagon 96 1995-1996; POLO 1994-1999; Passat 1994-1997; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Audi A6/Wagon 95 1994-1995; Audi Coupe/3 1994-1995; Audi Cabrio. 1993-1998; Audi 90 1993-1995; Jetta GLX 94 1993-1994; Audi 100/Wagon 94 1993-1994; Audi 100/Wagon 93 1992-1993; TOLEDO SEAT 1991-1996; GOLF/Ecomatic 1991-1994; Passat 1991-1993; Corrado 1989-1995; AUDI COUPE/3 1988-1994; PASSAT LINGYU "CN."06> 2005-; SANTANA 3000 "CN"04> 2004-; POLO CLASSIC "CN"03>06 2003-2006; POLO CLASSIC (AUS) "CN"03>06 2003-2006; POLO "CN"02>06 2002-2006; BORA (FAW) 2001-2006; Eurovan 1998-2003; SANTANA 2000 "CN"96>04 1996-2004; Eurovan 1996-1997; Eurovan F>>70-T 96 1995-1995; Eurovan 95 1994-1995; 6K0 platform.
