N90581802 Hex Collared Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

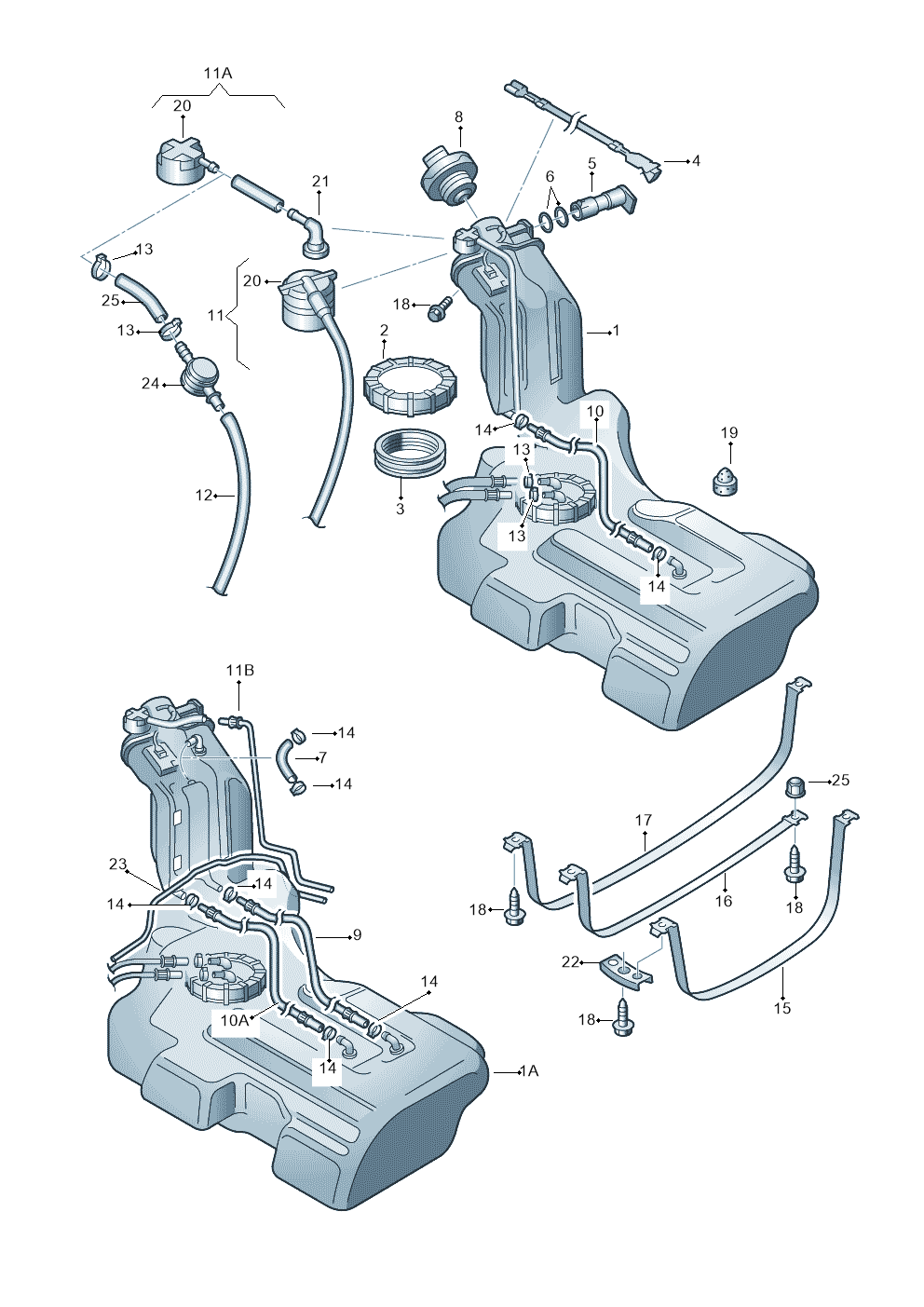

12 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly21
- 1Fuel Tank 3BD201075A
- 2Part 321201375A
- 3Seal Ring 1T0919133D
- 4Line 8E0201142A
- 4Line 8E0201142E
- 4Line 4B0201142
- 5Valve 6X0201136
- 5Valve 8D0201136
- 6Seal Ring N90563801
- 8Part 1H0201553B
- 8Part 1J0201550A
- 8Part 1J0201550AC
- 10Pipe 3B0201167A
- 10Pipe 8E0201167J
- 11Tube 3B0201183C
- 11Tube 8D0201183M
- 11Tube 8E0201183
- 13Clamp N0241222
- 14Clamp N90561801
- 19Buffer 431253149B
- 22Bracket 8D0201661
Vehicle fitment table12
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| SUPERB 02> | 2001- | 18, 17 | 6 | |
| PASSAT 00> | 2000- | 18 | 6 | |
| Passat/4Motion/W8 | 2000-2002 | 18, 22, 4 | 6 | |
| Passat syncro/4Motion | 1998-2000 | 18 | 4 | |
| Audi A6/Avant | 1997-2001 | 13 | X | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 18, 24, 27, 7 | X | |
| Passat | 1997-2000 | 18 | 6 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 17, 14, 13 | 6 | |
| AUDI A4 "CN."06> | 2005- | 16 | 6 | |
| PASSAT LINGYU "CN."06> | 2005- | 18, 10 | 6 | 1E1 |
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 16, 21 | 6 | |
| AUDI A6L CHINA | 1999-2005 | 13 | X |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: SUPERB 02> 2001-; PASSAT 00> 2000-; Passat/4Motion/W8 2000-2002; Passat syncro/4Motion 1998-2000; Audi A6/Avant 1997-2001; Audi A6/Av.qu.F4B-W-> 1997-2001; Passat 1997-2000; AUDI A6L "CN"05> 2005-; AUDI A4 "CN."06> 2005-; PASSAT LINGYU "CN."06> 2005-; AUDI A4/AV./QU. "CN"03>05 2003-2005; AUDI A6L CHINA 1999-2005.
