N90630503 Hexagon Head Bolt (Combi)
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

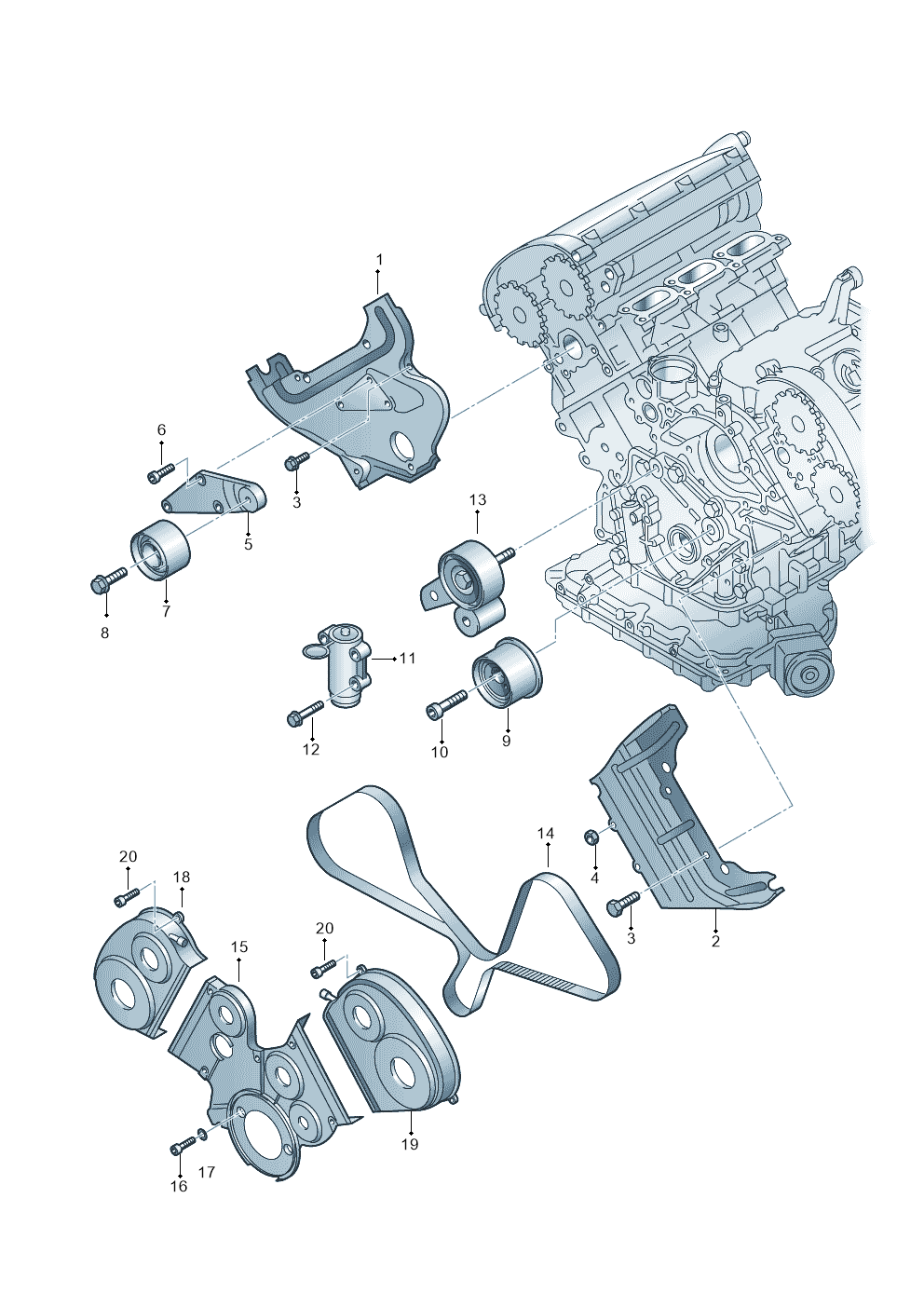

14 vehiclesHexagon Head Bolt (combi) — locate Hexagon Head Bolt (Combi) in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly19
- 1ProtectionRight06C109196B
- 2ProtectionLeft06C109195C
- 3Bolt N10009104
- 4Ut Hexagon Nut Self-locking Hexagon Nut N0230025
- 5Bracket 06C109187A
- 6Screw N0147058
- 7Roller 06C109244
- 9Roller 06C109244C
- 10Screw N0147356
- 11B Tensionr 06C109479A
- 12Bolt N10205601
- 13Clamp Lvr 06C109485A
- 14Tooth Belt 06C109119C
- 15Protection 06C109128C
- 16Screw N01470210
- 17Washer N01152426
- 18ProtectionRight06C109124C
- 19ProtectionLeft06C109123C
- 20Screw N10196303
Vehicle fitment table14
Europe (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A4/S4/Av./qu. 05> | 2005- | 8 | 2 | D7A | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 8 | 1 | D7A | |
| Audi A8/S8/qu. lang | 2003-2007 | 8 | 2 | D2H,D7A | |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 8 | 2 | D2H,D7A | |
| Audi A4/S4/Av./qu. | 2001-2004 | 8 | 2 | T15 | |
| Audi A6/Wagon/quattro | 2001-2004 | 8 | 2 | D2H,D7A | |
| Audi A6 Allroad qu. | 2000-2005 | 36 | 2 | G0L,G0X,T7Z | |
| AUDI RS4 AV. QU. | 2000-2001 | 36 | 2 | ||
| Audi A4/Avant | 1999-2001 | 37 | 2 | ||
| Audi A4/Av.qu. | 1999-2001 | 37 | 2 | ||
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 36 | 2 | DSY,FZV |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 8 | 2 | ||
| AUDI A4 "CN."06> | 2005- | 8 | 2 | ||
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 8 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Head Bolt (Combi) is fitted on: Audi A4/S4/Av./qu. 05> 2005-; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007; Audi A4/S4 Cabrio./qu. 2002-2006; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Audi A6 Allroad qu. 2000-2005; AUDI RS4 AV. QU. 2000-2001; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; Audi A4/Av.qu.F8D-W-> 1997-1998; AUDI A6L "CN"05> 2005-; AUDI A4 "CN."06> 2005-; AUDI A4/AV./QU. "CN"03>05 2003-2005.
