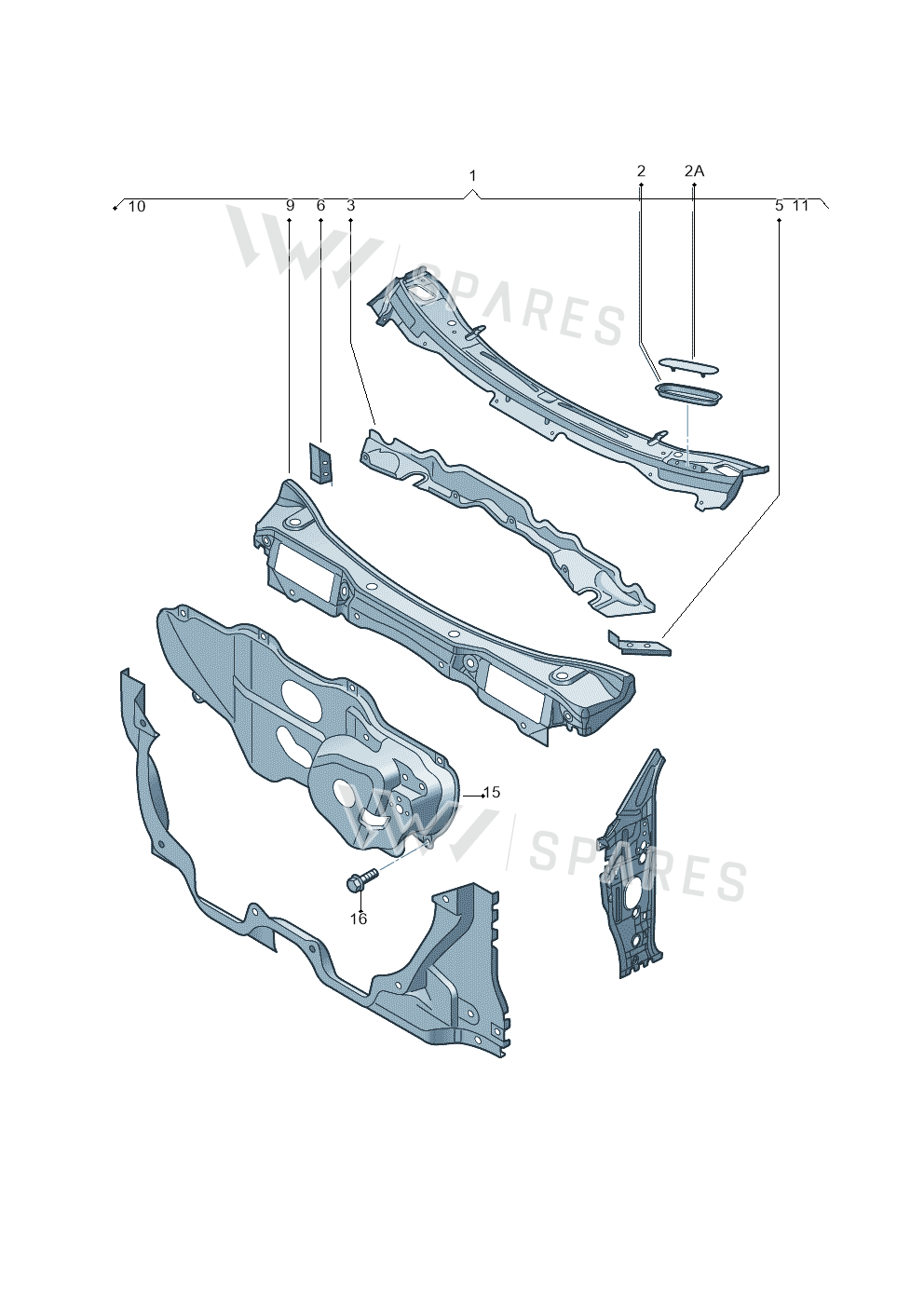

Hexagon Bolt exploded parts diagram — IBIZA 06> · 2005-, position 16
Exploded view
IBIZA 06> · 2005- · position 16Full diagram ↓
N90643501

N90643501 Hexagon Bolt

£0.64
£0.53 excl. VAT
Supersession roadoldest to newest
  1. N90643501This pageNot stocked
    Jun 2011
  2. N90643502Discontinued
    Apr 2025
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

18 vehicles

Hexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.

Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.

Parts in this assembly12
Vehicle fitment table18

Europe (12)

VehicleYearsPos.QtyPR
IBIZA 06>2005-168
CORDOBA 06>2005-168
FABIA/COMBI 05>2004-168
SHARAN/4MOTION2002-200515, 222L0
CORDOBA/SE2412002-2005168
ALHAMBRA/4MOTION2002-200515, 222
IBIZA2001-2005168
SHARAN/4MOTION2000-200215, 222
ALHAMBRA/4MOTION2000-200215, 222
FABIA/COMBI1999-2004168
ALHAMBRA1996-200021, 42
SHARAN/SYNCRO1995-200021, 42

Other markets (6)

VehicleYearsPos.QtyPR
New Polo (SVW)2010-2019238
POLO JIN QIN "CN"06>2006-168
POLO JIN QV "CN"06>2006-168
POLO CLASSIC "CN"03>062003-2006168
POLO CLASSIC (AUS) "CN"03>062003-2006168
POLO "CN"02>062002-2006168

Diagrams & fitment data powered by oemdiagrams.com

Hexagon Bolt is fitted on: IBIZA 06> 2005-; CORDOBA 06> 2005-; FABIA/COMBI 05> 2004-; SHARAN/4MOTION 2002-2005; CORDOBA/SE241 2002-2005; ALHAMBRA/4MOTION 2002-2005; IBIZA 2001-2005; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002; FABIA/COMBI 1999-2004; ALHAMBRA 1996-2000; SHARAN/SYNCRO 1995-2000; New Polo (SVW) 2010-2019; POLO JIN QIN "CN"06> 2006-; POLO JIN QV "CN"06> 2006-; POLO CLASSIC "CN"03>06 2003-2006; POLO CLASSIC (AUS) "CN"03>06 2003-2006; POLO "CN"02>06 2002-2006.
