N90684101 Oval Hexagon Socket Head Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

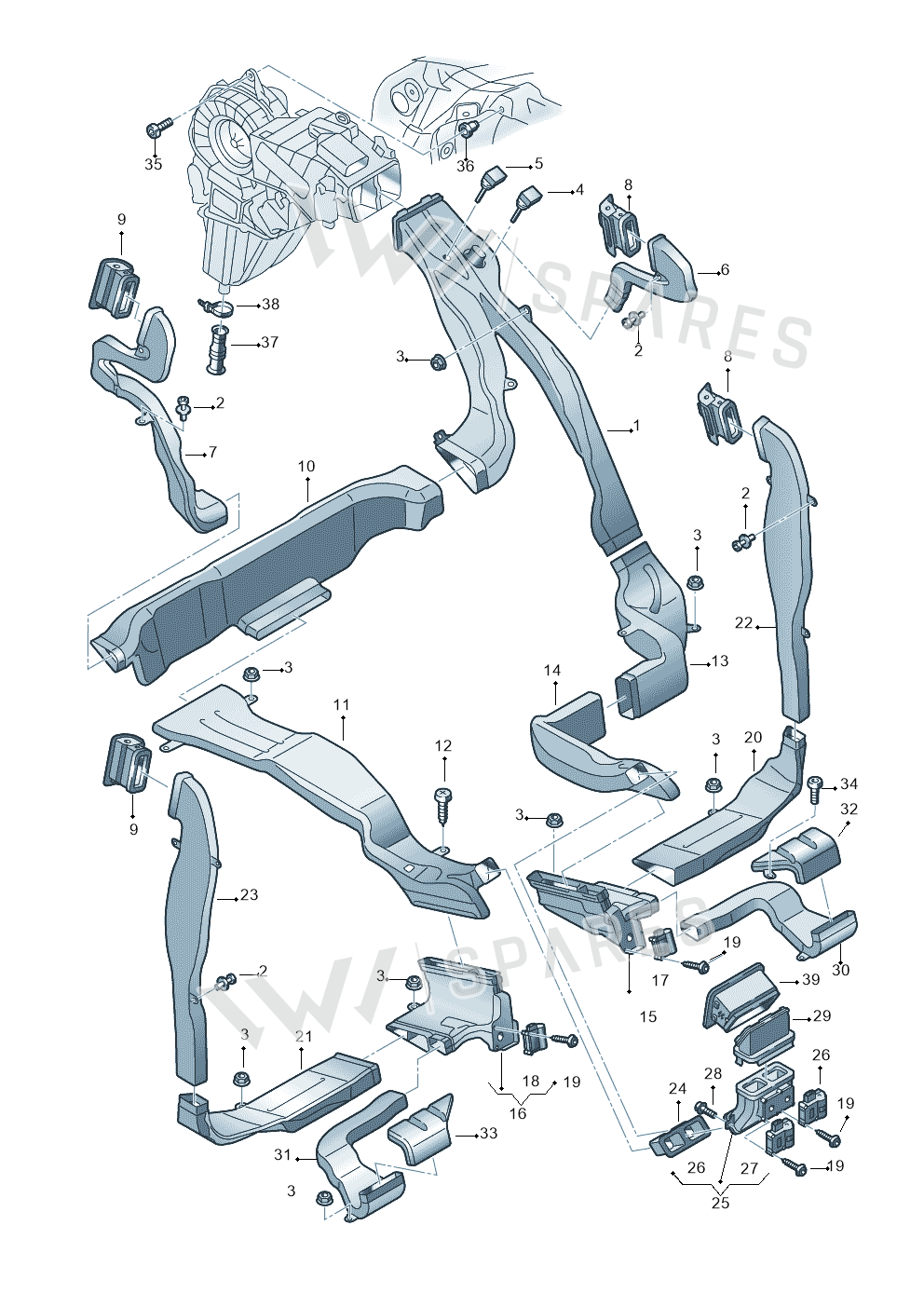

43 vehiclesOval Hexagon Socket Head Bolt — locate Oval Hexagon Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly34
- 1Air Channel 4L0820681
- 2Spring Rivet 7L6868307
- 3Collar Nut 171201969
- 4Temperature SensorLeft4B0820539
- 6Air ChannelLeft4L0820857
- 7Air ChannelRight4L0820858
- 8PartLeft4L0819209
- 9PartRight4L0819210
- 10Air Channel 4L0820682
- 11Air Channel 4L0820690
- 12Screw N01395819
- 13Air ChannelLeft4L0820699
- 14Air ChannelLeft4L0820689
- 15PartLeft7L0820351B
- 16PartRight7L0820352B
- 17Servomotor 4F0820511B
- 19Bolt WHT000704
- 20Air ChannelLeft4L0820713
- 21Air ChannelRight4L0820714
- 22Air ChannelLeft4L0819723B
- 23Air ChannelRight4L0819724B
- 24Adapter 7L0820953
- 25Part 7L0820526C
- 28Bolt N90735701
- 29Connector Piece 4L0857042
- 30Air ChannelLeft7L0820857
- 31Air ChannelRight7L0820858
- 32VentLeft7L0819623A
- 33VentRight7L0819624C
- 34Bolt N10464802
- 36Part N90252104
- 37Drain Tube 4L0820751
- 38Cable Tie N0209022
- 40Bolt N10673701
Vehicle fitment table43
Europe (25)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 35 | 3 | 9AH | |
| Audi Q7 07> | 2006- | 35, 39 | 3 | 9AH | |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 33 | 2 | ||
| CAMPMOBIL (T5) 07 | 2006-2007 | 33, 61 | 2 | ||
| New Beetle 06> | 2005- | 7, 5 | 2 | L0L | |
| ALHAMBRA/4MOTION | 2005- | 17 | 2 | ||
| Touareg | 2005-2006 | 37 | 3 | ||
| TRANSPORTER/4MOTION 06 | 2005-2006 | 33 | 2 | ||
| CAMPMOBILE(T5) | 2004-2006 | 33, 61 | 2 | ||
| Phaeton (lang) | 2003-2006 | 69, 35, 37, 31 | 1 | T81 | |
| Touareg | 2003-2005 | 37 | 3 | 9AH | |
| New Beetle Cabrio. | 2003-2005 | 7, 10 | 2 | 1X0 | |
| TRANSPORTER | 2003-2005 | 33 | 2 | ||
| Cayenne | 2002-2006 | 13 | 2 | ||
| SHARAN/4MOTION | 2002-2005 | 36 | 4 | ||
| ALHAMBRA/4MOTION | 2002-2005 | 17, 36 | 2 | ||
| New Beetle | 2001-2005 | 7, 10, 5 | 2 | L0L | |
| AUDI A3/S3/QUATTRO | 2000-2003 | 7 | 2 | L0L | |
| SHARAN/4MOTION | 2000-2002 | 36 | 4 | ||
| ALHAMBRA/4MOTION | 2000-2002 | 17, 36 | 2 | ||
| New Beetle | 1998-2001 | 7, 10, 5 | 2 | ||
| TOLEDO/LEON/LEON-4 | 1998-2001 | 7 | 2 | ||
| ALHAMBRA | 1996-2000 | 36 | 4 | ||
| AUDI A3/S3/QUATTRO | 1996-2000 | 7 | 2 | ||
| SHARAN/SYNCRO | 1995-2000 | 36 | 4 |
Other markets (13)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf Brasil "BR."08> | 2007- | 7 | 2 | ||
| Jetta City "Mex"08> | 2007- | 7 | 2 | ||
| Jetta City "MEX"05>07 | 2006-2007 | 7 | 2 | ||
| AUDI A3 "BR."M.06> | 2005-2006 | 7 | 2 | 0CJ | |
| Golf "BR.","USA"03>07 | 2002-2007 | 7 | 2 | ||
| Jetta USA | 2001-2005 | 7 | 2 | 1X0 | |
| Golf BR/US | 2001-2002 | 7 | 2 | ||
| AUDI A3-BRASIL. | 2000-2005 | 7 | 2 | ||
| Golf BR/US | 1999-2001 | 7 | 2 | ||
| Eurovan | 1998-2003 | 20 | X | ||
| Jetta "USA"99>01 | 1998-2001 | 7 | 2 | ||
| Eurovan 98 | 1997-1998 | 20 | X | ||
| Eurovan | 1996-1997 | 20 | X |
Platform / generic diagrams (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1J0 platform | 7 | 2 | 1JM | ||
| 1C0 platform | 7, 10, 5 | 2 | |||
| 701 platform | 20 | ||||
| 7L6 platform | 37 | 3 | |||
| 1J0 platform | 7 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Oval Hexagon Socket Head Bolt is fitted on: Audi Q7 qu. 3.0 TDI 2009-2015; Audi Q7 07> 2006-; TRANSPORTER/4MOTION 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; New Beetle 06> 2005-; ALHAMBRA/4MOTION 2005-; Touareg 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; CAMPMOBILE(T5) 2004-2006; Phaeton (lang) 2003-2006; Touareg 2003-2005; New Beetle Cabrio. 2003-2005; TRANSPORTER 2003-2005; Cayenne 2002-2006; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; New Beetle 2001-2005; AUDI A3/S3/QUATTRO 2000-2003; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002; New Beetle 1998-2001; TOLEDO/LEON/LEON-4 1998-2001; ALHAMBRA 1996-2000; AUDI A3/S3/QUATTRO 1996-2000; SHARAN/SYNCRO 1995-2000; Golf Brasil "BR."08> 2007-; Jetta City "Mex"08> 2007-; Jetta City "MEX"05>07 2006-2007; AUDI A3 "BR."M.06> 2005-2006; Golf "BR.","USA"03>07 2002-2007; Jetta USA 2001-2005; Golf BR/US 2001-2002; AUDI A3-BRASIL. 2000-2005; Golf BR/US 1999-2001; Eurovan 1998-2003; Jetta "USA"99>01 1998-2001; Eurovan 98 1997-1998; Eurovan 1996-1997; 1J0 platform; 1C0 platform; 701 platform; 7L6 platform.
