N90717501 O-Ring
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

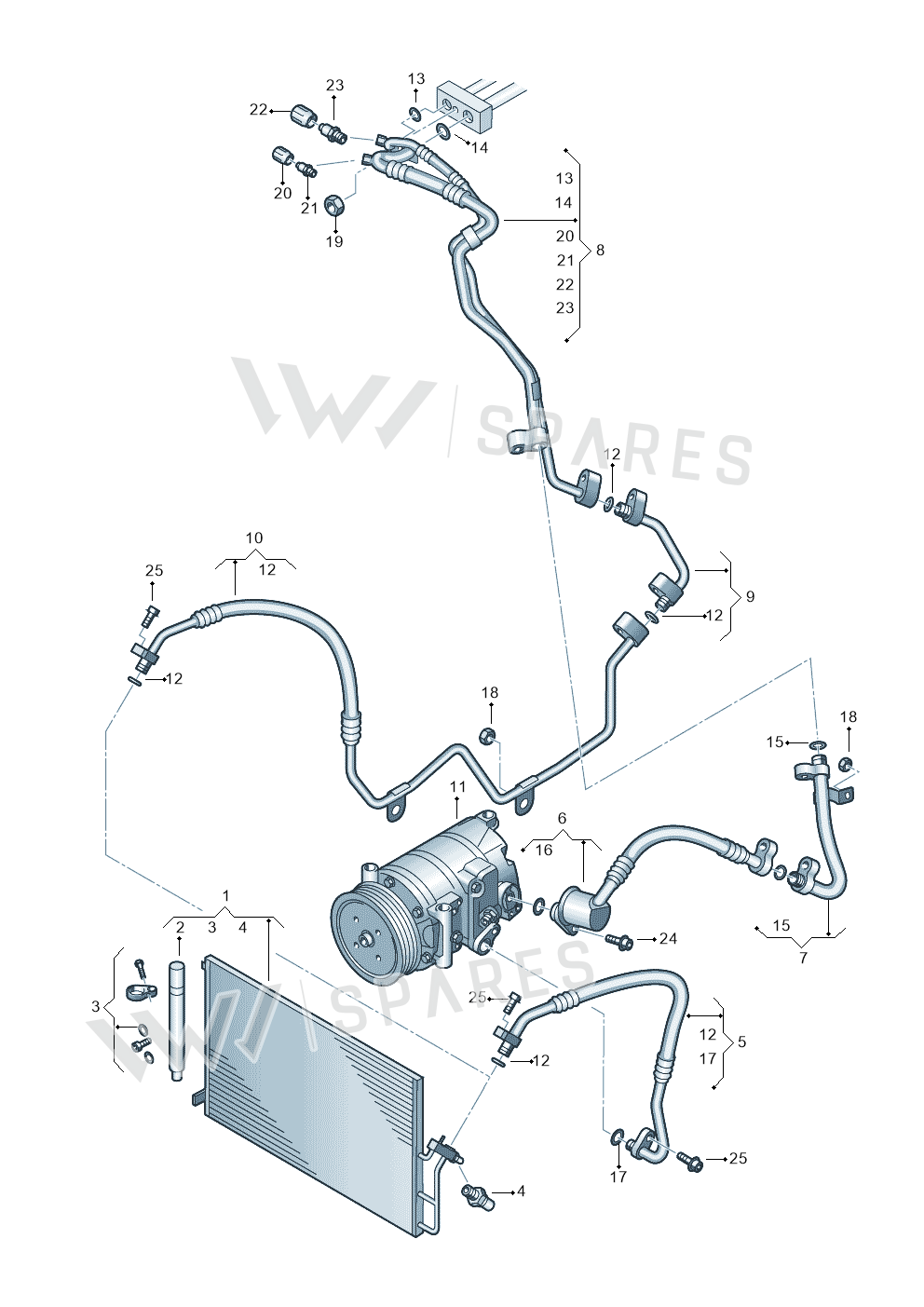

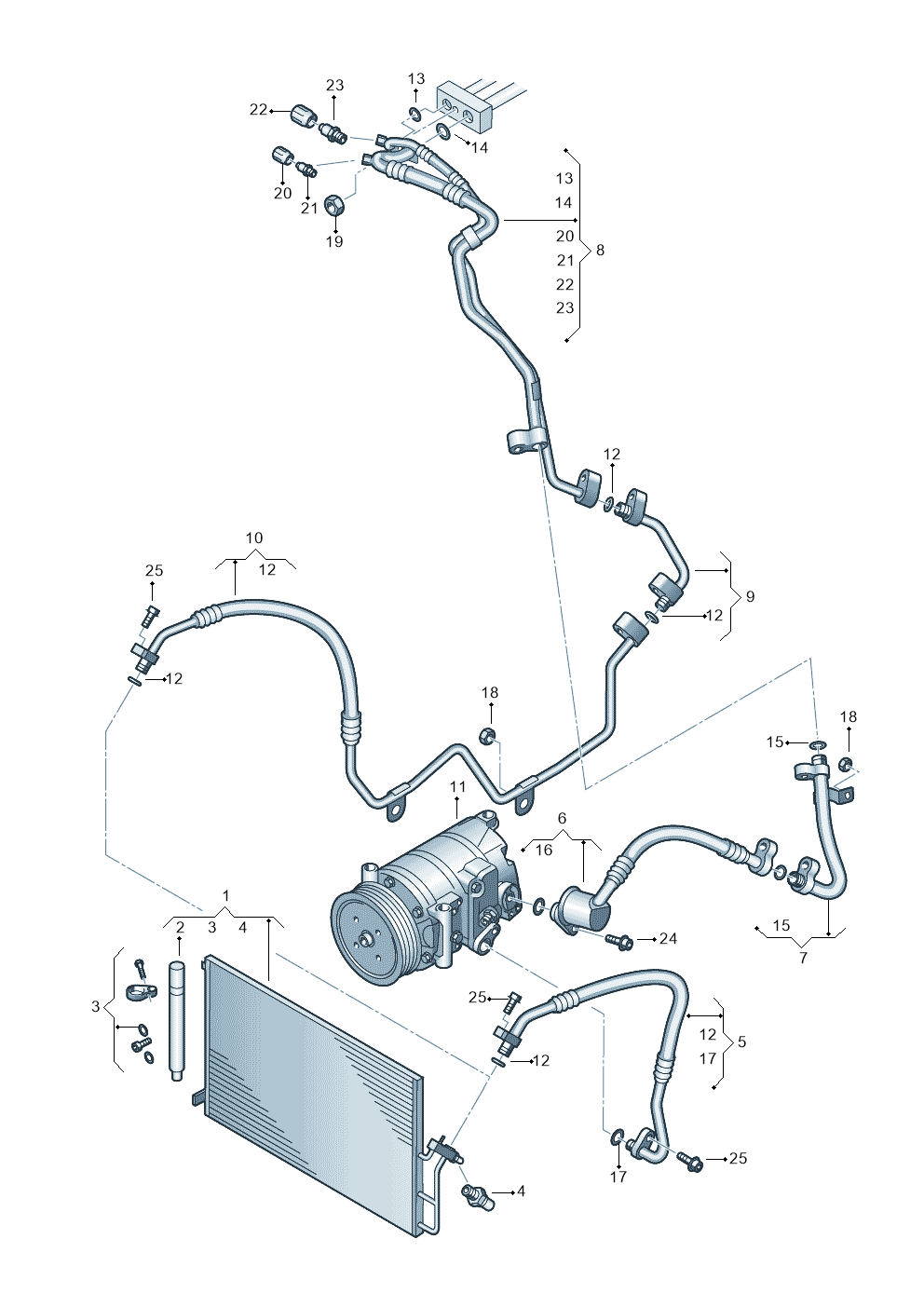

4 vehiclesO-ring — locate O-Ring in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly21
- 1Capacitor 2E0820413
- 2Drier 2E1820193A
- 3Fixing Set 2E0898191
- 4Sensor 2E0907271D
- 5Line 2E0820721
- 6Line 2E0820721AB
- 7Line 2E0820721E
- 8Line 2E0820721D
- 9Line 2E0820721C
- 10Line 2E0820721B
- 12Seal Ring 2E0867471D
- 13Seal Ring 2E0820190
- 15Seal Ring 2E0867471F
- 16Seal Ring 2E0867471C
- 17Seal Ring 2E0867471E
- 18Part WHT000709
- 20Part 3C0820581
- 21Valve 2E0819809B
- 22Part 3C0820231
- 23Valve 2E0819809C
- 24Screw N10414402
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Crafter 35 panel | 2011-2016 | 14, 5 | X | |
| CRAFTER 06> | 2006- | 14, 5 | X | |
| LT, LT 4X4 | 2003-2006 | 18 | 1 | 9AB |
| LT, LT 4X4 | 1996-2003 | 18 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
O-Ring is fitted on: Crafter 35 panel 2011-2016; CRAFTER 06> 2006-; LT, LT 4X4 2003-2006; LT, LT 4X4 1996-2003.
