N90767701 Double Stud With Hexagon Drive
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

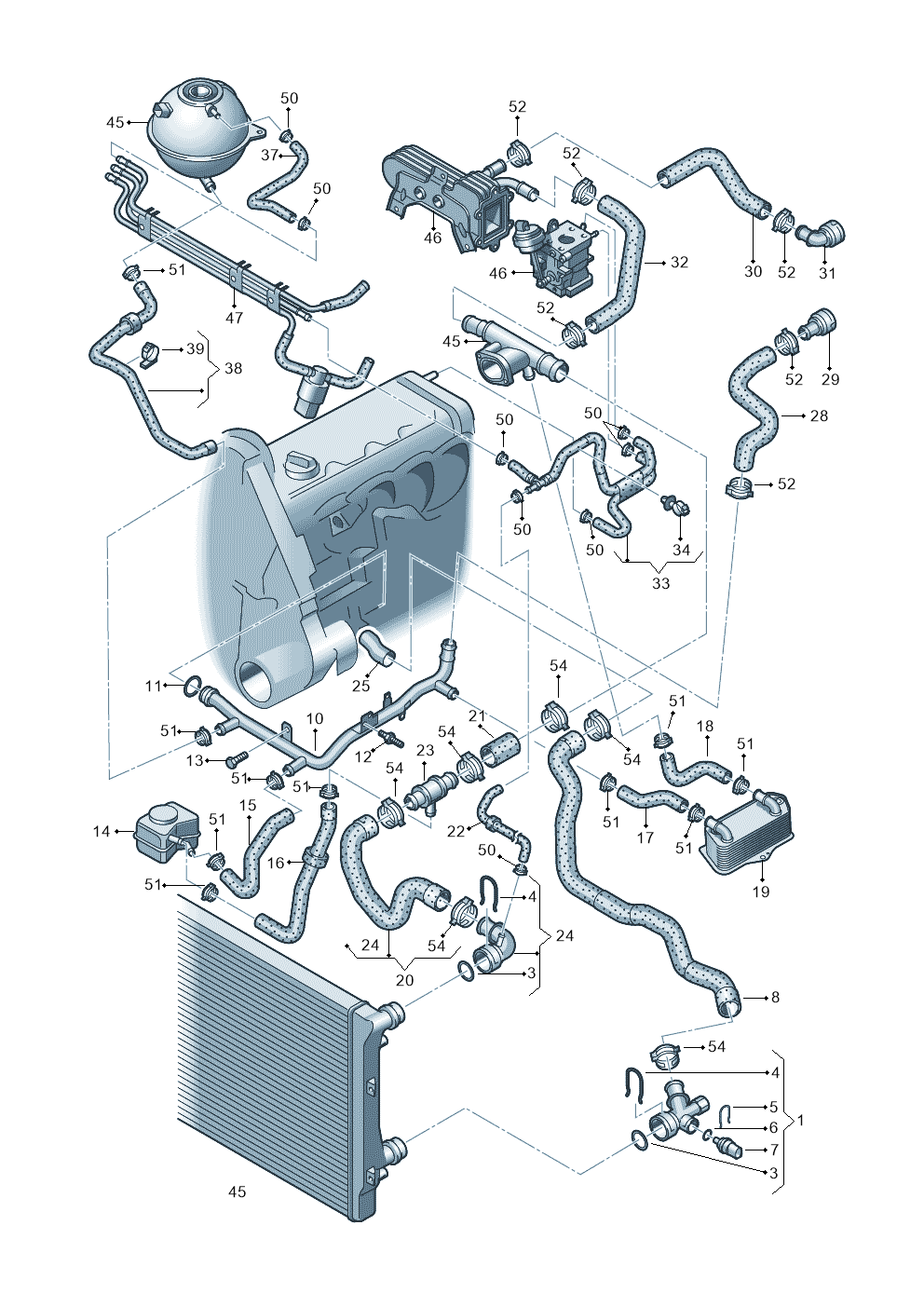

10 vehiclesDouble Stud With Hexagon Drive — locate Double Stud With Hexagon Drive in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Coupl Piece 1K0122291AD
- 1Coupl Piece 1K0122291P
- 3Seal Ring N90765301
- 4Spring 1J0121142
- 5Spring 032121142
- 6Seal Ring N90316801
- 8Part 1K0121086AN
- 10Water Pipe 038121065CS
- 11Seal Ring 06B121687
- 13Bolt N0102276
- 15Hose 1K0121058AD
- 16Hose 1K0121096AB
- 20Hose 1K0122101BP
- 22Hose 1K0121447DH
- 22Hose 1K0121447AM
- 24Coupl Piece 6Q0122291E
- 28Hose 1K0121073S
- 29Coupl Piece 3B0122291B
- 30Hose 1K0122157CR
- 30Part 3C0122157FC
- 31Coupl Piece 1K0122291H
- 32Hose 1K0121157AG
- 33Hose 1K0122447BS
- 33Hose 1K0122447FR
- 34Clip N10436201
- 37Hose 1K0121447T
- 38Hose 1K0122109AR
- 39Bracket 1K0121093A
- 50Clamp N90686701
- 51Clamp N90686902
- 52Clamp N90687001
- 53Clamp N90687101
- 54Clamp N90687201
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| ALTEA 07> | 2006- | 12 | 1 | D3W |
| LEON 06> | 2005- | 12 | 1 | D3W |
| Audi A3/S3/quattro | 2005-2007 | 16, 11, 14 | 1 | |
| TOLEDO 05> | 2004- | 12 | 1 | D3W |
| OCTAVIA/COMBI/4X4 04> | 2004- | 12, 13 | 1 | D3W |
| ALTEA | 2004-2006 | 12, 13 | 1 | D3W |
| Audi A4/Avant | 1999-2001 | 5A | 1 | |
| Passat | 1997-2000 | 5A | ||
| Audi A4/Avant F8D-W-> | 1997-1998 | 5A | 1 | |
| Audi A4 F>8D-W-.. | 1995-1997 | 5 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Double Stud With Hexagon Drive is fitted on: ALTEA 07> 2006-; LEON 06> 2005-; Audi A3/S3/quattro 2005-2007; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; Audi A4/Avant 1999-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Audi A4 F>8D-W-.. 1995-1997.
