N90815201 12-Point Head Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

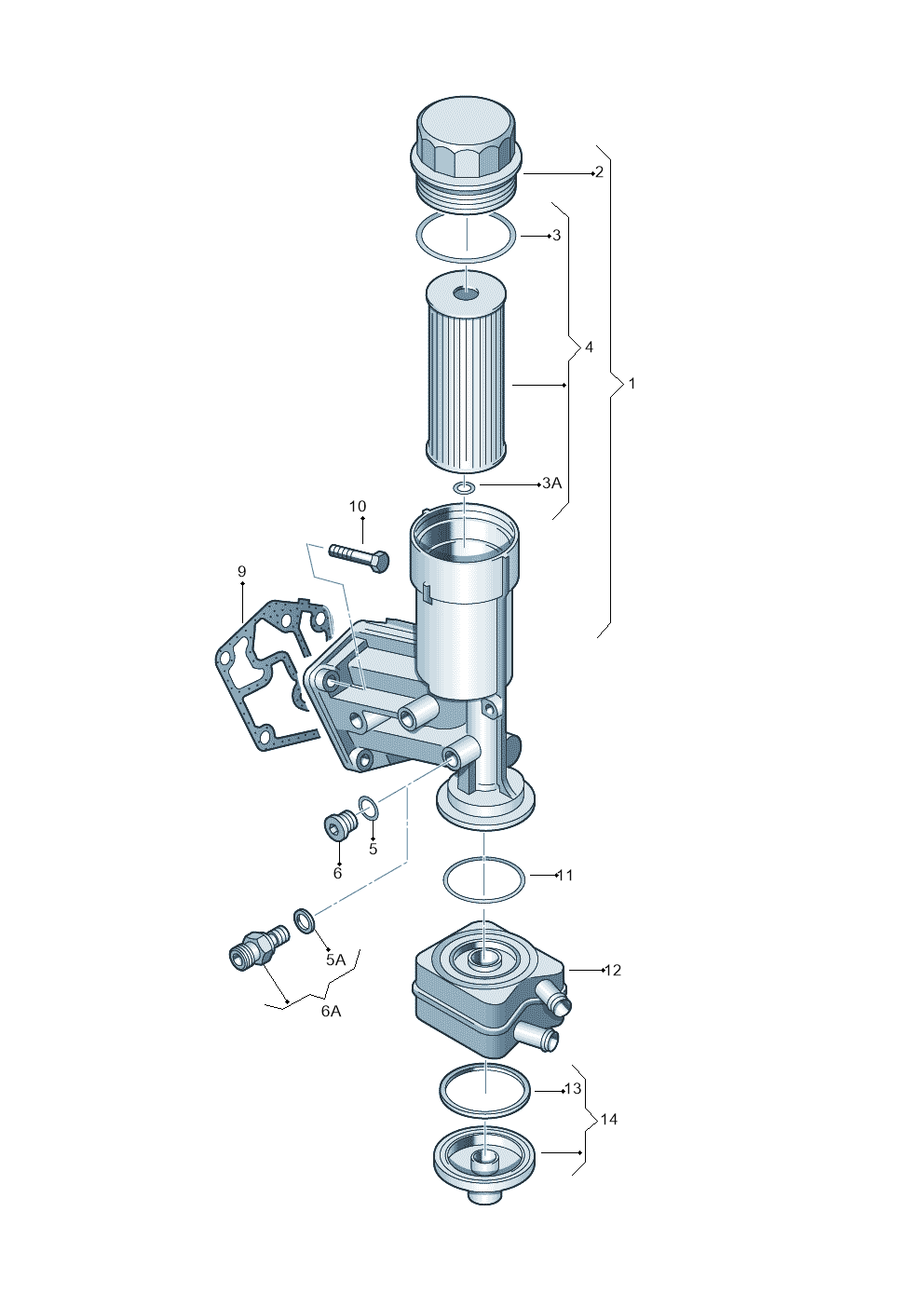

32 vehicles12-point Head Bolt — locate 12-Point Head Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Bracket 038115389D
- 2Cover 038115433
- 3Seal Ring N90782301
- 3ASeal Ring N90043201
- 4Filterelem 074115562
- 5Seal Ring N0138115
- 6Screw N0160241
- 9Seal 038115441A
- 11Gasket 028117070B
- 11Seal 038117070A
- 11Seal Ring 028117070
- 12Oil Cooler 028117021L
- 12Oil Cooler 038117021B
- 12Oil Cooler 068117021BX
- 12Oil Cooler 068117021B
- 12Oil Cooler 028117021C
- 12Oil Cooler 028117021E
- 13Seal 038117070
- 14Cover 038117061B
- 14Cover 038117061C
Vehicle fitment table32
Europe (28)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| TRANSPORTER/4MOTION 07 | 2006-2007 | 10 | 4 | |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 10 | 4 | |
| CAMPMOBIL (T5) 07 | 2006-2007 | 10 | 4 | |
| SHARAN/4MOTION | 2005- | 10 | 4 | |
| Audi A4/S4/Av./qu. 05> | 2005- | 10 | 4 | TD0 |
| Passat/4Motion | 2005-2007 | 10 | 4 | |
| CAMPMOBILE(T5) | 2004-2006 | 10 | 4 | |
| TOURAN | 2003-2005 | 10 | 4 | |
| TRANSPORTER | 2003-2005 | 10 | 4 | D3L |
| LUPO/3L TDI | 2003-2005 | 10 | 4 | MA7 |
| Jetta/Wagon | 2002-2006 | 10 | 4 | |
| PASSAT/4MOTION/W8 | 2002-2005 | 10 | 4 | |
| POLO | 2001-2005 | 10 | 4 | T0U |
| IBIZA | 2001-2005 | 10 | 4 | |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 10 | 4 | |
| Jetta Wagon 02 | 2001-2002 | 10 | 4 | |
| Jetta Wagon | 2001-2001 | 10 | 4 | |
| AUDI A2 | 2000-2005 | 10 | 4 | |
| Passat/4Motion/W8 | 2000-2002 | 10 | 4 | |
| SHARAN/4MOTION | 2000-2002 | 10 | 4 | MF7 |
| CORDOBA/VARIO | 1999-2002 | 10 | 4 | |
| POLO CLASSIC/VARIANT | 1999-2001 | 10 | 4 | |
| POLO | 1999-2001 | 10 | 4 | T0U |
| LUPO/3L TDI | 1998-2003 | 10, 5 | 4 | |
| Golf | 1998-2000 | 10 | 4 | |
| Passat syncro/4Motion | 1998-2000 | 10 | 4 | |
| Passat | 1997-2000 | 10 | 4 | |
| DIES.-IND.-MOT.1,9>2,0 | 1990-2007 | 11, 10 | 4 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| POLO CLASSIC "ZA"05> | 2005- | 10 | 4 | T0U |
| Golf 'R32' n. "USA" | 2004-2004 | 10 | 4 | |
| POLO CLASSIC "ZA"03>05 | 2003-2005 | 10 | 4 | |
| Eurovan | 1998-2003 | 10 | 12 |
Diagrams & fitment data powered by oemdiagrams.com
12-Point Head Bolt is fitted on: TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; SHARAN/4MOTION 2005-; Audi A4/S4/Av./qu. 05> 2005-; Passat/4Motion 2005-2007; CAMPMOBILE(T5) 2004-2006; TOURAN 2003-2005; TRANSPORTER 2003-2005; LUPO/3L TDI 2003-2005; Jetta/Wagon 2002-2006; PASSAT/4MOTION/W8 2002-2005; POLO 2001-2005; IBIZA 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; AUDI A2 2000-2005; Passat/4Motion/W8 2000-2002; SHARAN/4MOTION 2000-2002; CORDOBA/VARIO 1999-2002; POLO CLASSIC/VARIANT 1999-2001; POLO 1999-2001; LUPO/3L TDI 1998-2003; Golf 1998-2000; Passat syncro/4Motion 1998-2000; Passat 1997-2000; DIES.-IND.-MOT.1,9>2,0 1990-2007; POLO CLASSIC "ZA"05> 2005-; Golf 'R32' n. "USA" 2004-2004; POLO CLASSIC "ZA"03>05 2003-2005; Eurovan 1998-2003.
