N90833101 Oval Hexagon Socket Head Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

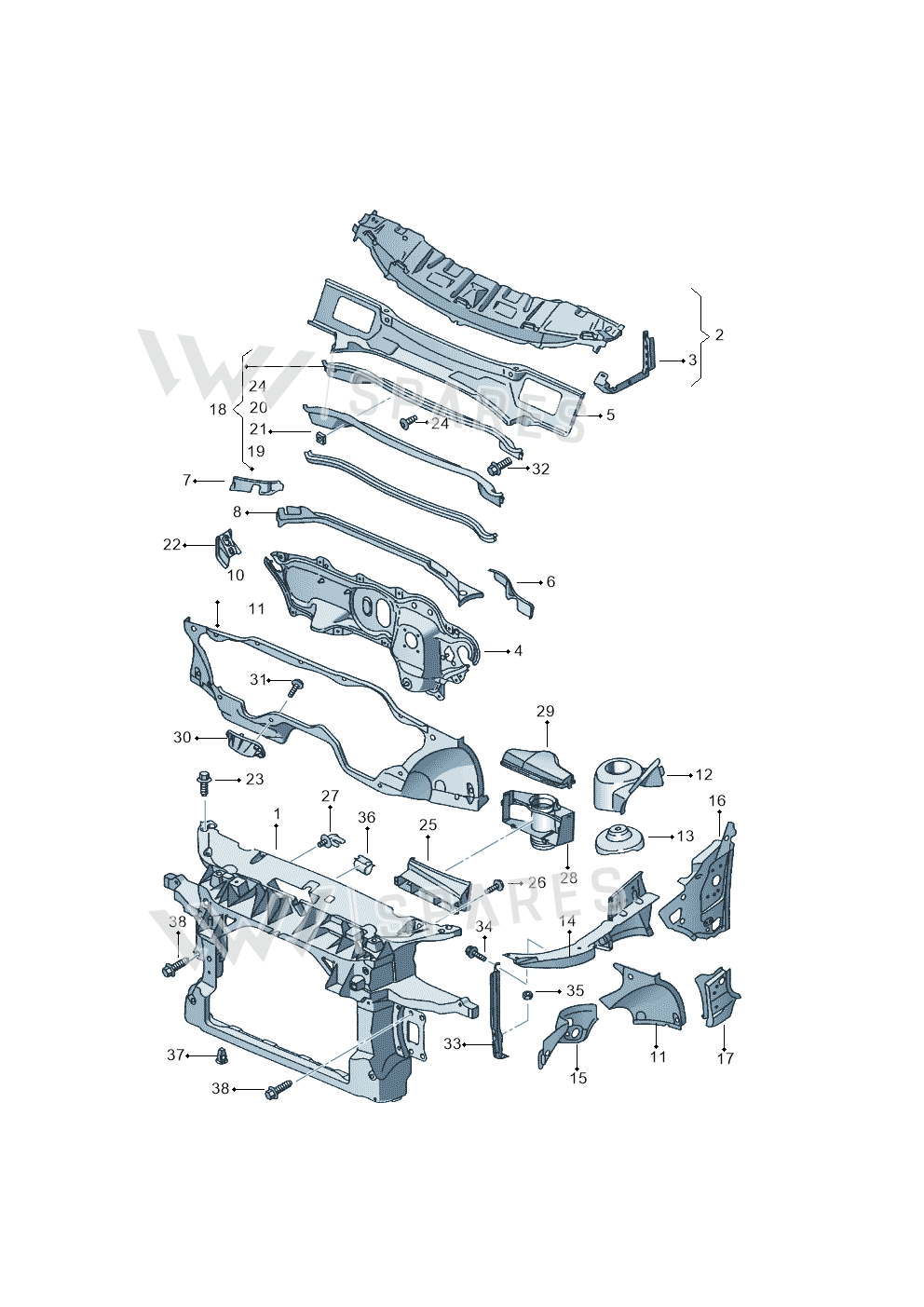

17 vehiclesOval Hexagon Socket Head Bolt — locate Oval Hexagon Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Frontpanel 5P0805588B
- 2Cross Member 5P0803141A
- 3PlateLeft5P0810121B
- 3PlateLeft5P0810121C
- 3PlateRight5P0810122B
- 3PlateRight5P0810122C
- 4Cross Pan 1K1804011N
- 4Cross Pan 1K2804011D
- 4Cross Pan 1K2804011E
- 4Cross Pan 1K1804011K
- 5Cross Pan 1K0805422B
- 5Cross Pan 1K0805422
- 6Clos PlatLeft5P0805087A
- 6Clos PlatLeft5P0805087B
- 7Clos PlatRight5P0805088A
- 7Clos PlatRight5P0805088B
- 8Reinforce 1K0805364
- 10Frame 1K0802165A
- 11Clos ElementRight1K0802222B
- 11Clos ElementLeft1K0802221A
- 12PartRight8P0806164
- 12PartLeft8P0806163
- 13PartRight1K0809072
- 13PartLeft1K0809071
- 14PartRight5P0809146G
- 14Side MemberLeft5P0809145C
- 14Side MemberLeft5P0809145F
- 15Wheel HousingRight1K0805148
- 15Wheel HousingLeft1K0805147A
- 16Pillar ARight5P0802124B
- 16Pillar ALeft5P0802123B
- 17Pillar ARight5P0802624A
- 17Pillar ALeft5P0802623A
- 18Rip Plate 5P0805275A
- 18Rip Plate 5P0805275D
- 19Seal 5P0819142
- 20Sound Abs 5P0863993C
- 21Collar Nut N90757901
- 22RetainerRight1K0810812
- 22BracketLeft1K0810811
- 23Bolt N90280901
- 24Bungs 357863119
- 25Air Channel 5P0805971
- 25Air Channel 1K0805971C
- 26Bolt N10412804
- 27Bracket 1C0971845
- 28Air Guide 1K0805962A
- 28Air Guide 1K0805962C
Vehicle fitment table17
Europe (14)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| ALTEA 07> | 2006- | 31 | 3 | |
| GOLF PLUS 05> | 2005- | 44 | 3 | |
| JETTA 06> | 2005- | 32 | 3 | L0R |
| LEON 06> | 2005- | 31 | 3 | |
| Passat/4Motion | 2005-2007 | 19 | 3 | |
| Audi A3/S3/quattro | 2005-2007 | 35 | 3 | L0R |
| TOURAN | 2005-2006 | 44 | 3 | |
| TOLEDO 05> | 2004- | 31 | 3 | L0R |
| OCTAVIA/COMBI/4X4 04> | 2004- | 44 | 3 | |
| ALTEA | 2004-2006 | 31 | 3 | |
| Phaeton (lang) | 2003-2006 | 28 | X | |
| TOURAN | 2003-2005 | 44 | 3 | |
| GOLF | 2003-2005 | 44 | 3 | |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 19A | 2 | L0L |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| OCTAVIA "CN."07> | 2007- | 44, 18 | 3 | |
| Golf/Rabbit | 2005-2007 | 44 | 3 | |
| TOURAN (SVW) "CN"04> | 2004- | 44 | 3 |
Diagrams & fitment data powered by oemdiagrams.com
Oval Hexagon Socket Head Bolt is fitted on: ALTEA 07> 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; Phaeton (lang) 2003-2006; TOURAN 2003-2005; GOLF 2003-2005; Audi A4/S4 Cabrio./qu. 2002-2006; OCTAVIA "CN."07> 2007-; Golf/Rabbit 2005-2007; TOURAN (SVW) "CN"04> 2004-.
