Target · Diagram
Find this reference above

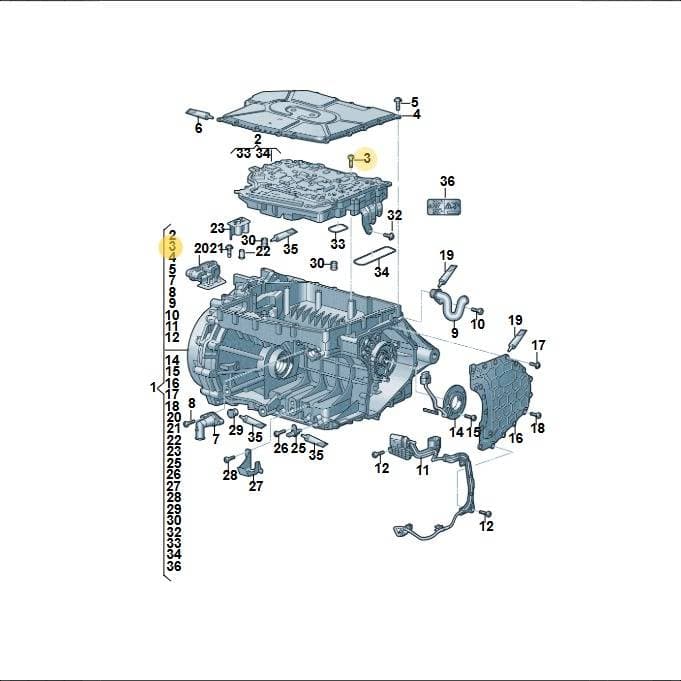

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen socket head bolt, part number N91198201. This specialized fastener is used internally within the transmission assembly to secure the valve body or mechatronic control unit to the main housing. Its socket head design allows for precise installation in tight internal clearances. Genuine OEM hardware is critical for internal transmission work, as it meets the exact metallurgical standards required to operate submerged in transmission fluid without degrading or losing tension.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 73181568
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping weight
- 0.01 kg
Parts diagram & fitment
1 vehicleScrew — locate N91198201 Volkswagen Socket Head Bolt | Transmission in the official exploded view and explore the surrounding assembly.
Parts in this assembly(19)
- 1FrontlightRight5Z1941006J
- 1FrontlightLeft5Z1941007M
- 1FrontlightLeft5Z1941007N
- 1FrontlightRight5Z1941008M
- 1FrontlightRight5Z1941008N
- 1FrontlightLeft5Z1941005J
- 3Part 5Z1953123A
- 3Part 5Z1953123
- 4Holder 5U0953053A
- 5Bulb N0177532
- 6Bulb N0177612
- 6Bulb N10320101
- 6Part N0177632
- 7Bulb N10256401
- 9Part 5Z1941607
- 9Part 5U0941607C
- 10Part WHT002473
- 11Screw N10569601
- 11Bolt WHT004834
Diagrams & fitment data powered by oemdiagrams.com
N91198201 Volkswagen Socket Head Bolt | Transmission is fitted on: Crossfox 2009-2014.
