036117070 Seal
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

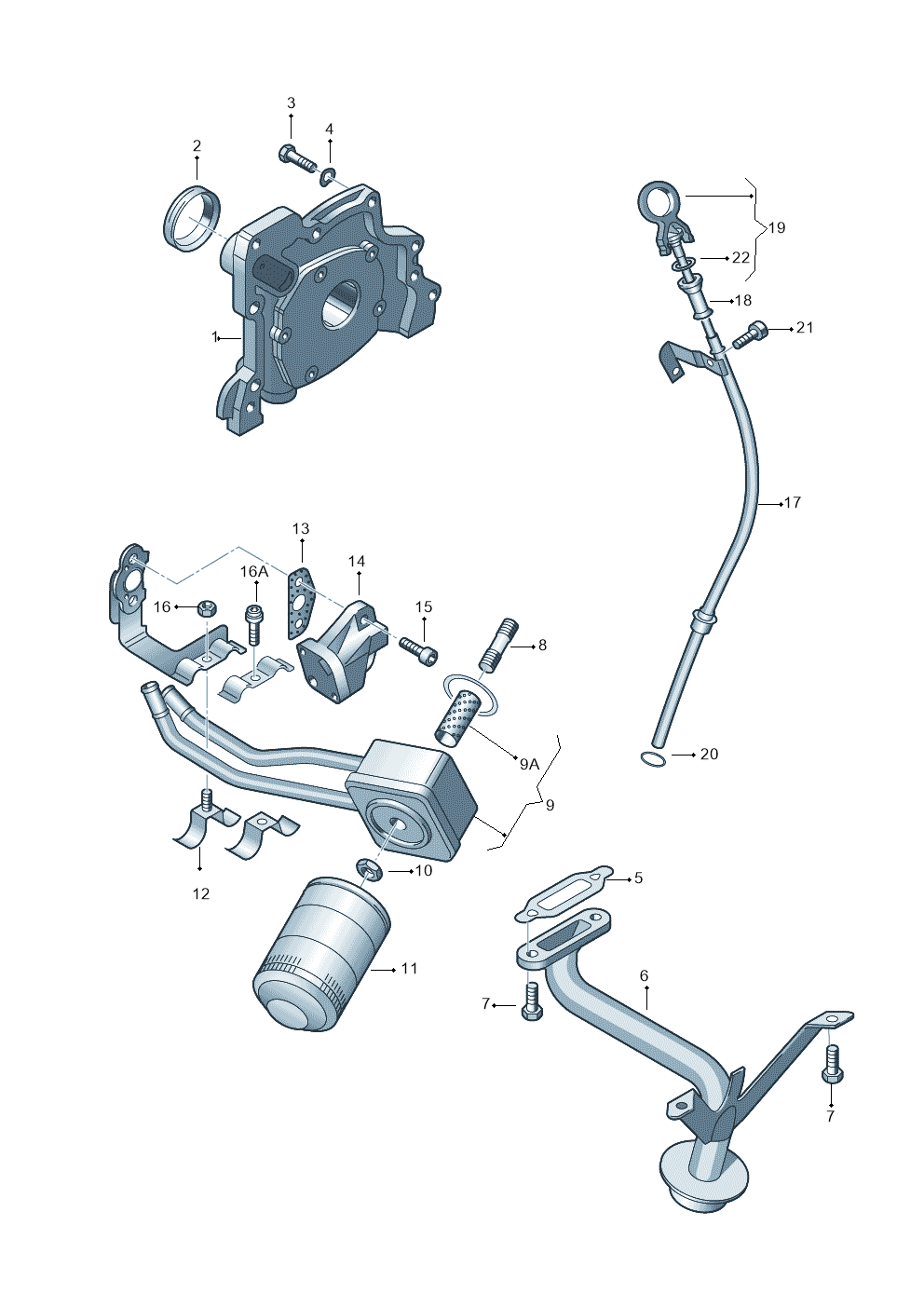

22 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly17
- 1Oil Pump 036115105D
- 2Seal 036103085H
- 3Bolt N0102228
- 4Washer N0122265
- 5Seal 036115111
- 7Bolt N0902612
- 8Union 036115721B
- 10Part 068115723
- 11Oil Filter 030115561AB
- 12Bracket 036115641E
- 13Seal 036131547G
- 16Hexagon Nut N01100624
- 16AScrew N10226102
- 18Guide 030115636A
- 20Seal Ring N90032204
- 21Screw N0147107
- 22Seal Ring 030115444
Vehicle fitment table22
Europe (21)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| LUPO/3L TDI | 2003-2005 | 9A | 1 | ME3 | |
| Jetta/Wagon | 2002-2006 | 9A | 1 | T27 | |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 9A | 1 | D3H | |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 9A | 1 | T27 | |
| Jetta Wagon 02 | 2001-2002 | 9A | 1 | T27 | |
| Jetta Wagon | 2001-2001 | 9A | 1 | ||
| AUDI A2 | 2000-2005 | 16 | 1 | T94 | |
| Audi A8 quattro | 1999-2002 | 30A | |||
| Audi A4/Avant | 1999-2001 | 30A | |||
| Audi A4/Av.qu. | 1999-2001 | 30A | |||
| POLO | 1999-2001 | 16 | 1 | ARC,AVY | MU7 |
| LUPO/3L TDI | 1998-2003 | 9A | 1 | ARR,AVY | ME3 |
| AUDI A8 | 1998-2002 | 30A | |||
| TOLEDO/LEON/LEON-4 | 1998-2001 | 9A | 1 | ||
| Golf | 1998-2000 | 9A | 1 | ||
| Audi A6/Avant | 1997-2001 | 30A | 62,8 | ||
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 30A | 73MM | ||
| Audi A4/Avant F8D-W-> | 1997-1998 | 30A | |||
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 30A | |||
| Audi A8 | 1996-1998 | 30A | |||
| Audi A8 qu. | 1996-1998 | 30A | 72,2X3,0 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf 'R32' n. "USA" | 2004-2004 | 9A | 1 | T27 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: LUPO/3L TDI 2003-2005; Jetta/Wagon 2002-2006; TOLEDO/LEON/LEON-4 2001-2006; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; AUDI A2 2000-2005; Audi A8 quattro 1999-2002; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; POLO 1999-2001; LUPO/3L TDI 1998-2003; AUDI A8 1998-2002; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; Audi A6/Avant 1997-2001; Audi A6/Av.qu.F4B-W-> 1997-2001; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A8 1996-1998; Audi A8 qu. 1996-1998; Golf 'R32' n. "USA" 2004-2004.
