059109229L Timing Chain
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

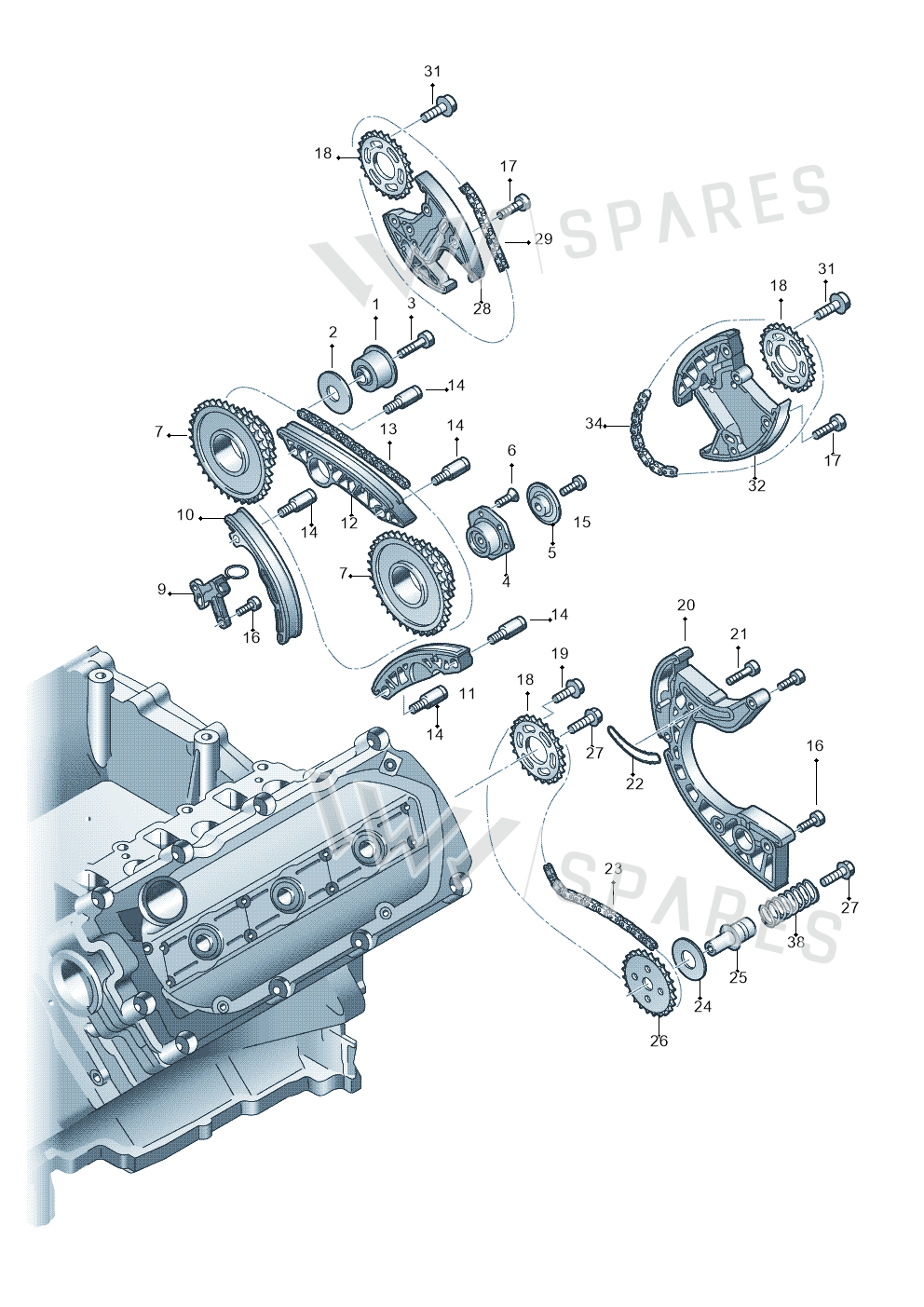

13 vehiclesTiming Chain — locate Timing Chain in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly31
- 1Part 057109224D
- 2Washer WHT000124
- 3Screw N10660901
- 4PartLeft057109224B
- 5Washer 079109435G
- 6Bolt N90954905
- 7Chn Sprckt 059109077E
- 9Tensioner 059109467E
- 10Rail 079109510M
- 11Rail 059109469F
- 12Rail 059109469E
- 13Timing Cha 059109229J
- 14Screw WHT000265
- 15Bolt N10451409
- 16Bolt N10124306
- 17Bolt N10156205
- 18Chn Sprckt 057109116J
- 19Screw N91048802
- 20Tensioner 059109507D
- 21Screw N10554005
- 22Seal 079109139A
- 23Timing Cha 06E109465AQ
- 24Washer 007311517
- 25Shaft 059109341A
- 26Chn Sprckt 079109570AP
- 27Bolt N90893202
- 28TensionerRight057109218K
- 29Timing ChaRight059109229K
- 31Screw N91052201
- 32TensionerLeft059109217C
- 38Press Spring 059109481
Vehicle fitment table13
Europe (12)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A5/S5 Coupe 08> | 2007- | 34 | 1 | D50 |
| Audi A8/S8/qu. lang 08> | 2007- | 12 | 1 | D1D |
| AUDI A4 08> | 2007- | 34 | 1 | D50 |
| Touareg 08> | 2007- | 31 | 1 | D1T |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 12 | 1 | D1N |
| Audi Q7 07> | 2006- | 12 | 1 | |
| AUDI A6 QU.ALLROAD 07> | 2006- | 12 | 1 | |
| Audi A4/S4/Av./qu. 05> | 2005- | 12 | 1 | D1Q |
| Touareg | 2005-2006 | 31 | 1 | D1T |
| Audi A6/S6/Avant/qu. 05> | 2004- | 12 | 1 | D1D,D1N,D1T,D1V,D1W |
| Audi A8/S8/qu. lang | 2003-2007 | 12 | 1 | D1D |
| Phaeton (lang) | 2003-2006 | 31 | 1 | D1T |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| MARINE-MOTOR 02> | 2002- | 31 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Timing Chain is fitted on: Audi A5/S5 Coupe 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; AUDI A4 08> 2007-; Touareg 08> 2007-; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi Q7 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Touareg 2005-2006; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007; Phaeton (lang) 2003-2006; MARINE-MOTOR 02> 2002-.
