0A6409529 Shaft Oil Seal
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

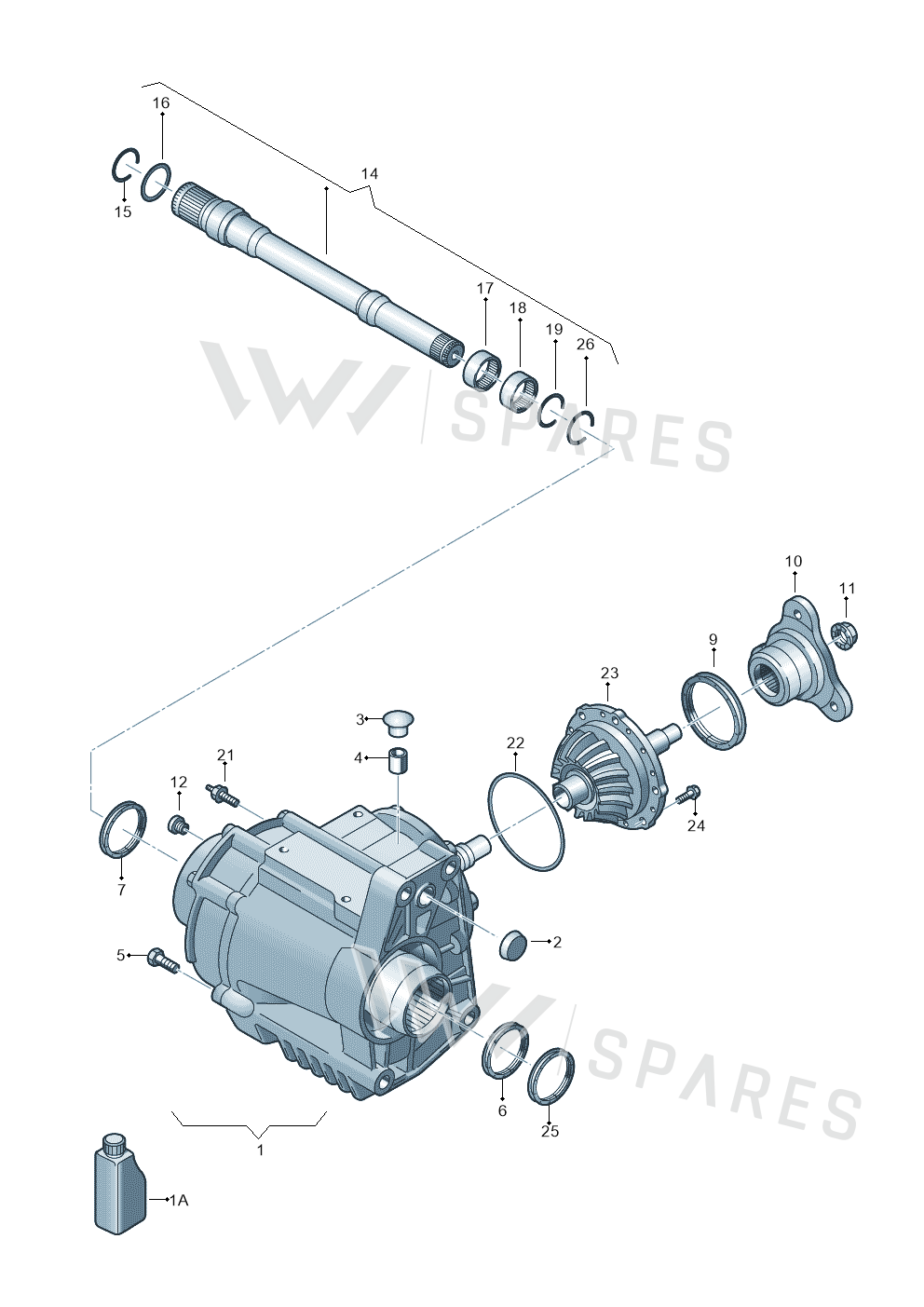

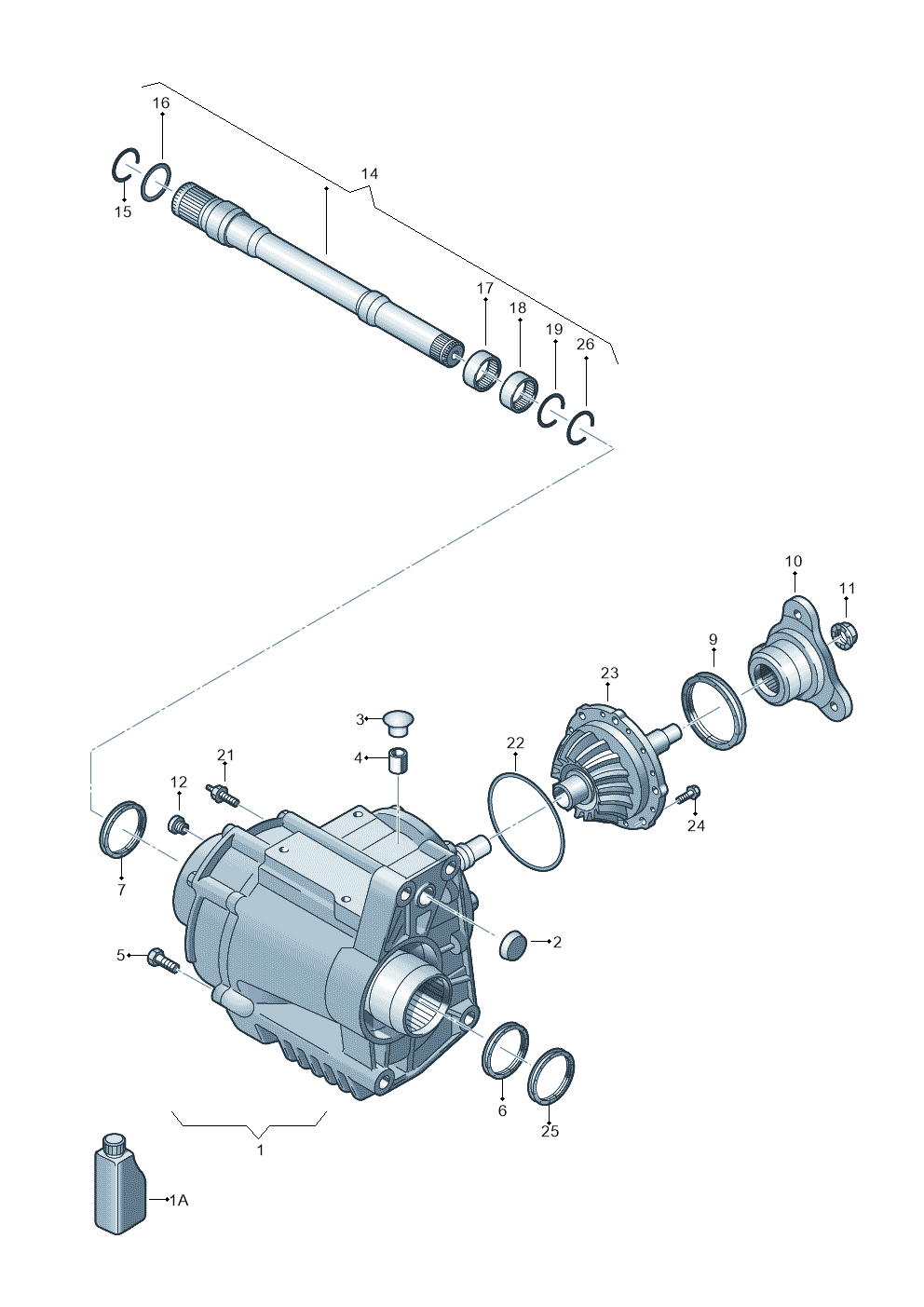

16 vehiclesShaft Oil Seal — locate Shaft Oil Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly21
- 1Gearbox 0A6409053AM
- 1APart G052145S2
- 2Cover N01191410
- 3Ap Cap For Venting The Gearbox Cap For Venting 014301485
- 4Sleeve 02H409275A
- 5Bolt N10404402
- 6Seal 0A6409189C
- 7Seal 0A6409596
- 9Seal 02D525596C
- 10Flange 0A6409273B
- 11Part N90443801
- 12Bolt N90281802
- 14Flanshaft 0A6409351M
- 15Circlip 0A5409413D
- 16Seal Ring WHT001315
- 17Sleeve 012409139A
- 19Circlip 012409419
- 21Stud N91002702
- 22Seal Ring WHT001245
- 24Bolt N10128110
- 26Ring 7E0407297
Vehicle fitment table16
Europe (14)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi RSQ3 qu. 2.5 | 2013-2018 | 25 | 1 | |
| Audi Q3 1.4 | 2012-2016 | 25 | 1 | G1D |
| Tiguan 4Motion | 2011-2018 | 9 | 1 | G0L |
| Passat CC | 2011-2016 | 25 | 1 | |
| Audi Q3 quattro | 2011-2015 | 9, 25 | 1 | G0L |
| Audi RS3 Sportback | 2011-2012 | 25 | 1 | G1D |
| Sharan Blue Motion | 2010-2015 | 9 | 1 | G0L |
| Alhambra Stylance | 2010-2013 | 25 | 1 | |
| Audi TTRS Plus Coupe | 2009-2014 | 25 | 1 | G0L |
| Passat CC | 2008-2012 | 25 | 1 | |
| passat estate | 2008-2011 | 25 | 1 | |
| Passat/4Motion 08 | 2007- | 25 | 1 | |
| TIGUAN 08> | 2007- | 9, 25 | 1 | G0L |
| Passat/4Motion | 2005-2007 | 25 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q3 quattro 2.0 | 2016-2019 | 25 | 1 | G1D |
| Tiguan | 2009-2019 | 25 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Shaft Oil Seal is fitted on: Audi RSQ3 qu. 2.5 2013-2018; Audi Q3 1.4 2012-2016; Tiguan 4Motion 2011-2018; Passat CC 2011-2016; Audi Q3 quattro 2011-2015; Audi RS3 Sportback 2011-2012; Sharan Blue Motion 2010-2015; Alhambra Stylance 2010-2013; Audi TTRS Plus Coupe 2009-2014; Passat CC 2008-2012; passat estate 2008-2011; Passat/4Motion 08 2007-; TIGUAN 08> 2007-; Passat/4Motion 2005-2007; Audi Q3 quattro 2.0 2016-2019; Tiguan 2009-2019.
