0A6409596 Shaft Oil Seal
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

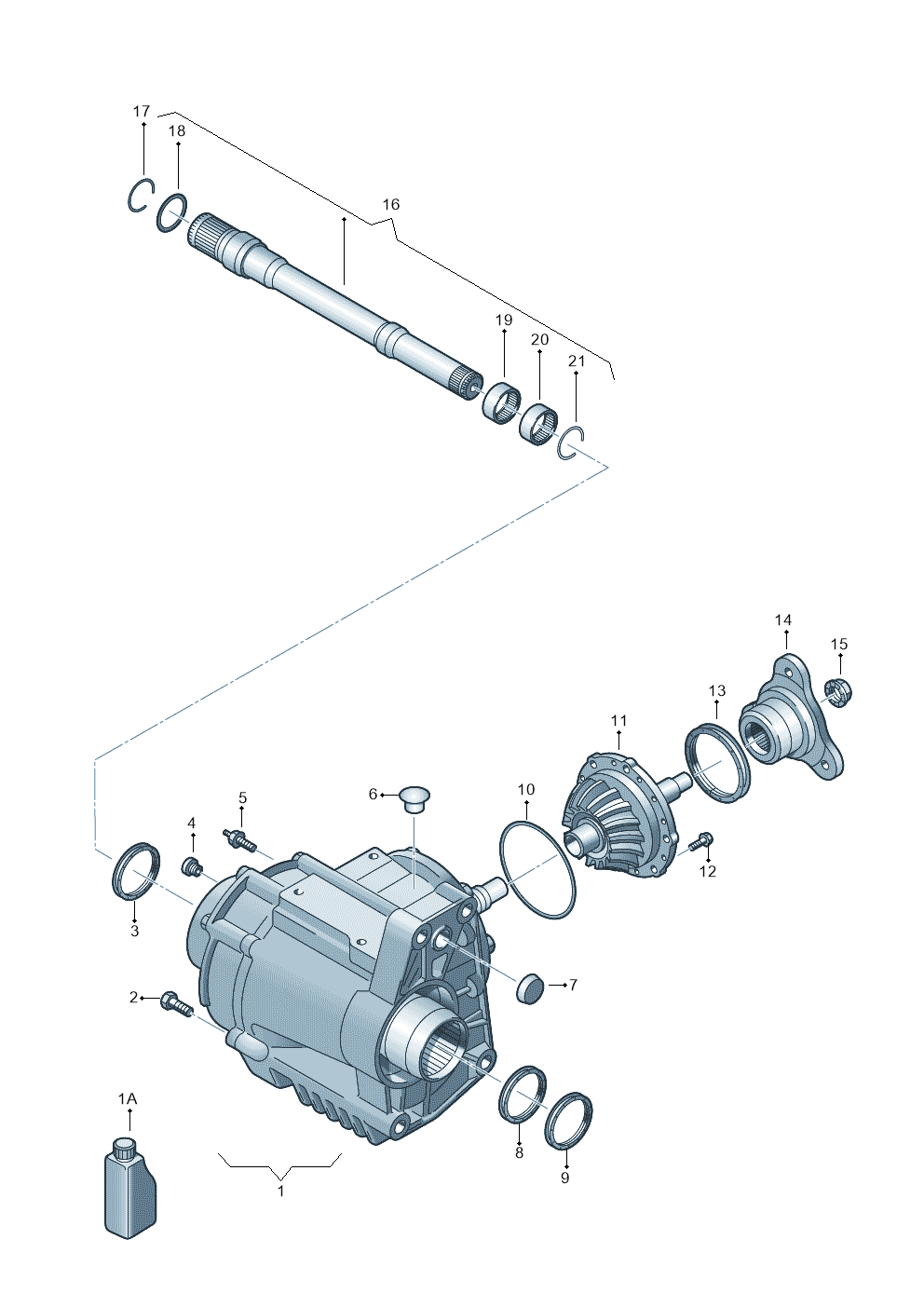

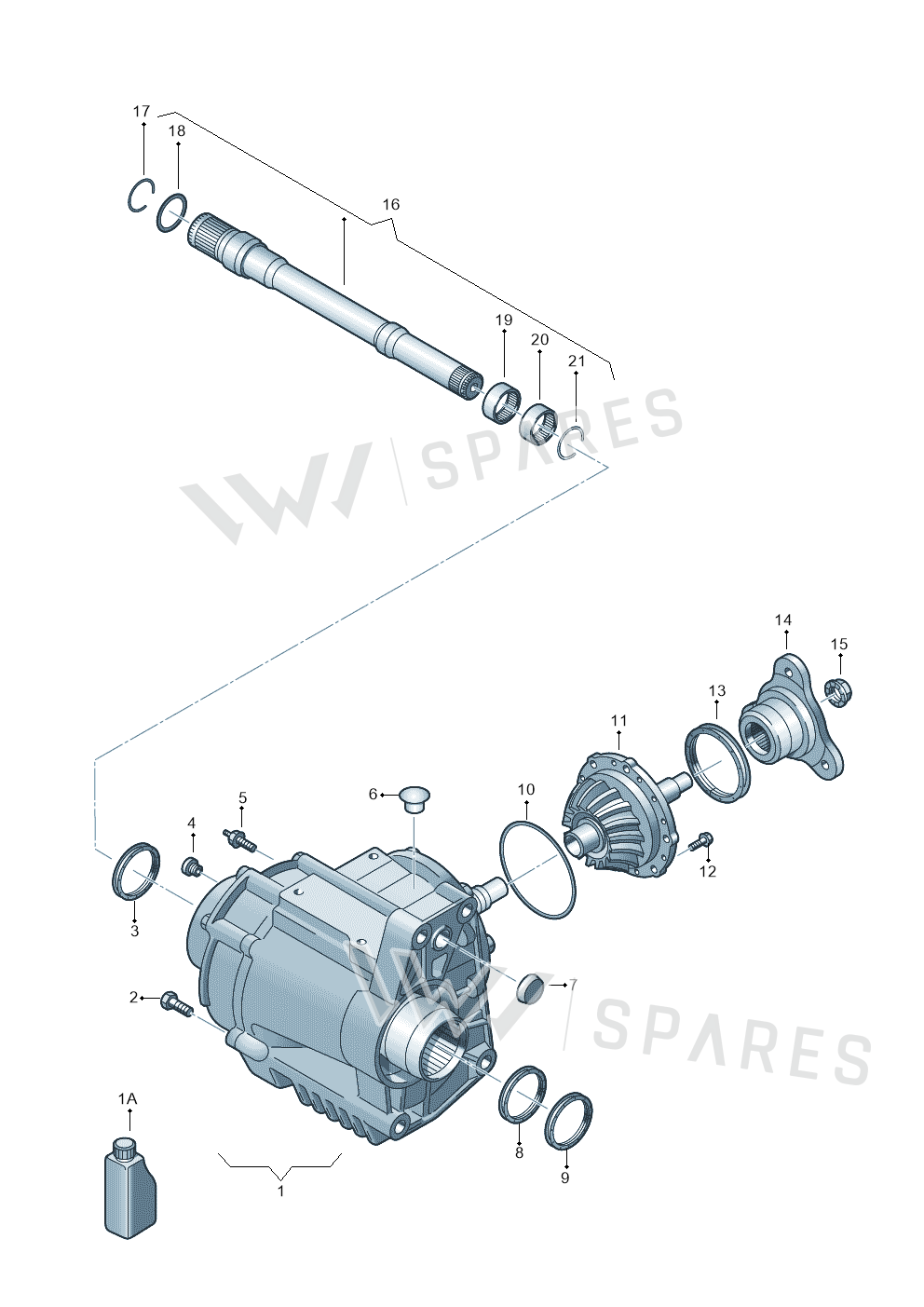

17 vehiclesShaft Oil Seal — locate Shaft Oil Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Gearbox 0A6409053AH
- 1AAxle Oil G052145S2
- 2Bolt N10404402
- 4Bolt N90281802
- 5Stud N91002702
- 6Ap Cap For Venting The Gearbox Cap For Venting 014301485
- 7Cover N01191410
- 8Seal 0A6409189C
- 9Seal 0A6409529
- 10Seal Ring WHT001245
- 12Bolt N10128110
- 13Seal 02D525596C
- 14Flange 0A6409273B
- 15Part N90443801
- 16Flanshaft 0A6409351N
- 16Flanshaft 0A6409351M
- 17Circlip 0A5409413D
- 18Seal Ring WHT001315
- 19Sleeve 012409139A
- 21Circlip 012409419
Vehicle fitment table17
Europe (15)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q3 2.0 TDI | 2014-2019 | 3 | 1 | G0L |
| Audi RSQ3 qu. 2.5 | 2013-2018 | 7 | 1 | |
| Audi Q3 1.4 | 2012-2016 | 7 | 1 | G1D |
| Tiguan 4Motion | 2011-2018 | 3 | 1 | G0L |
| Passat CC | 2011-2016 | 6A | 1 | |
| Audi Q3 quattro | 2011-2015 | 3, 7 | 1 | G0L |
| Audi RS3 Sportback | 2011-2012 | 7 | 1 | G1D |
| Sharan Blue Motion | 2010-2015 | 3 | 1 | G0L |
| Alhambra Stylance | 2010-2013 | 7 | 1 | |
| Audi TTRS Plus Coupe | 2009-2014 | 6A, 7 | 1 | G0L |
| Passat CC | 2008-2012 | 6A | 1 | |
| passat estate | 2008-2011 | 6A | 1 | |
| Passat/4Motion 08 | 2007- | 6A | 1 | |
| TIGUAN 08> | 2007- | 3, 6A | 1 | |
| Passat/4Motion | 2005-2007 | 6A | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q3 quattro 2.0 | 2016-2019 | 7 | 1 | G1D |
| Tiguan | 2009-2019 | 6A | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Shaft Oil Seal is fitted on: Audi Q3 2.0 TDI 2014-2019; Audi RSQ3 qu. 2.5 2013-2018; Audi Q3 1.4 2012-2016; Tiguan 4Motion 2011-2018; Passat CC 2011-2016; Audi Q3 quattro 2011-2015; Audi RS3 Sportback 2011-2012; Sharan Blue Motion 2010-2015; Alhambra Stylance 2010-2013; Audi TTRS Plus Coupe 2009-2014; Passat CC 2008-2012; passat estate 2008-2011; Passat/4Motion 08 2007-; TIGUAN 08> 2007-; Passat/4Motion 2005-2007; Audi Q3 quattro 2.0 2016-2019; Tiguan 2009-2019.
