1H0422376C End Cap
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

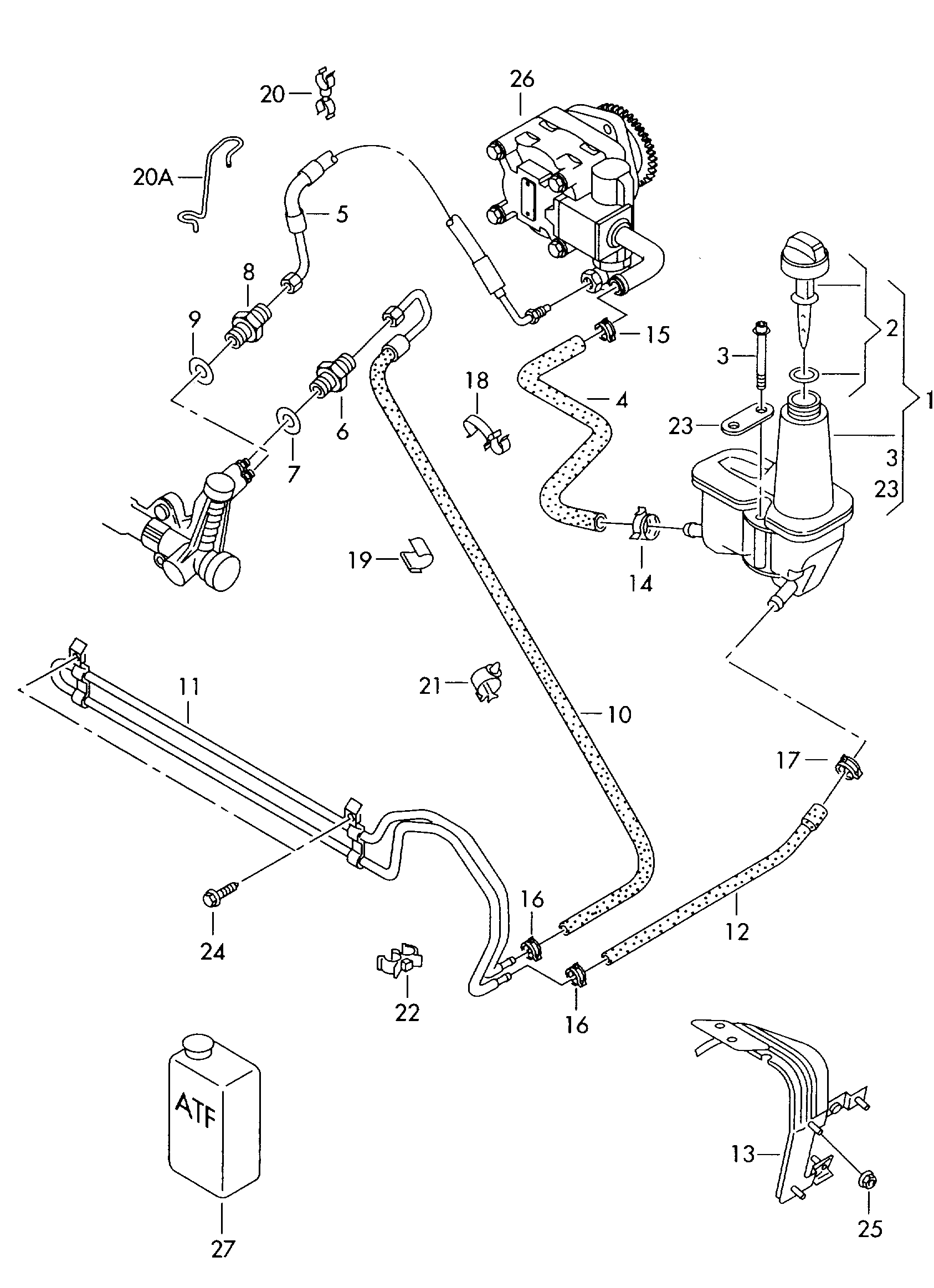

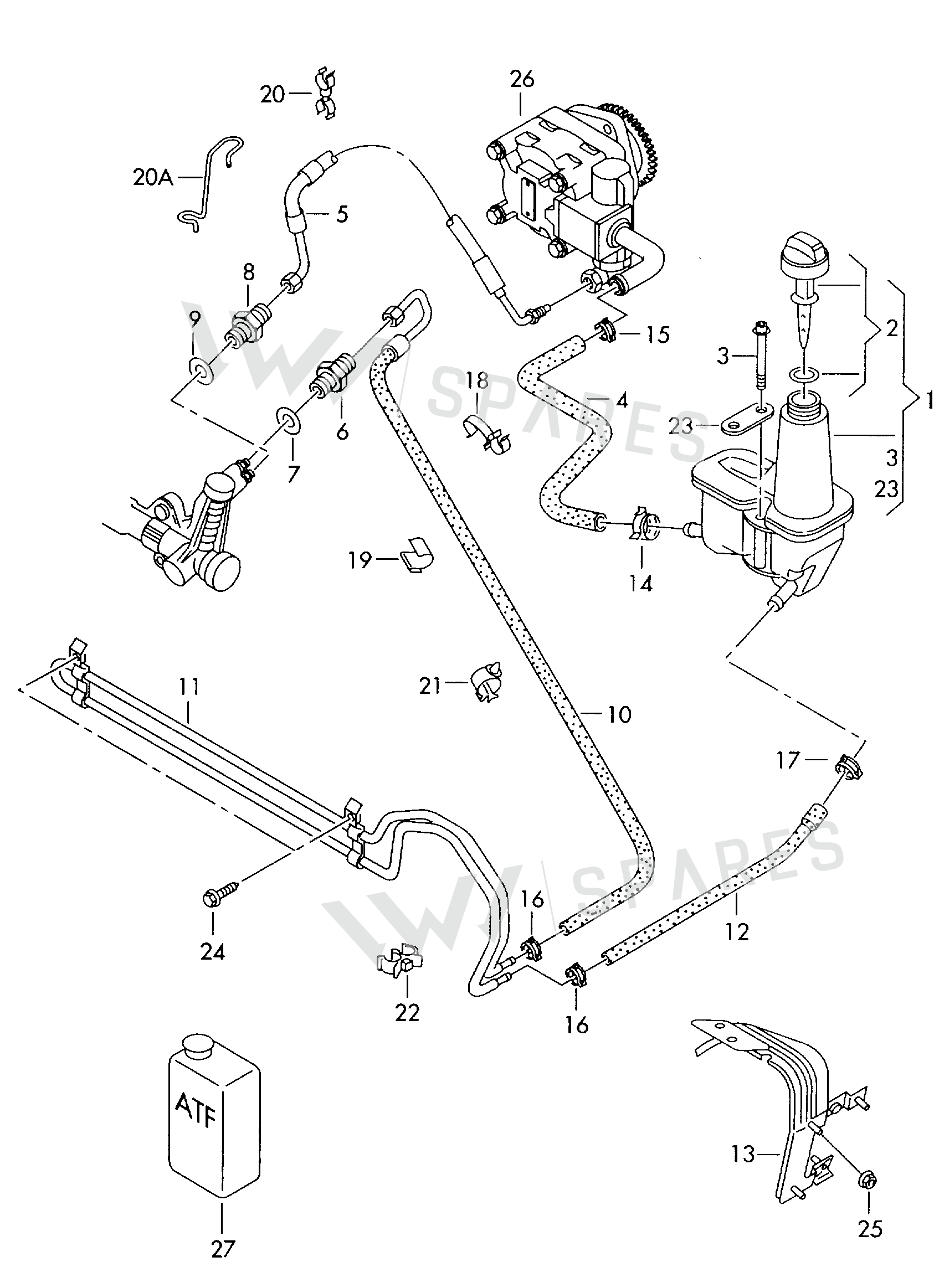

31 vehiclesEnd Cap — locate End Cap in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 3Screw N0147222
- 4Hose 2D0422889G
- 4Hose 2D0422889A
- 5Hose 2D2422893L
- 5Hose 2D1422893L
- 6Union 2D0422287A
- 7Seal Ring N0138444
- 8Union 2D0422287
- 9Seal Ring N0138149
- 10Hose 2D1422891E
- 10Hose 2D2422891D
- 10Hose 2D1422891D
- 11Cool Pipe 2D0422896C
- 12Hose 2D0422895C
- 13Bracket 2D0422491A
- 14Clamp N90686902
- 15Clamp N90561801
- 16Clamp N90770201
- 17Clamp N90926401
- 18Bracket N10316901
- 19Clip 8A0971848C
- 20Part 701422921
- 20Bracket 192711532
- 20ARetainer 2D1422925
- 21Bracket N10424301
- 22Bracket N10441301
- 24Bolt N10335202
- 25Collar Nut N90175205
- 27Atf Oil G052162A2
Vehicle fitment table31
Europe (24)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| LT, LT 4X4 | 2003-2006 | 2 | 1 | ||
| GOLF CABRIO | 2002-2002 | 2 | 1 | 1N1,G0C,G0E | |
| CORDOBA/VARIO | 1999-2002 | 2 | 1 | ||
| IBIZA | 1999-2002 | 2 | 1 | ||
| caddy combi./del.van | 1998-2005 | 2 | 1 | ||
| GOLF CABRIO | 1998-2001 | 2 | 1 | ||
| LT, LT 4X4 | 1996-2003 | 2 | 1 | ||
| GOLF VAR./VENTO | 1996-1999 | 2 | 1 | ||
| POLO CLASSIC/VARIANT | 1996-1999 | 2 | 1 | ||
| IBIZA/CORDOBA/VARIO | 1996-1999 | 2 | 1 | ||
| Golf | 1996-1997 | 2 | 1 | ||
| CADDY-KOMBI/KASTEN | 1995-2003 | 2 | 1 | ||
| INCA (SEAT-VAN) | 1995-2003 | 2 | 1 | ||
| Polo Classic 96 | 1995-1996 | 2 | 1 | ||
| Golf 96 | 1995-1996 | 2 | 1 | ||
| Golf Var./Vento 96 | 1995-1996 | 2 | 1 | ||
| Derby (MEX) | 1994-1996 | 2 | 1 | ||
| Golf Cabrio | 1994-1996 | 2 | 1 | ||
| Golf/Ecomatic 95 | 1994-1995 | 2 | 1 | ||
| Golf Var./Vento 95 | 1994-1995 | 2 | 1 | ||
| Golf/Var. syncro | 1993-1997 | 2 | 1 | ||
| Jetta GLX 94 | 1993-1994 | 2 | 1 | ||
| Ibiza/Cordoba (SEAT) | 1992-1996 | 2 | 1 | ||
| GOLF/Ecomatic | 1991-1994 | 2 | 1 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf Cabrio "USA","Mex"99>02 | 1998-2002 | 2 | 1 | ||
| POLO CLASS./PL. "ZA" | 1996-2003 | 2 | 1 | ||
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 2 | 1 | ||
| Golf Cabrio "USA","MEX"96>99 | 1995-1998 | 2 | 1 | ||
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 2 | 1 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 6K0 platform | 2 | 1 | |||
| 6K0 platform | 2 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
End Cap is fitted on: LT, LT 4X4 2003-2006; GOLF CABRIO 2002-2002; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; caddy combi./del.van 1998-2005; GOLF CABRIO 1998-2001; LT, LT 4X4 1996-2003; GOLF VAR./VENTO 1996-1999; POLO CLASSIC/VARIANT 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; Golf 1996-1997; CADDY-KOMBI/KASTEN 1995-2003; INCA (SEAT-VAN) 1995-2003; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Derby (MEX) 1994-1996; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf/Var. syncro 1993-1997; Jetta GLX 94 1993-1994; Ibiza/Cordoba (SEAT) 1992-1996; GOLF/Ecomatic 1991-1994; Golf Cabrio "USA","Mex"99>02 1998-2002; POLO CLASS./PL. "ZA" 1996-2003; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf Cabrio "USA","MEX"96>99 1995-1998; Golf/Jetta "USA","MEX"93>96 1992-1996; 6K0 platform.
