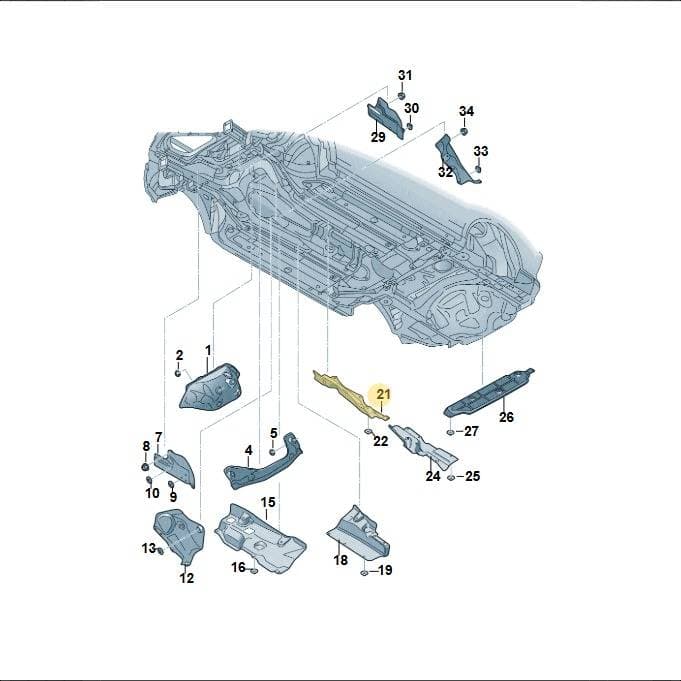

Number 21 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Tunnel Heat Shield, part number 4M0825661P. This heat shield protects the transmission tunnel area from heat generated by the exhaust and drivetrain components. It is located in the tunnel area. This part has a weight of 0.446 kg and dimensions of 0.79m x 0.345m x 0.08m. Genuine OEM heat shields are precisely engineered to withstand extreme temperatures and maintain their protective integrity over time.
Catalogue entry: HEAT SH. left.
Fitted with: N90335006 WASHER, N90335004 WASHER, N90708803 speed nut, 8K0863203 CLIP, N90570805 UT"hex. nut, self-locking with washer, 4M0825661L HEAT SH., 4M0825661N HEAT SH., 4M0825661S HEAT SH., 4M0825661Q HEAT SH., 4M0825661T HEAT SH., 4M0825662F HEAT SH., 4M0825662J HEAT SH..
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 79 × 34.5 × 8 cm
- Shipping weight
- 0.45 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0K3
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesHeat Shield For Tunnel — locate 4M0825661P Volkswagen Tunnel Heat Shield | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly46
- 1Heat Sh 4M0825621J
- 1Heat Sh 4M0825621L
- 1Heat Sh 4M0825621E
- 1Heat Sh 4M0825621H
- 1Heat Sh 4M0825621K
- 2Part N90708803
- 4Heat Sh 4M0825623E
- 4Heat Sh 4M0825623F
- 5Washer N90335004
- 7Heat Sh 4M0825642F
- 8Collar Nut N01508210
- 9Part N90714303
- 10Clip 8K0863203
- 12Heat ShLeft4M1825644E
- 12Heat ShLeft4M1825644F
- 12Heat ShRight4M2825644C
- 12Heat ShRight4M2825644D
- 15Heat ShRight4M0825662J
- 15Heat ShRight4M0825662K
- 15Heat ShRight4M0825662N
- 15Heat ShRight4M0825662Q
- 15Heat ShRight4M0825662R
- 18Heat ShLeft4M0825691F
- 18Heat ShLeft4M0825691H
- 18Heat ShLeft4M0825691K
- 18Heat ShRight4M0825692D
- 18Heat ShRight4M0825692F
- 18Heat ShRight4M0825692H
- 20Bracket 4M0825513
- 21Heat ShLeft4M0825661AK
- 21Heat Sh 4M0825661AQ
- 21Heat ShLeft4M0825661N
- 21Heat ShLeft4M0825661S
- 21Heat ShLeft4M0825661T
- 26Heat Sh 4M0825711F
- 29Heat Sh 4M0825641E
- 32Heat ShLeft4M1825643F
- 32Heat ShLeft4M1825643G
- 32Heat ShLeft4M1825643J
- 32Heat ShLeft4M1825643K
- 32Heat ShLeft4M1825643L
- 32Heat ShRight4M2825643D
- 32Heat ShRight4M2825643E
- 32Heat ShRight4M2825643G
- 32Heat ShRight4M2825643H
- 32Heat ShRight4M2825643J
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| touareg | 2017-2023 | 21 | 1 | 0K3 | |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 11 | 1 | 0K3 |
The manufacturer’s catalogue lists this part number as fitted until 14 September 2020; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
4M0825661P Volkswagen Tunnel Heat Shield | Genuine OEM is fitted on: touareg 2017-2023; Audi Q7 qu. 3.0 TDI 2015-2019.
