N10302701 Hex Collared Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

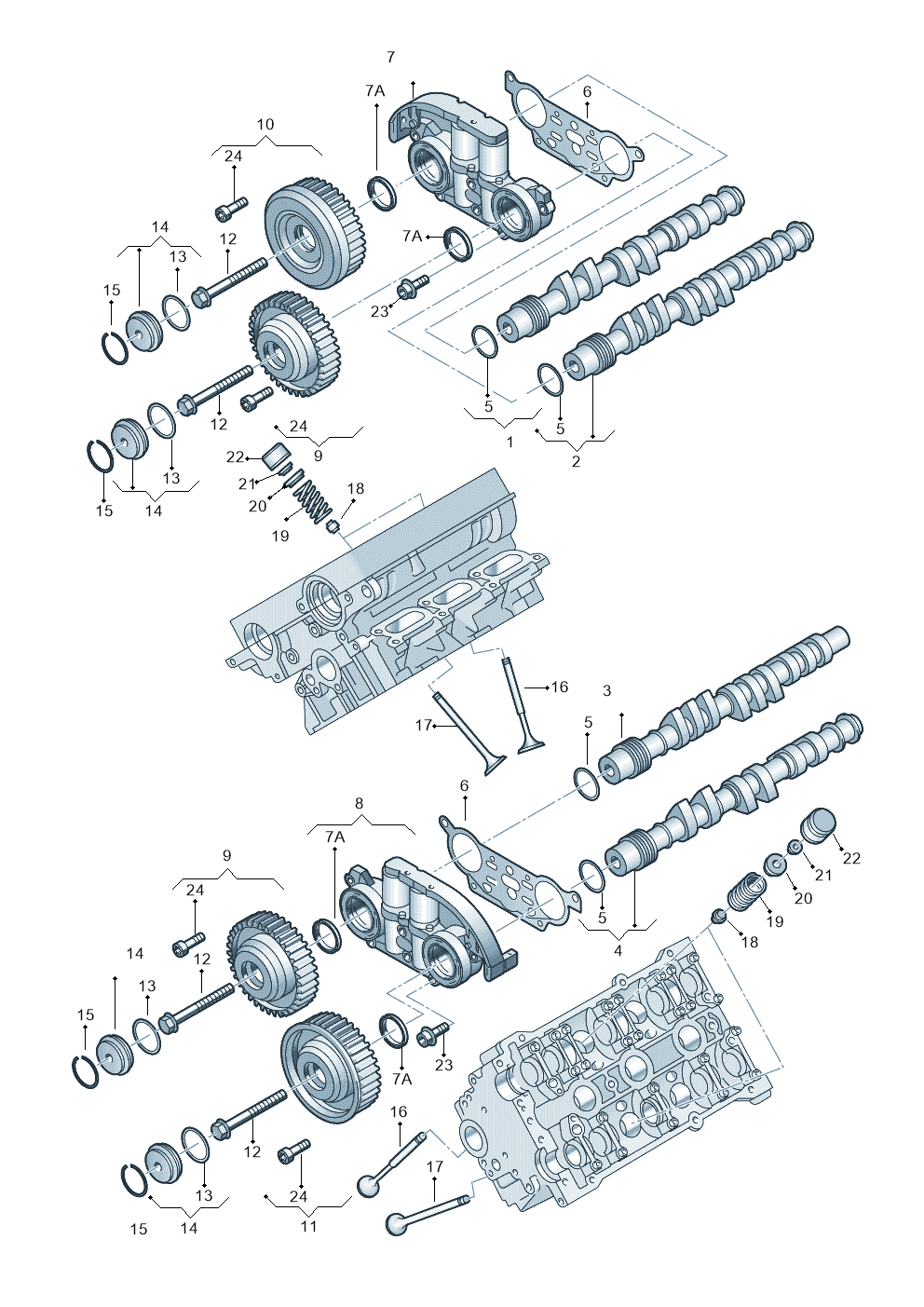

13 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly27
- 1Camshaft 06C109022G
- 2Camshaft 06C109021F
- 3Camshaft 06C109021G
- 4Camshaft 06C109022F
- 5Seal Ring 066109345A
- 6Seal 06C103121J
- 7Case 06C103108D
- 7ASeal 06C103085
- 8Case 06C103107D
- 9Adjuster 06C109083D
- 10Adjuster 06C109083P
- 11Adjuster 06C109083M
- 13Seal Ring N90969401
- 14Cover 06C109144
- 15Circlip N90980401
- 16Valve 058109611M
- 17Valve 058109601C
- 18Seal 036109675A
- 19Spring 058109633
- 19Spring 078109623B
- 20Springseat 058109641B
- 20Springseat 058109641
- 21Cotter Pin 036109651A
- 22Tappets 058109309E
- 22Tappets 058109309F
- 23Screw N10190701
- 24Screw WHT003121
Vehicle fitment table13
Europe (10)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A4/S4/Av./qu. 05> | 2005- | 12 | 4 | D7A |
| Audi A6/S6/Avant/qu. 05> | 2004- | 12 | 4 | D7A |
| Audi A8/S8/qu. lang | 2003-2007 | 12 | 4 | D2H,D7A |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 12 | 4 | D2H,D7A |
| Audi A4/S4/Av./qu. | 2001-2004 | 12 | 4 | D2H,D7A |
| Audi A6/Wagon/quattro | 2001-2004 | 12 | 4 | D2H,D7A |
| Audi A8 quattro | 1999-2002 | 11 | 2 | |
| AUDI A8 | 1998-2002 | 11 | 2 | |
| Audi A8 | 1996-1998 | 11 | 2 | |
| Audi A8 qu. | 1996-1998 | 11 | 2 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 12 | 4 | |
| AUDI A4 "CN."06> | 2005- | 12 | 4 | |
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 12 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: Audi A4/S4/Av./qu. 05> 2005-; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007; Audi A4/S4 Cabrio./qu. 2002-2006; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Audi A8 quattro 1999-2002; AUDI A8 1998-2002; Audi A8 1996-1998; Audi A8 qu. 1996-1998; AUDI A6L "CN"05> 2005-; AUDI A4 "CN."06> 2005-; AUDI A4/AV./QU. "CN"03>05 2003-2005.
